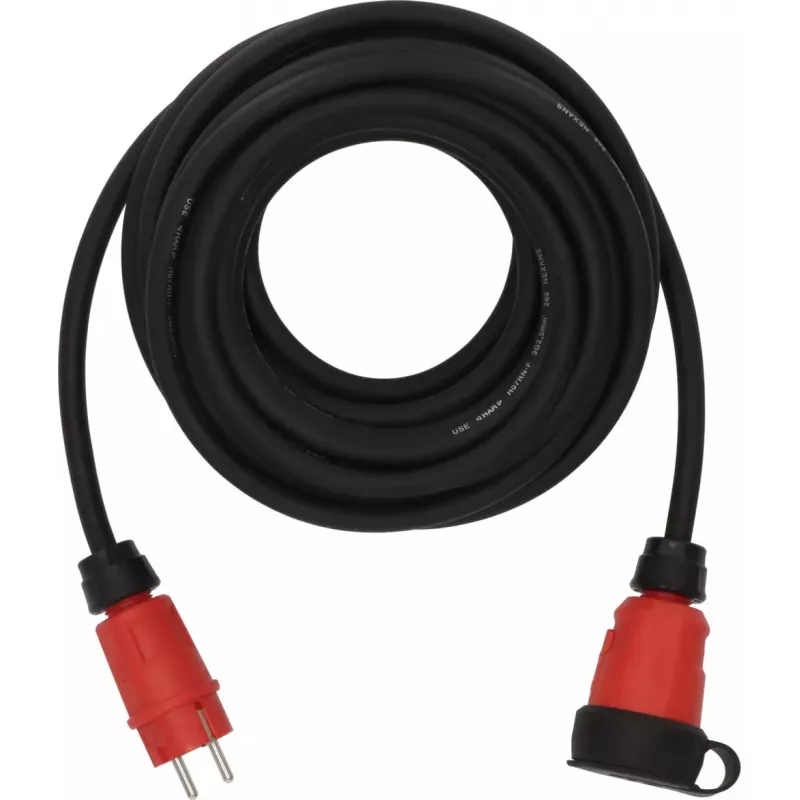

Alargador de corriente Brennenstuhl 9162100110 10m 1 salida AC Interior/Exterior Negro Rojo

The Brennenstuhl 9162100110 Power Extension is a robust 10 m extension cable designed for indoor and outdoor use. Constructed with H07RN-F 3G2.5 rubber cable, the lead is oil-resistant, abrasion- and tear-resistant, and suitable for demanding professional environments including construction sites in accordance with DGUV 203-006 (formerly BGI 608). The extension lead has one AC outlet, a straight earthing contact plug and a reinforced socket with sealing cap and cable gland. The product is black with red accents, rated for 250 V and protected to IP44 against foreign bodies and splash water.

Advantages

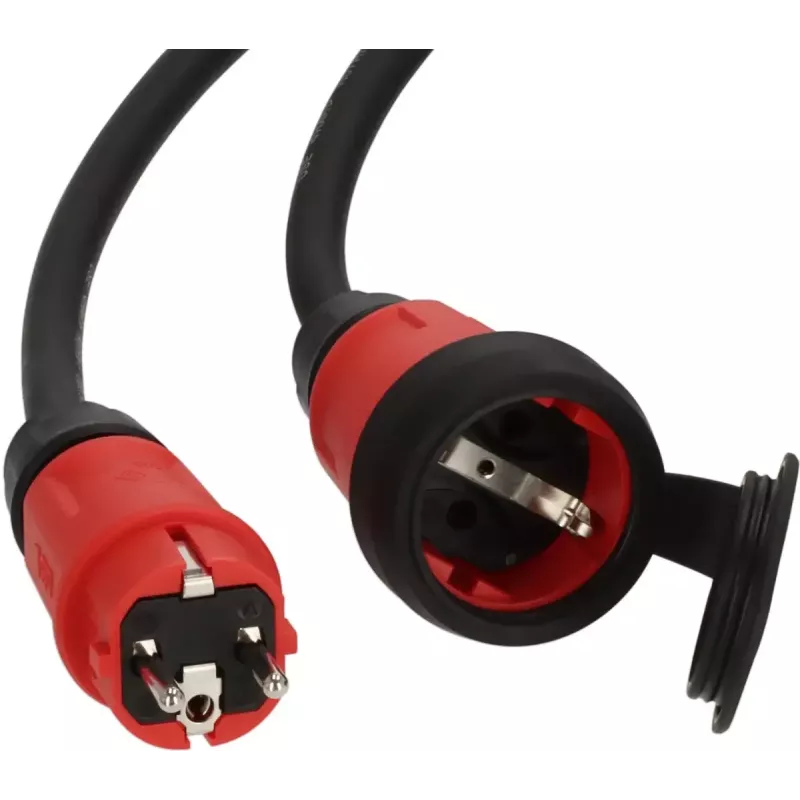

The cable core (H07RN-F 3G2.5) offers high mechanical strength with extreme cut, tear and abrasion resistance and good oil resistance. The earthing contact plug and socket are extra sturdy, UV-resistant and equipped with bend protection. The socket includes a sealing cap and cable sealing to increase weather resistance for permanent outdoor use. Compact dimensions (220 mm width, 70 mm height) and a 10 m length provide flexibility while the extension remains portable at 2.26 kg.

Suitable for

• Temporary and permanent outdoor power supply on construction sites
• Professional workshops and maintenance work with exposure to oils and mechanical stress
• Garden and outdoor events requiring a splash-protected power feed
• Indoor use where a durable, heavy-duty extension lead is needed

Key specifications

• Brand: Brennenstuhl, Model: 9162100110
• Cable type: H07RN-F 3G2.5 (rubber, oil-resistant)
• Length: 10 m
• Outlets: 1 AC outlet
• Rated voltage: 250 V
• Protection rating: IP44 (protected against solid objects and splashes)
• Dimensions: 220 mm (width) x 70 mm (height)
• Weight: 2.26 kg
• Color: Black with red accents

How to use

Connect the straight earthing contact plug to a properly grounded 230–250 V socket. Unwind the 10 m cable fully to avoid overheating and position the socket with the sealing cap closed when not in use for additional protection. Plug devices into the single AC outlet and ensure the load does not exceed the device’s rated current. After use, disconnect from the mains, dry the socket if wet, close the sealing cap and store the extension in a dry, protected place.

Recommendations

Use the Brennenstuhl 9162100110 extension only with properly grounded installations and avoid continuous exposure to high mechanical stress beyond typical site conditions. Regularly inspect the cable and connectors for damage and replace if the insulation or contacts are compromised.
