Alargador de corriente helos 262659 IEC 60320 C13 a C14 250V 1m

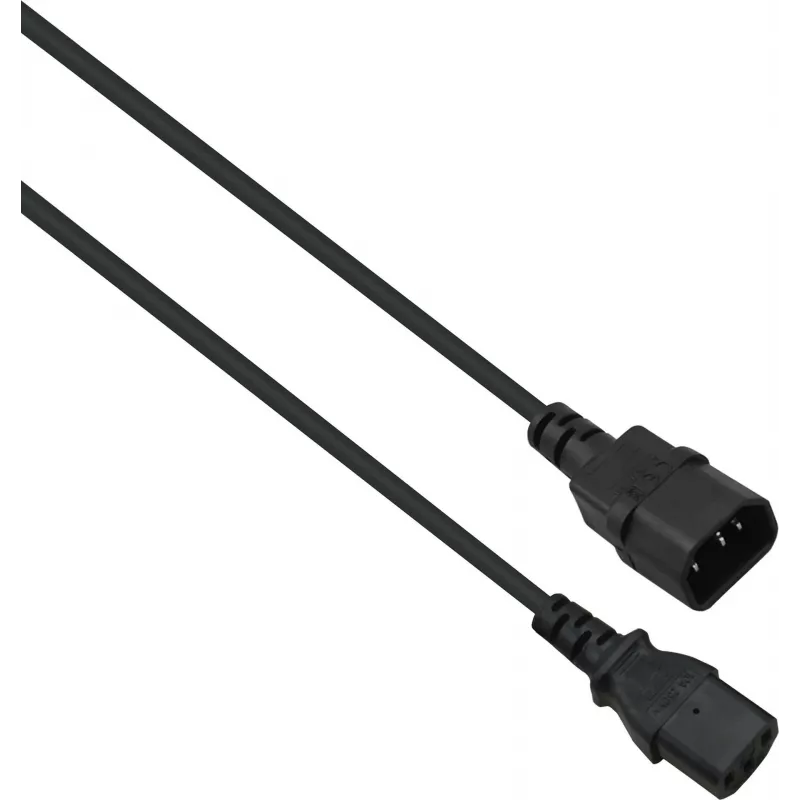

Power extension cable helos model 262659 is a 1 m mains extension with IEC 60320 C13 (female) to IEC 60320 C14 (male) connectors. It is rated for 250 V and 10 A and uses H05VV-F 3G 0.75 mm² flexible cable construction in black, providing a standard PSU connection for servers, UPS units, desktop computers and other equipment with C13/C14 inlets.

Advantages

The cable provides a straightforward, standardized way to extend an existing IEC power connection without changing power characteristics. Its H05VV-F 3G 0.75 mm² conductors offer flexible routing for installations in racks, cabinets or desktop setups while meeting common safety markings (VDE, RoHS2, IEC 60320). The 1 m length balances reach and cable management in most IT and office environments.

Suitable for

• Extending mains connection between power supplies and equipment with C13/C14 interfaces
• Servers, rack-mounted equipment and UPS systems in data centers and server rooms
• Desktop PCs, monitors and office electronics using IEC C13 inlets
• Temporary or permanent cable routing where a 1 m extension is sufficient

When it may not be suitable

This extension cable is not designed for loads above its rated 10 A or for voltages exceeding 250 V. It is intended for standard IEC C13/C14 mains interfaces and will not fit proprietary connectors or appliance-specific plugs. For environments requiring higher current capacity, specialized power leads or hardwired connections should be used.

Key specifications

• Connector A: IEC 60320 C13 (female)
• Connector B: IEC 60320 C14 (male)
• Rated voltage: 250 V
• Rated current: 10 A
• Cable type: H05VV-F 3G 0.75 mm²
• Length: 1 m
• Color: Black
• Standards and markings: VDE, RoHS2, IEC 60320

How to use

Insert the C14 male connector into the corresponding C14 inlet of the power source (for example a UPS or PDU) and connect the C13 female end to the device requiring power. Ensure secure seating of both connectors and avoid sharp bends or compression of the cable. Do not exceed the marked current and voltage ratings and route the cable to minimise mechanical stress and tripping hazards.

What to consider before purchase

• Confirm your equipment uses IEC 60320 C13/C14 connectors
• Verify that 1 m length and 10 A current rating meet your installation and power requirements
• Check whether you need a different cable type or higher current capacity for specific equipment

Recommendations

Use this helos extension cable for standard IT and office power connections where a short, reliable IEC C13 to C14 extension is required; inspect connectors periodically for wear and replace the cable if damage is observed.
