Alicates pelacables EFB Elektronik 39956.1

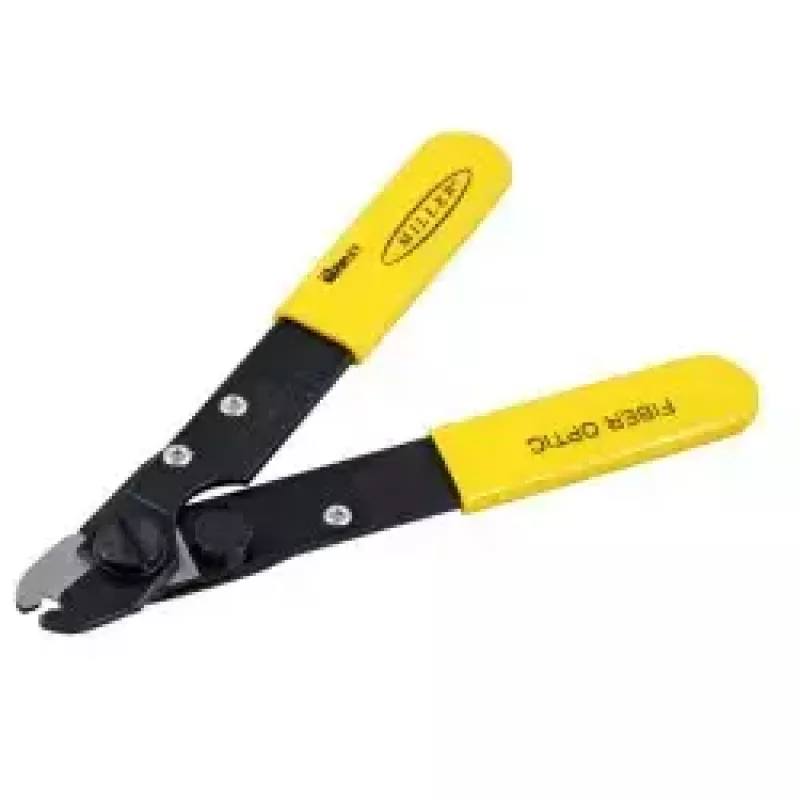

The EFB Elektronik 39956.1 cable stripper is a compact hand tool for precise removal of primary fiber coating from 250 μm to 125 μm. It features a factory-set 127 μm V-notch that requires no adjustment, and its length of 137 mm with a weight of 71 g makes it easy to handle and store. The tool’s black-and-yellow finish improves visibility during use and identifies the product as a dedicated fiber stripping instrument.

Advantages

Precision-made 127 μm V-notch eliminates the need for user adjustment and ensures repeatable, reliable stripping of primary coatings. Compact dimensions and low weight provide comfortable handling and portability. The construction is suitable for professional and hobby use where accurate fiber preparation is required.

Suitable for

• Stripping primary fiber coating from 250 μm to 125 μm
• Field and workshop fiber optic preparation
• Telecommunications and network installation tasks

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 39956.1
• EAN: 4049759079260
• Stripping range (primary coating): 250 μm – 125 μm
• V-notch size: 127 μm (pre-set, no adjustment required)
• Length: 137 mm
• Weight: 71 g

How to use

Place the fiber into the 127 μm V-notch, align the desired coating section with the cutting point, and apply light, steady pressure while drawing the tool along the fiber to remove the primary coating. Because the V-notch is pre-set, no calibration is needed; verify the result visually and repeat if necessary to achieve the required exposed fiber length.

Recommendations

Use appropriate eye protection and handle stripped fibers with care. Dispose of removed coating material and fiber scraps according to local regulations. For optimal results, operate the tool on clean, undamaged fiber and avoid excessive force that could nick the glass.
