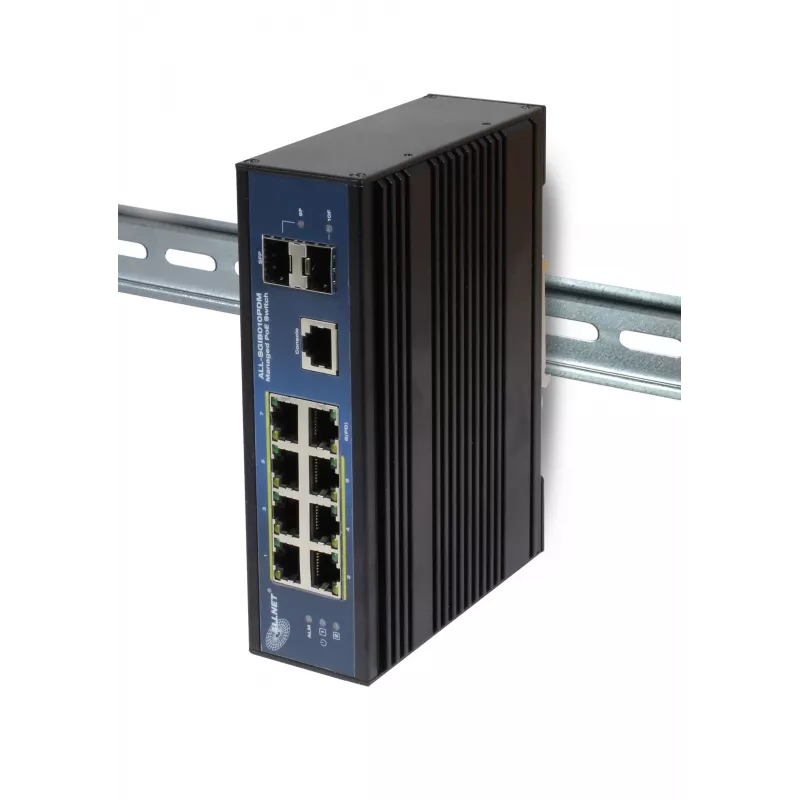

ALLNET ALL-SGI8010PDM switch industrial gestionado Layer2+ 10 puertos Gigabit PoE, 7x PoE+ 2x SFP 1x PD, sin ventilador IP40

Industrial networks often face harsh conditions, limited space, and the need to power multiple devices over Ethernet. The ALLNET ALL-SGI8010PDM is a fully managed Layer2+ industrial switch that delivers reliable connectivity and PoE power in a compact, fanless design.

Who is it for

This switch is built for system integrators, factory automation engineers, and IT professionals who need a rugged, DIN-rail mountable switch with advanced management features and flexible PoE options.

Main features

• 10 Gigabit ports: 7x PoE+ (IEEE 802.3at), 2x SFP slots, 1x Gigabit PD (powered device) input
• Dual PoE power budget: 69W when powered via PoE BT input, 210W when powered via DC terminal block
• Full Layer2+ management: Web GUI, CLI, SNMP, VLAN, QoS, IGMP snooping, STP/RSTP
• Fanless cooling for silent operation and reduced maintenance
• IP40-rated metal housing for protection against dust and debris
• DIN-rail mountable for easy installation in control cabinets

Specifications

• Total ports: 10 (8x RJ45 Gigabit, 2x SFP)
• PoE+ ports: 7 (IEEE 802.3af/at, up to 30W per port)
• PoE power input: 1x Gigabit PD (IEEE 802.3bt compatible)
• SFP slots: 2x Gigabit (100/1000Base-X)
• PoE budget: 69W (BT input) / 210W (DC input)
• Management: Full managed, Layer2+
• Cooling: Fanless
• Ingress protection: IP40
• Mounting: DIN rail
• Power input: DC terminal block, PoE PD
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at

Tips

For maximum PoE budget, connect a 48-57V DC power supply to the terminal block. Use the SFP slots for fiber uplinks to extend network reach beyond copper limits.
