ALLNET ANT-CAB-RSMA-N-F-300-P cable coaxial LMR-195, conector macho R-SMA a conector hembra N, 3 m, negro

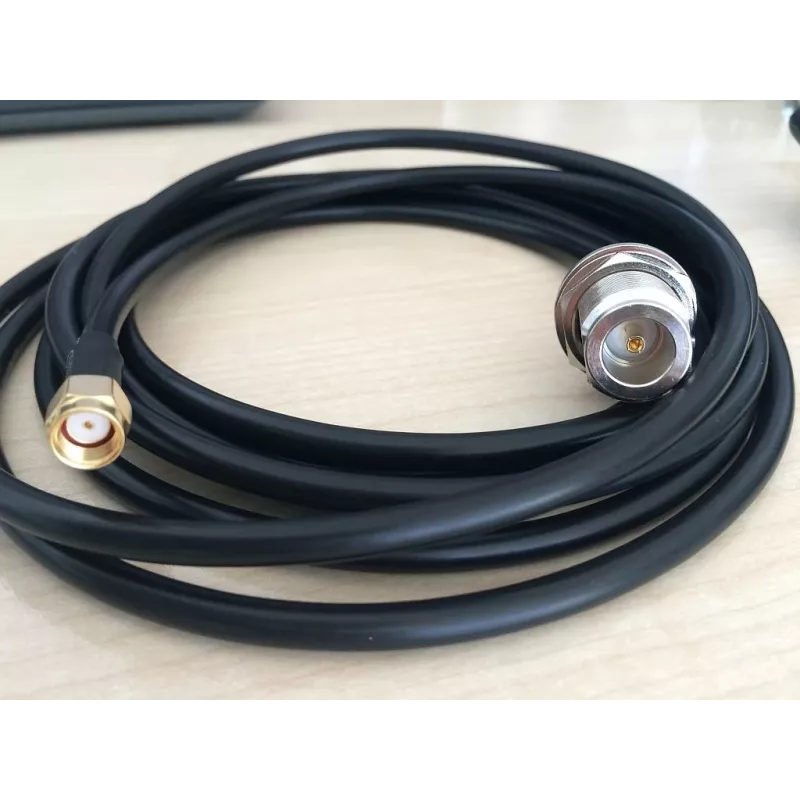

The ALLNET ANT-CAB-RSMA-N-F-300-P is a high-quality LMR-195 coaxial cable assembly designed for reliable RF signal transmission in Wi-Fi, WLAN, cellular, GPS, and other communication systems. Featuring a Reverse SMA Male to N-Type Female connector configuration, this 3-meter cable ensures low loss and excellent shielding for demanding applications.

Advantages

This cable offers superior performance with double shielding (bonded aluminum foil and tinned copper braid) to minimize interference. The solid bare copper inner conductor and foam polyethylene dielectric provide low attenuation and consistent impedance. Gold-plated R-SMA connector and nickel-plated N-Type connector ensure corrosion resistance and reliable connections.

Suitable for

• Wi-Fi and WLAN antenna connections
• Cellular and GPS systems
• RF communication equipment
• Test and measurement setups

Key specifications

• Cable Type: LMR-195 Coaxial
• Connector 1: R-SMA Male (Reverse SMA Male)
• Connector 2: N-Type Female
• Length: 300 cm (3 meters)
• Impedance: 50 Ohm
• Frequency Range: DC to 6 GHz
• Attenuation @ 2.4 GHz: ~0.5 dB/m
• Attenuation @ 5.8 GHz: ~0.8 dB/m
• VSWR: < 1.5:1
• Jacket Material: PVC
• Outer Diameter: 4.95 mm
• Operating Temperature: -40°C to +85°C

Recommendations

For optimal performance, ensure connectors are properly tightened and avoid sharp bends. This cable is ideal for indoor use; for outdoor installations, consider additional weatherproofing.
