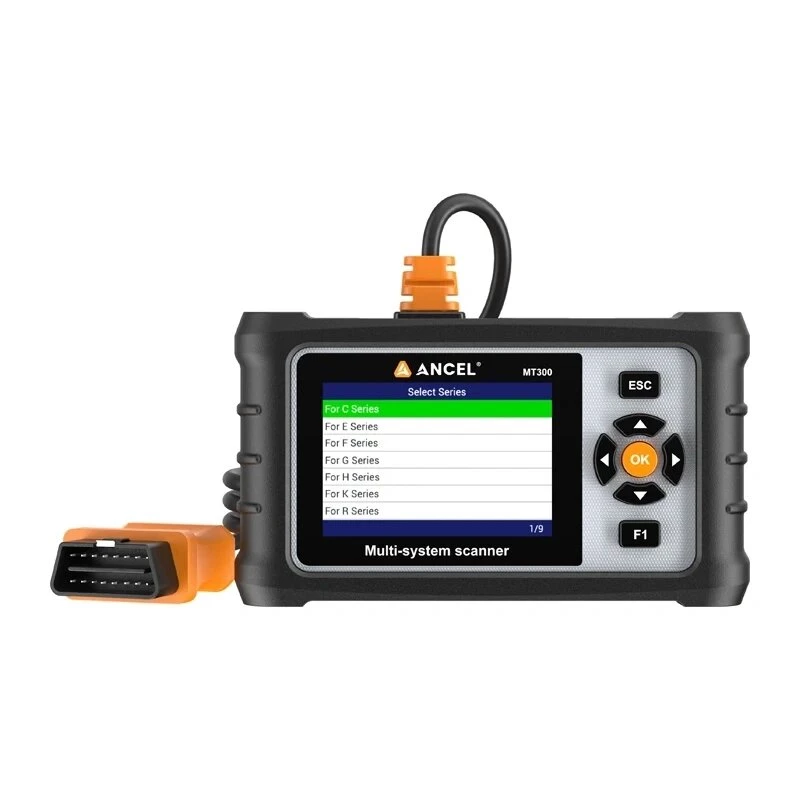

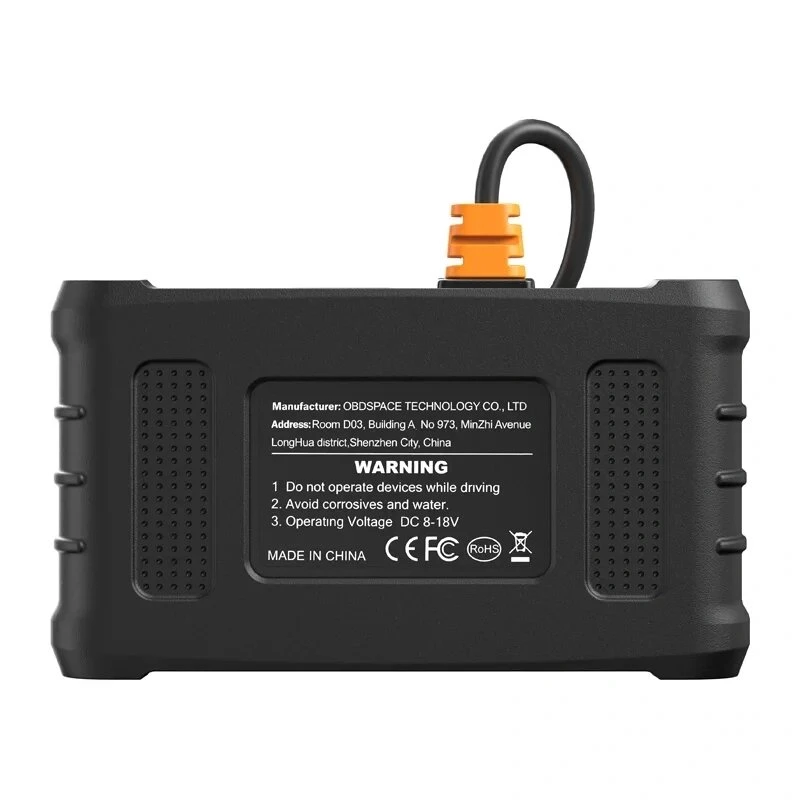

ANCEL MT300 Escáner de diagnóstico para motocicletas BMW

The ANCEL MT300 BMW is a motorcycle diagnostic scanner designed for BMW motorcycles, featuring a 3.5-inch color TFT display. It allows you to diagnose motorcycle systems, read and clear error codes, and view the data stream. It also supports the OBDII standard and protocols CAN, J1850 PWM, J1850 VPW, ISO9141, and KWP2000.

Key features

• Designed for BMW motorcycles
• 3.5-inch color TFT display (320×480 px)
• Diagnose motorcycle systems, read and clear error codes, view data stream
• Supports OBDII standard and protocols CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000
• Scan systems such as DME, ABS, KOMBI, SME, ESA2, GM, and AUDIO
• Auto VIN search feature
• OBDII functions: reading and clearing codes, I/M readiness, data stream, status dump, O2 sensor test, on-board monitoring, evaporative system test
• Service menu with special functions such as oil and ETC reset, ABS bleeding
• Wi-Fi connectivity

Specifications

• Brand: Ancel
• MPN: MT300 BMW
• Device type: Motorcycle diagnostic scanner
• Intended use: BMW motorcycles
• Display: 3.5" color TFT display (320×480 px)
• Connectivity: Wi-Fi
• Power supply voltage: 8–18 V DC
• Operating voltage: 12 V DC
• Operating System: ARM
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -20°C to 70°C
• Supported OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141, KWP2000
• Dimensions: 170.6 × 96.86 × 32.6 mm
