Antena direccional MIMO Poynting A-MIMO-0004-V1-15-B SMA, 21 dBi, 0,617–7,2 GHz

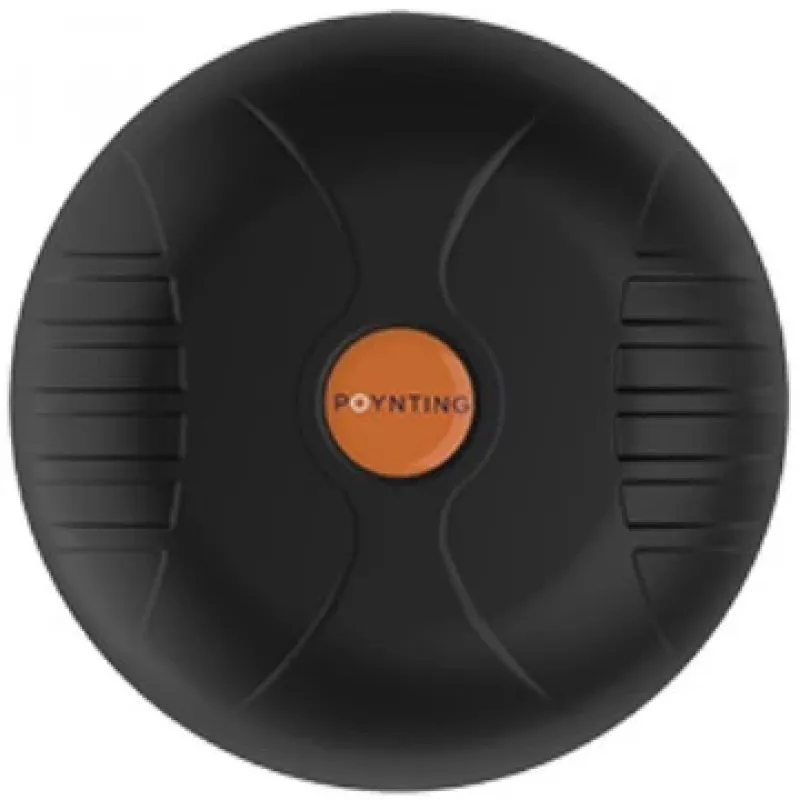

Poynting A-MIMO-0004-V1-15-B is a directional MIMO network antenna offering integrated multi-band capability in a compact black housing. The 5-in-1 design combines two cellular elements, two dual-band Wi‑Fi elements and a GPS/GLONASS element to provide concurrent coverage from 0.617 to 7.2 GHz with a maximum gain of 21 dBi. The antenna uses SMA connectors, a 50 Ω impedance and is intended for directional cellular and Wi‑Fi installations in transportation, marine and industrial M2M/IoT environments. The housing is compact and rugged, designed to withstand demanding conditions while minimising footprint and installation complexity.

Advantages

The integrated 5-in-1 arrangement reduces the need for multiple separate antennas by delivering cellular 2x2 MIMO, Wi‑Fi 2x2 MIMO and GNSS in a single unit, simplifying installation and cabling. Ultra-wideband cellular coverage (617–6000 MHz) and extended Wi‑Fi support (2.4 GHz and 5–7.2 GHz) provide broad operator and technology compatibility, including contemporary LTE/4G and 5G use up to 6 GHz. The antenna’s radiation patterns balance omni‑directional coverage and pattern diversity to improve link stability in mobile and marine contexts. Compact size, robust construction and compliance with CE and RoHS make it suitable for commercial, industrial and transport deployments.

Suitable for

• On‑vehicle installations for commercial and industrial fleets
• Marine antennas for boats and vessels requiring cellular, Wi‑Fi and GNSS
• M2M and IoT gateways needing multi‑band cellular and dual‑band Wi‑Fi
• Temporary or fixed directional links that require high gain and MIMO

Key specifications

• Frequency range: 0.617–7.2 GHz (cellular and Wi‑Fi elements within this span)
• Maximum gain: 21 dBi
• Configuration: 5‑in‑1 (2 cellular elements, 2 Wi‑Fi elements, 1 GNSS element)
• Impedance: 50 Ω
• Connectors: SMA
• Power: DC input supported (2.7–3.3 V input range), maximum consumption up to 50 W

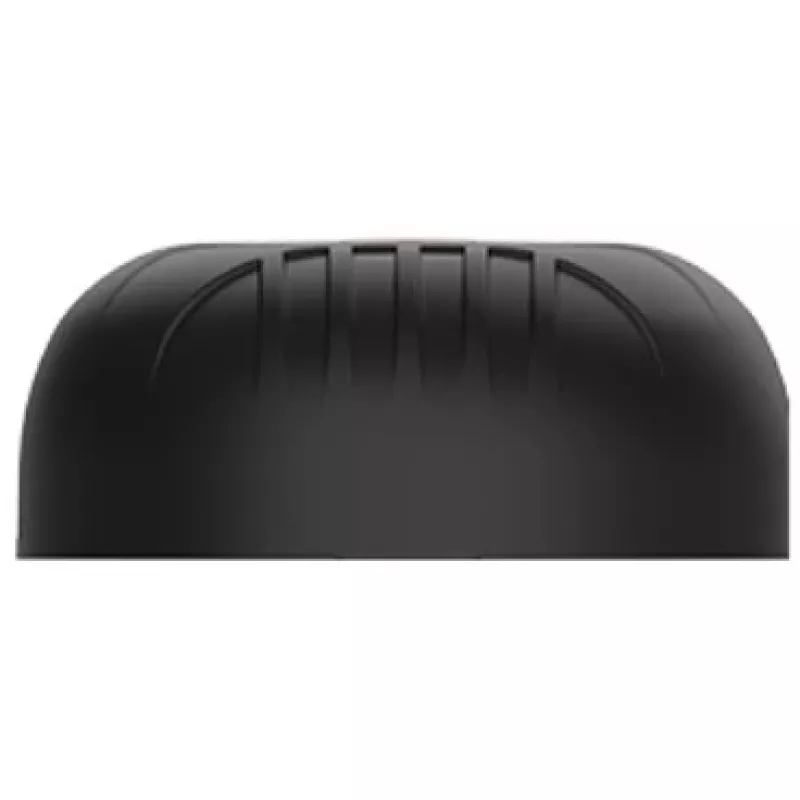

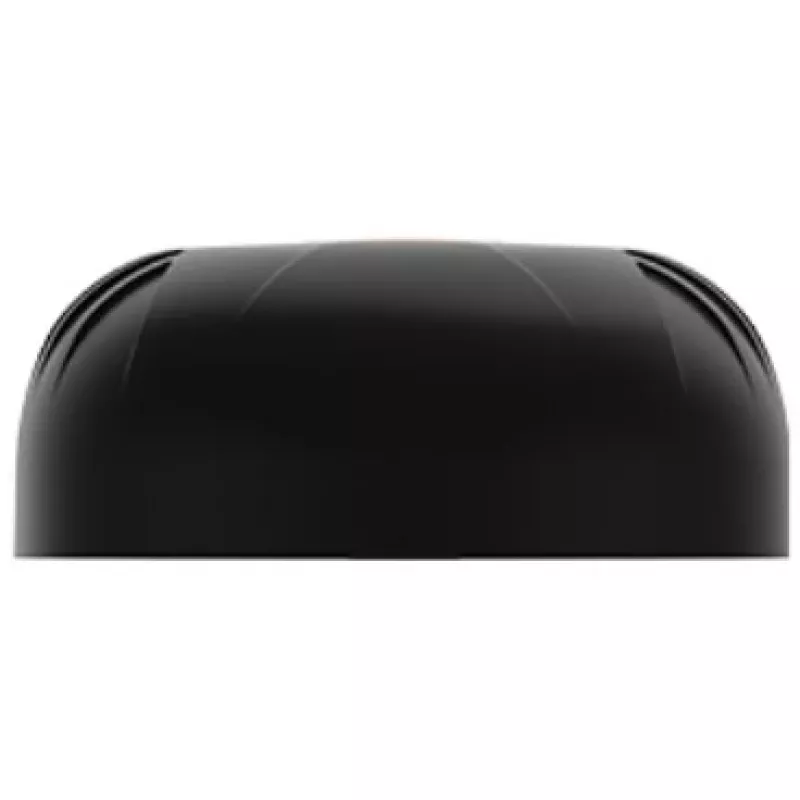

• Housing: compact black enclosure — height approx. 65 mm, diameter approx. 160 mm, weight approx. 740 g
• Environmental: weather resistant design suitable for transport and marine use; CE and RoHS compliant

How to use

Mount the antenna in a suitable elevated and unobstructed position on the vehicle or vessel where directional coverage toward the target cell tower or access point can be achieved. Connect each SMA cable to the corresponding modem, router or Wi‑Fi device ports according to the device manufacturer’s wiring diagram for MIMO and GNSS. Ensure the DC power supply is within the specified input range and that cable runs use 50 Ω coaxial cable where required. Tighten SMA connectors to avoid ingress and check grounding and sealing on mounts if used in marine or exposed environments.

Recommendations

For best performance, align the antenna toward the primary signal source, minimise nearby metallic obstructions and use quality 50 Ω cabling with appropriate ferrite suppression. Periodically inspect seals and connections for corrosion in marine environments and verify antenna placement when changing operators or frequency bands to maintain optimal MIMO performance.
