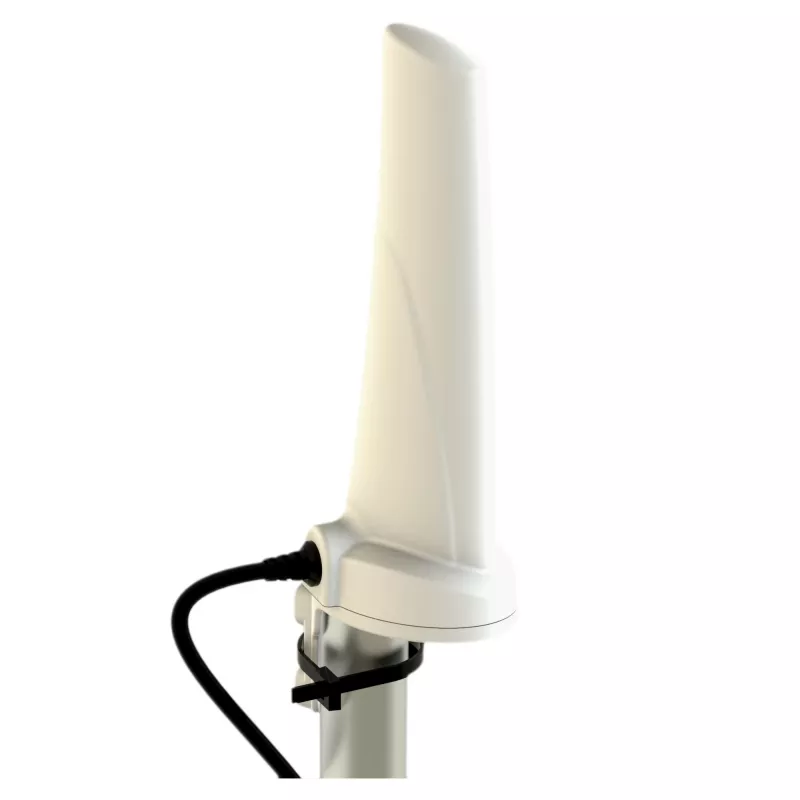

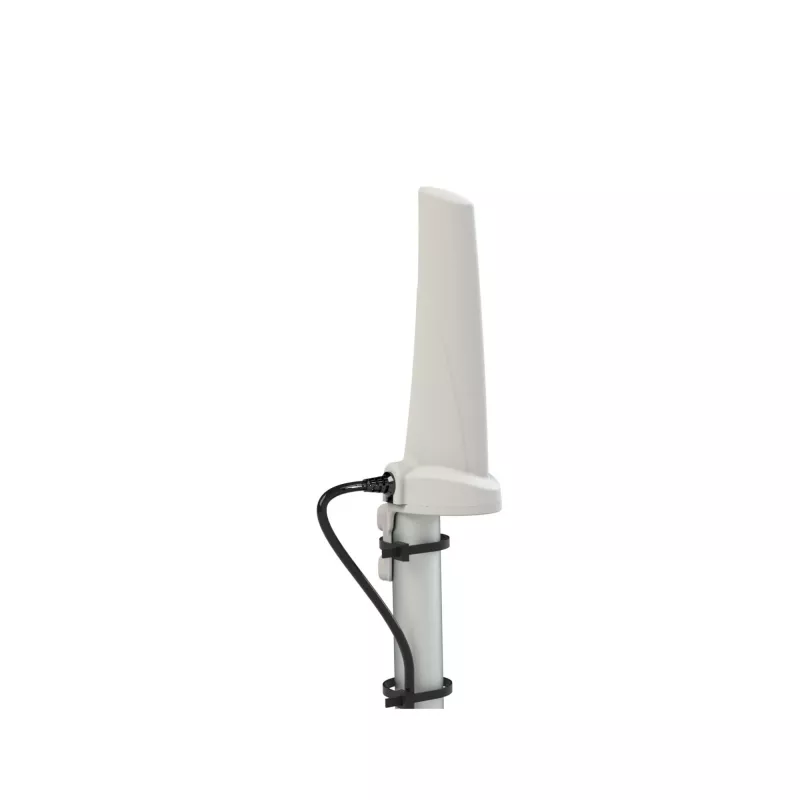

Antena LTE omnidireccional Poynting A-OMNI-0280-08-V1 4 dBi, SISO, cable de 2 m

Poynting A-OMNI-0280-08-V1 is an omni-directional LTE antenna with 4 dBi gain designed for single-input (SISO) installations. The antenna is compact and weather-resistant, supplied with a 2 m cable for straightforward connection to compatible routers, modems or external radio devices. Its omni-directional pattern provides uniform reception from all horizontal directions, making it suitable for locations where signal direction is unknown or variable.

Advantages

The antenna offers consistent 4 dBi gain across LTE frequency bands relevant to mobile data, improving signal stability and throughput for single-antenna devices. Its omni-directional radiation pattern reduces the need for precise alignment and simplifies installation. Supplied with a 2 m cable, the unit supports quick deployment and flexible placement for optimal reception. The compact housing is designed for external use and minimal visual impact.

Suitable for

• Home and small office LTE routers and modems
• Vehicles and mobile workstations requiring external LTE reception
• Remote sites and temporary installations with single-antenna equipment
• Locations where signal direction is variable or unknown

Key specifications

• Antenna type: omni-directional
• Gain: 4 dBi
• Configuration: SISO (single input, single output)
• Cable length: 2 m
• Mounting: compact external housing suitable for wall or mast mounting
• Frequency coverage: LTE frequency bands (multi-band coverage for mobile broadband)
• Connector: cable terminated for direct connection to single-input equipment

How to use

Mount the antenna externally on a wall, mast or vehicle roof where clear line-of-sight toward surrounding base stations is available. Route the supplied 2 m cable to the modem or router and attach the connector to the device's external antenna port. For best results, place the antenna as high as practical and clear of large metal obstructions. No additional configuration is required on the connected device beyond selecting the external antenna input if applicable.

Recommendations

Place the antenna in an elevated position and avoid close proximity to large metal surfaces or dense obstacles. Use the provided 2 m cable for flexible placement; if a longer run is needed, use low-loss coaxial cable and maintain proper connector quality to minimise signal loss.
