Antena omnidireccional MikroTik TOF-2400-8V-4

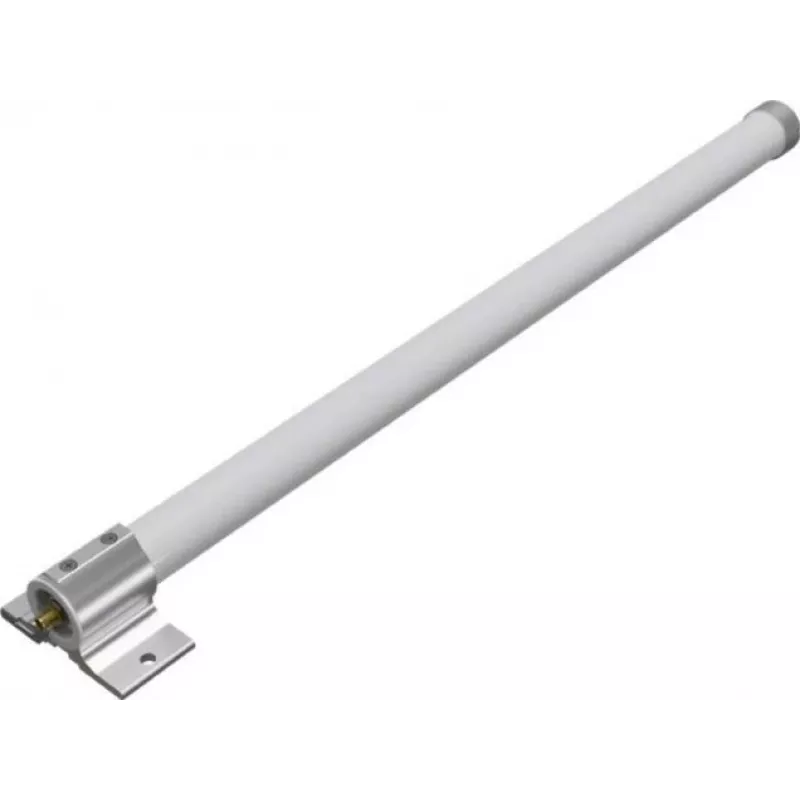

Omni-directional antenna MikroTik TOF-2400-8V-4 is an 8 dBi antenna for the 2.4 GHz band (0.240–0.250 GHz) designed to extend wireless coverage for devices such as wAP LR2 kits or other 2.4 GHz equipment. The compact, durable antenna includes a 1 m SMA cable and a mechanical mast holder for easy attachment, supporting both LoRa 2.4 GHz and regular 2.4 GHz WLAN use when additional range (up to 3–4 km line-of-sight in suitable conditions) is needed.

Advantages

The TOF-2400-8V-4 provides an omni-directional radiation pattern with 8 dBi gain to improve coverage without requiring precise alignment. Its 50 Ω SMA connector and included 1 m SMA cable simplify installation, while the mechanical mast mount enables quick and secure attachment. The antenna’s compact dimensions and durable construction make it suitable for outdoor deployments where increased range and reliability are required.

Suitable for

• Extending coverage for wAP LR2 kits and similar 2.4 GHz gateway devices
• Improving 2.4 GHz LoRa links requiring wider area coverage
• Enhancing regular 2.4 GHz WLAN coverage in outdoor or semi-outdoor environments
• Use with any compatible 2.4 GHz device that accepts an SMA connector

Key specifications

• Gain: 8 dBi
• Frequency band: 0.240–0.250 GHz (2.4 GHz band)
• Impedance: 50 Ω
• Connector: SMA
• Dimensions: 25 mm (W) × 25 mm (H) × 550 mm (D)
• Weight: 0.6 kg
• Included accessories: 1 m SMA cable, mechanical mast holder

How to use

Mount the antenna on a mast or pole using the supplied mechanical holder and connect it to your 2.4 GHz device via the SMA cable. Position the antenna as high and clear of obstructions as possible to maximize line-of-sight range. Ensure the connector is tightened and weatherproofed as needed for outdoor installations. No specific orientation is required due to the omni-directional pattern, but a stable mount improves performance consistency.

Recommendations

For best results, install the antenna outdoors on a sturdy mast and keep it free from nearby large metal objects. Verify device compatibility with a 50 Ω SMA connector and consider local regulations regarding antenna gain and outdoor installations.
