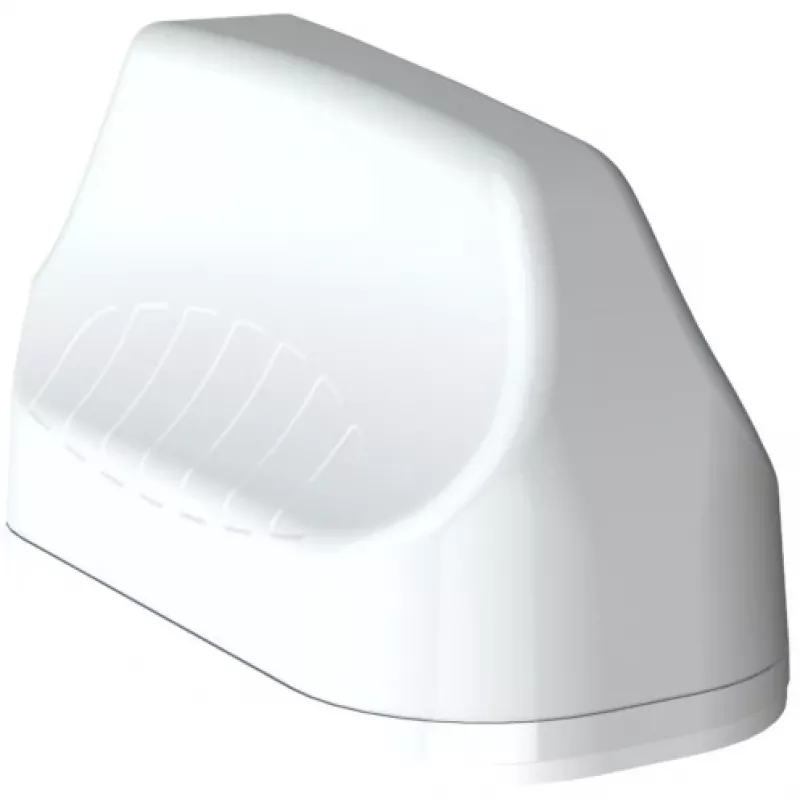

Antena direccional MIMO Poynting MIMO-0003-V2-15 5,8 dBi SMB

The Poynting MIMO-0003-V2-15 is a compact 5-in-1 directional antenna combining two cellular MIMO elements, two dual-band Wi‑Fi elements and a GPS/GLONASS receiver in a single weatherproof housing. It supports wide cellular bands from 450 MHz up to 3.8 GHz (including 690–2700 MHz commonly used for 2G/3G/4G and emerging LTE/5G bands), concurrent 2.4 GHz and 5 GHz Wi‑Fi with 2×2 MIMO capability, and a high-performance active GPS/GLONASS element designed for harsh environments. The antenna is intended for transportation, marine, M2M and industrial IoT applications where multi‑technology connectivity and broad frequency coverage are required.

Advantages

The antenna’s wideband cellular coverage and support for emerging LTE/5G bands make it compatible with multiple operators and future technologies. Integrated dual 2×2 MIMO Wi‑Fi elements deliver concurrent 2.4/5 GHz operation for improved wireless throughput. The active GPS/GLONASS receiver provides reliable positioning performance in low-temperature conditions. Compact, weatherproof construction and carefully designed radiation patterns balance omnidirectionality and elevation gain for stable performance on vehicles and marine vessels.

Suitable for

• Commercial and industrial vehicles (fleet, buses, trucks)
• Marine vessels and maritime communication
• M2M and IoT installations requiring cellular and Wi‑Fi connectivity
• Applications needing GPS/GLONASS positioning alongside data links

Key specifications

• Model: Poynting MIMO-0003-V2-15 (A-MIMO-0003-V2-15)
• Functions: 2× Cellular MIMO + 2× Wi‑Fi (dual-band) + GPS/GLONASS
• Cellular frequency coverage: approx. 450 MHz to 3.8 GHz (includes 690–2700 MHz bands and CBRS/3.5 GHz)
• Wi‑Fi frequency band: 2.4–2.5 GHz and 5–6 GHz
• Wi‑Fi gain (max): 5.8 dBi
• Connector type (Wi‑Fi): SMB male
• Weight: 1.36 kg
• Colour: White

How to use

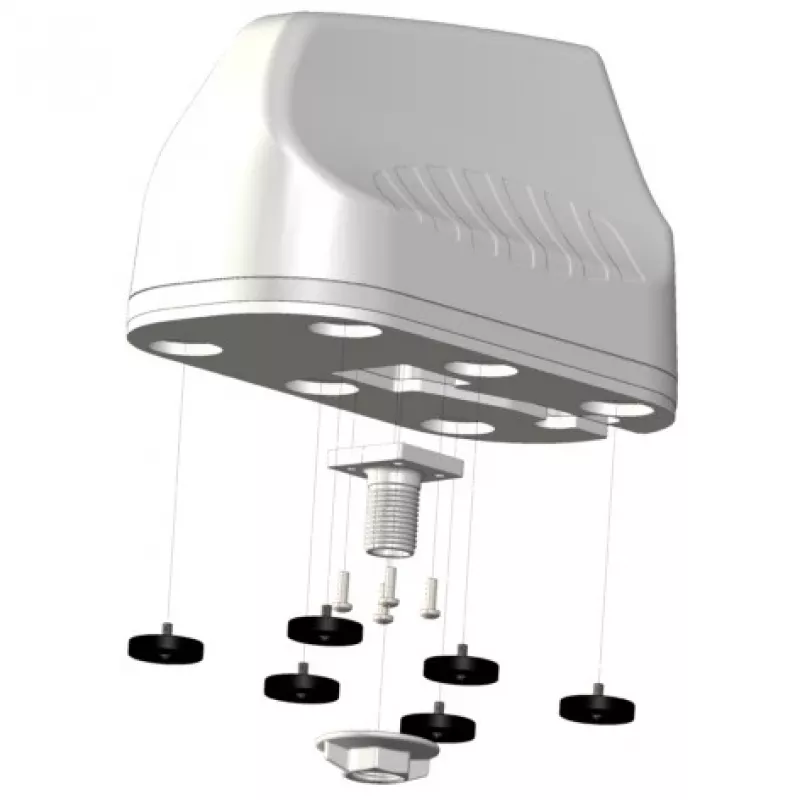

Mount the antenna on a suitable exterior surface of the vehicle or vessel ensuring a clear surrounding area for optimal omnidirectional performance. Connect the cellular, Wi‑Fi and GPS cables to the corresponding modem, router or receiver using the provided connectors (SMB for Wi‑Fi). Route cables to avoid sharp bends and secure them with appropriate clamps. After installation, verify cellular and Wi‑Fi links and confirm GPS lock under open sky conditions.

Recommendations

For best results, install the antenna as high as practical and maintain clear line-of-sight above the mounting surface. Avoid placing large metal objects immediately adjacent to the antenna. Use weatherproof cable glands and follow vehicle or vessel grounding practices for safety and optimal performance.
