Antena parabólica CORAB 80 cm Light (ASC-800TA-J)

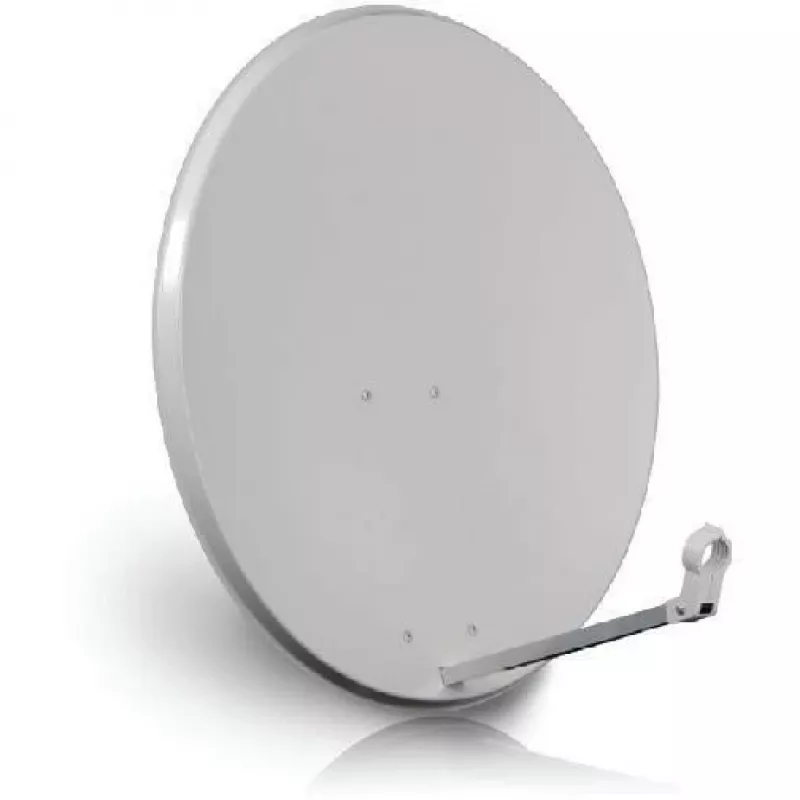

The CORAB Antenna Dish 80 cm Light (ASC-800TA-J) is a high-quality offset satellite dish designed for reliable Ku-band reception. Manufactured from galvanized steel with a durable polyester powder coating, this dish offers excellent performance and longevity. With an 80 cm diameter and effective dimensions of 750 x 800 mm, it provides a gain of 38.5 - 40.5 dB, ensuring strong signal capture even in challenging conditions.

Advantages

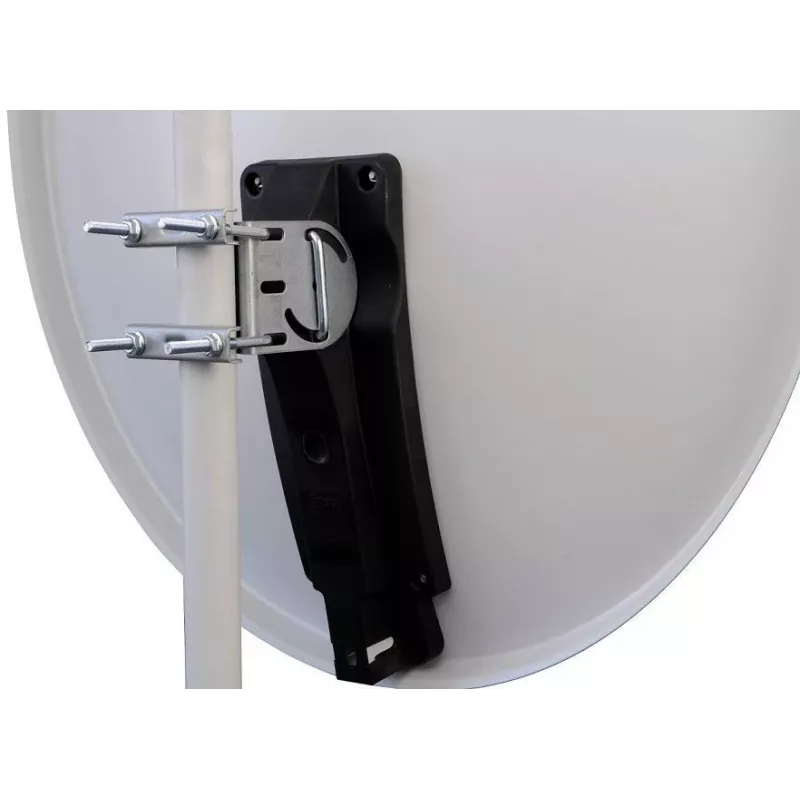

This satellite dish combines robust construction with easy installation. The light grey finish blends well with various environments, and the included mounting brackets allow for wall or pole mounting. The dish supports a mast diameter of 32-60 mm and offers elevation adjustment from 10° to 60°, providing flexibility for optimal alignment. With an operational wind load rating of up to 120 km/h and survival up to 150 km/h, it is built to withstand harsh weather.

Suitable for

• Residential and commercial satellite TV installations
• Ku-band satellite reception for FTA and pay-TV
• Replacement or upgrade for existing satellite dishes

Key specifications

• Dish Type: Offset Satellite Dish
• Material: Galvanized Steel
• Dish Diameter: 80 cm
• Effective Dimensions (W x H): 750 x 800 mm
• Frequency Range: 10.7 - 12.75 GHz (Ku-band)
• Gain (Ku-band): 38.5 - 40.5 dB
• LNB Clamp Diameter: 40 mm
• Mounting Type: Wall/Pole Mount
• Mast Diameter Compatibility: 32 - 60 mm
• Elevation Adjustment: 10° - 60°
• Wind Load (Operational): Up to 120 km/h
• Wind Load (Survival): Up to 150 km/h
• Offset Angle: ~26°
• Color: Light Grey
• Coating: Polyester Powder Coating
• Operating Temperature: -40°C to +60°C
• Polarization: Linear (Vertical/Horizontal)
• Reflector Efficiency: >70%

Recommendations

For optimal performance, pair this dish with a compatible LNB and satellite receiver. Ensure proper alignment and secure mounting to maximize signal strength and durability.
