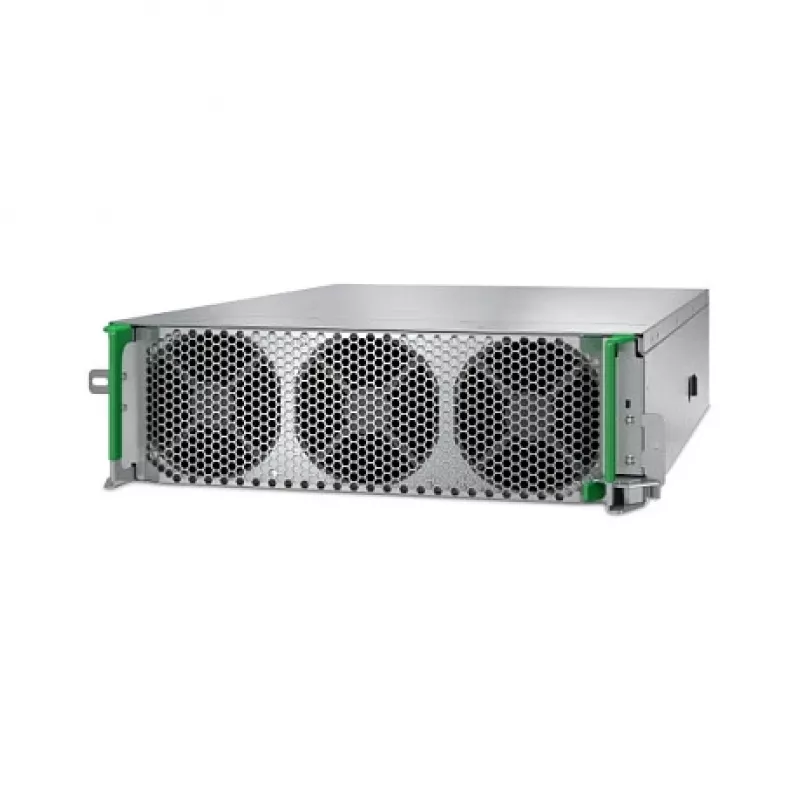

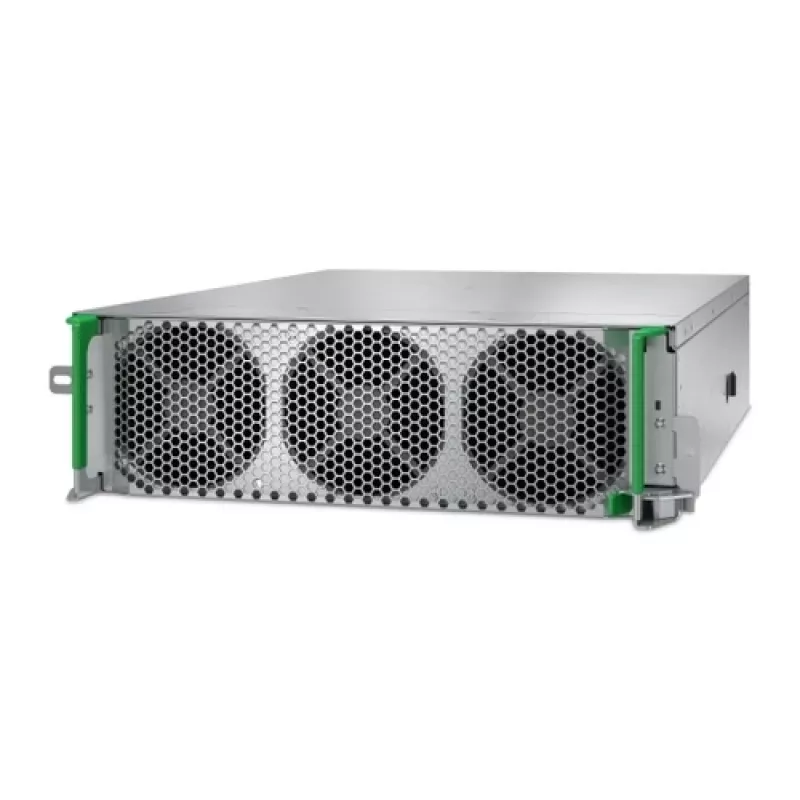

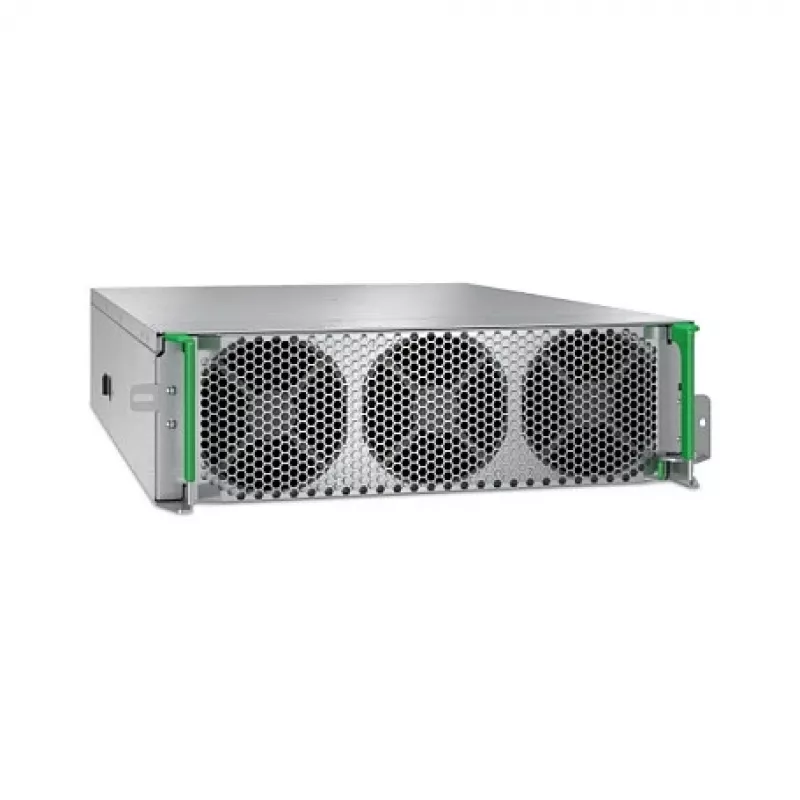

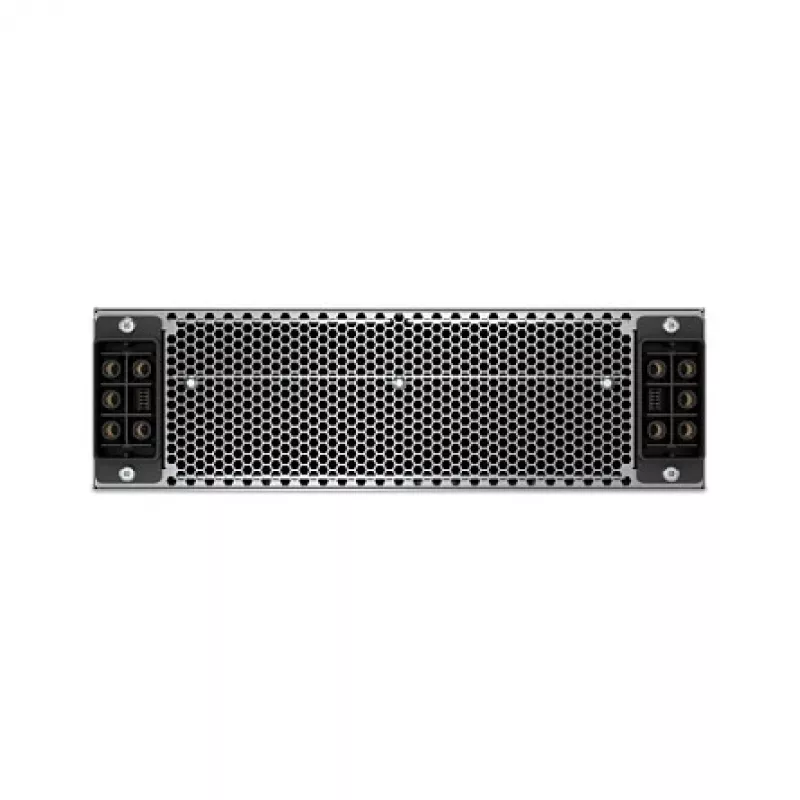

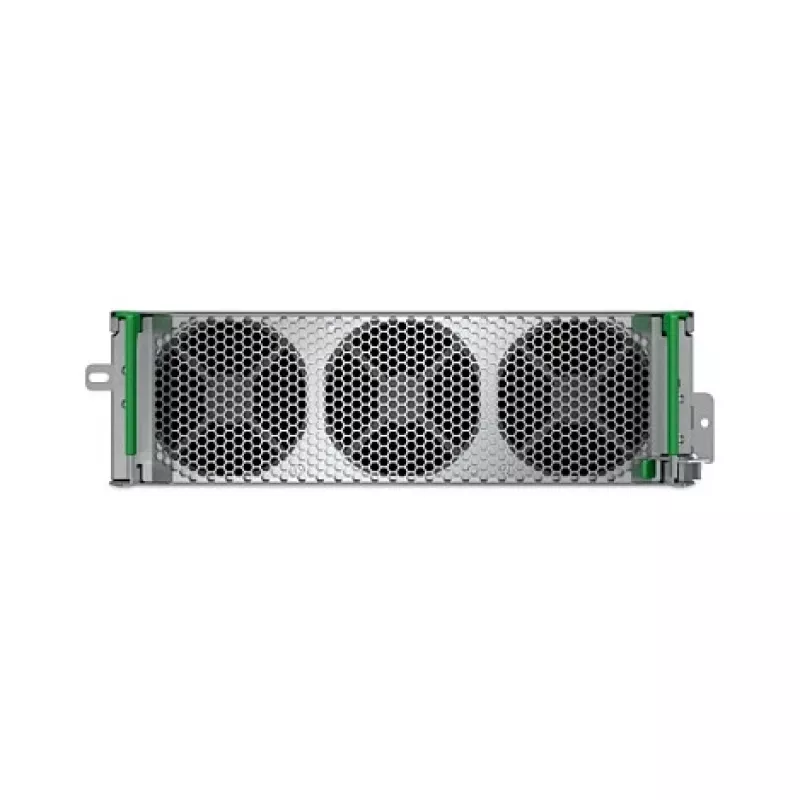

APC GVPM20KD módulo de fuente de alimentación extraíble AC 208/400/480V 20 kW para Symmetra PX

The APC GVPM20KD is a high-capacity power module engineered for the Symmetra PX series, delivering 20 kW of reliable three-phase power in a hot-swappable plug-in format. This module stands out for its flexible voltage compatibility (208/400/480V) and its ability to support N+1 redundancy, ensuring uninterrupted operation even during maintenance or module failure.

Highlights

• 20 kW / 20 kVA power capacity for demanding IT loads
• Compatible with APC Symmetra PX UPS systems
• Hot-swappable design for seamless replacement without downtime
• Supports N+1 redundancy for enhanced system availability
• AC input/output: 208/400/480V
• Online double conversion technology for maximum protection

In daily use

This power module is designed for data centers and critical facilities where uptime is non-negotiable. Its plug-in form factor simplifies installation and maintenance, allowing you to add or replace modules while the system remains online. The module's wide voltage range ensures compatibility with various electrical infrastructures, making it a versatile choice for global deployments.

Full specifications

• Device Type: Power Module
• Compatibility: APC Symmetra PX Series UPS Systems
• Power Capacity: 20 kW / 20 kVA
• Input Voltage: AC 208/400/480 V
• Output Voltage: AC 208/400/480 V
• Form Factor: Plug-in Module
• Hot-Swappable: Yes
• UPS Technology: Online Double Conversion
• Operating Temperature: 0 - 40 °C
• Storage Temperature: -15 - 45 °C
• Operating Relative Humidity: 0 - 95% (non-condensing)
• Storage Relative Humidity: 0 - 95% (non-condensing)
• Operating Elevation: 0 - 3000 meters
• Storage Elevation: 0 - 15000 meters
• Safety Standards: UL 1778, CSA C22.2 No. 107.1
• EMC Standards: FCC Part 15 Class A, EN 50091-2, VDE
• Redundancy Support: N+1

Final note

Backed by APC's engineering excellence, the GVPM20KD provides the scalable, resilient power infrastructure your business demands. Trust this genuine plug-in module to keep your critical systems online with confidence.
