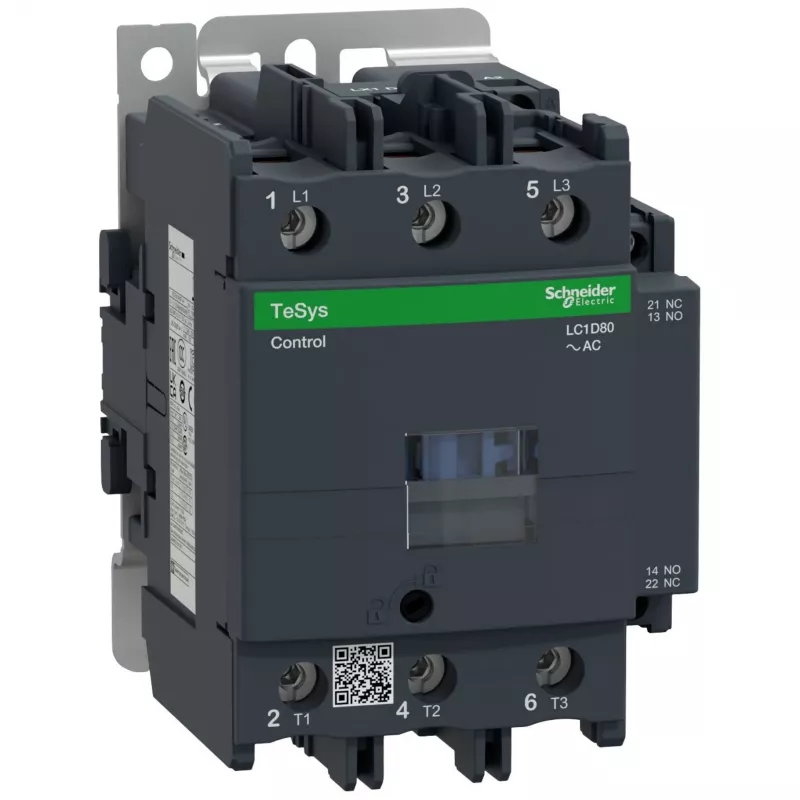

APC Schneider Electric LC1D80P7 contactor TeSys D, 3 polos, 80 A, bobina 230 V AC, contactos auxiliares 1 NO + 1 NC

The APC Schneider Electric LC1D80P7 is a high-performance contactor from the TeSys D series, designed for reliable motor control and switching applications. With a rated operational current of 80 A in AC-3 category and a coil voltage of 230 V AC, this 3-pole contactor is ideal for industrial environments. It features one normally open and one normally closed auxiliary contact, providing flexibility for control circuits.

Advantages

Robust construction ensures long electrical and mechanical durability (1.2 million cycles electrical, 8 million cycles mechanical). Compact design allows for DIN rail or plate mounting. Complies with international standards IEC 60947-4-1, UL, and CSA.

Suitable for

• Motor starting and switching in AC-3 applications up to 37 kW at 400 V
• Resistive and inductive load switching in AC-1 applications up to 120 A
• Industrial automation and control panels

Key specifications

• Product Type: Contactor
• Series: TeSys D
• Number of Poles: 3
• Rated Operational Current (AC-3): 80 A at ≤60 °C, ≤440 V
• Rated Operational Current (AC-1): 120 A at ≤60 °C, ≤690 V
• Coil Voltage: 230 V AC 50/60 Hz
• Auxiliary Contacts: 1 NO + 1 NC
• Motor Power (AC-3, 400V): 37 kW
• Mounting Type: DIN Rail / Plate
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Electrical Durability (AC-3): 1.2 million cycles
• Mechanical Durability: 8 million cycles
• Operating Temperature: -5 to 60 °C
• Protection Rating: IP20 (front face)
• Standards: IEC 60947-4-1, UL, CSA
• Power Circuit Terminal Type: Screw clamp (10-50 mm²)
• Control Circuit Terminal Type: Screw clamp (1-4 mm²)

Recommendations

For optimal performance, ensure proper mounting and wiring according to the manufacturer's instructions. Use appropriate cable sizes and torque settings for screw terminals.
