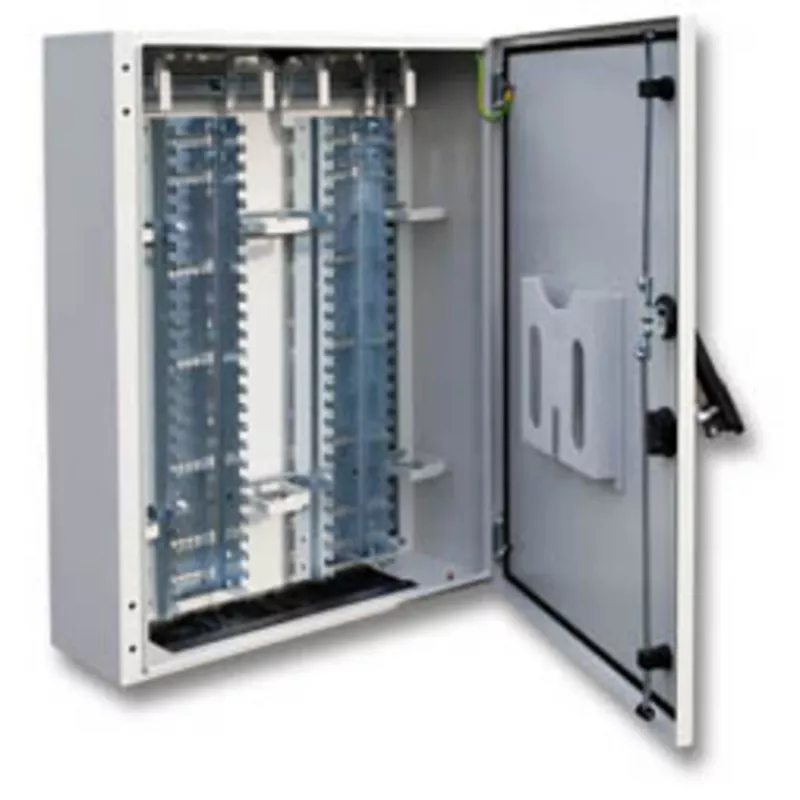

Armario de distribución de pared EFB Electronics TWL300, an=600 x al=600 x pr=240 mm

The EFB Electronics Wall Distribution Cabinet TWL300 is a robust and versatile enclosure designed for network, data, telecommunications, and electrical distribution applications. With external dimensions of 600 mm width, 600 mm height, and 240 mm depth, this wall-mounted cabinet offers ample space for organizing and protecting your equipment. Manufactured by EFB Elektronik, a trusted name in infrastructure solutions, the TWL300 combines durability with functional design.

Advantages

This distribution cabinet features a welded sheet steel frame with a powder-coated finish in light grey (RAL 7035), ensuring long-lasting protection against environmental factors. The single hinged door opens 180° for easy access, and the security lock with two keys provides reliable protection. Pre-punched knockouts at the top and bottom facilitate cable entry, while fixed side and rear panels maintain structural integrity. Grounding points on both the body and door ensure proper earthing.

Suitable for

• Network and data cabling installations
• Telecommunications equipment housing
• Electrical distribution in commercial or industrial settings
• Server and patch panel mounting

Key specifications

• Product Type: Wall Mount Distribution Cabinet
• External Dimensions (W x H x D): 600 mm x 600 mm x 240 mm
• Material: Sheet Steel
• Colour: Light Grey (RAL 7035)
• Door Type: Single hinged door with 180° opening angle
• Locking Mechanism: Security lock with 2 keys
• Protection Class: IP20
• Cable Entry: Top and bottom, pre-punched knockouts
• Side Panels: Fixed
• Rear Panel: Fixed
• Internal Mounting: Mounting plate for equipment installation
• Grounding: Grounding points on body and door
• Construction: Welded frame
• Finish: Powder-coated

Recommendations

For optimal performance, ensure proper ventilation and avoid overloading the cabinet. Use appropriate cable management accessories to maintain organization. This cabinet is ideal for small to medium-sized installations where space is at a premium.
