Armario de pared DeLOCK armario de red de 10 inch 4U gris

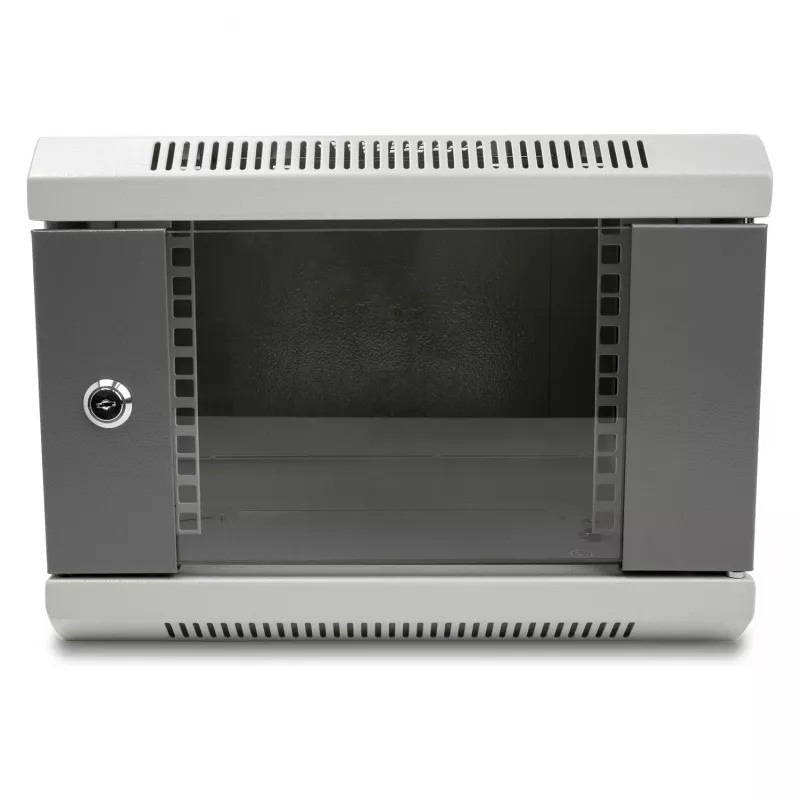

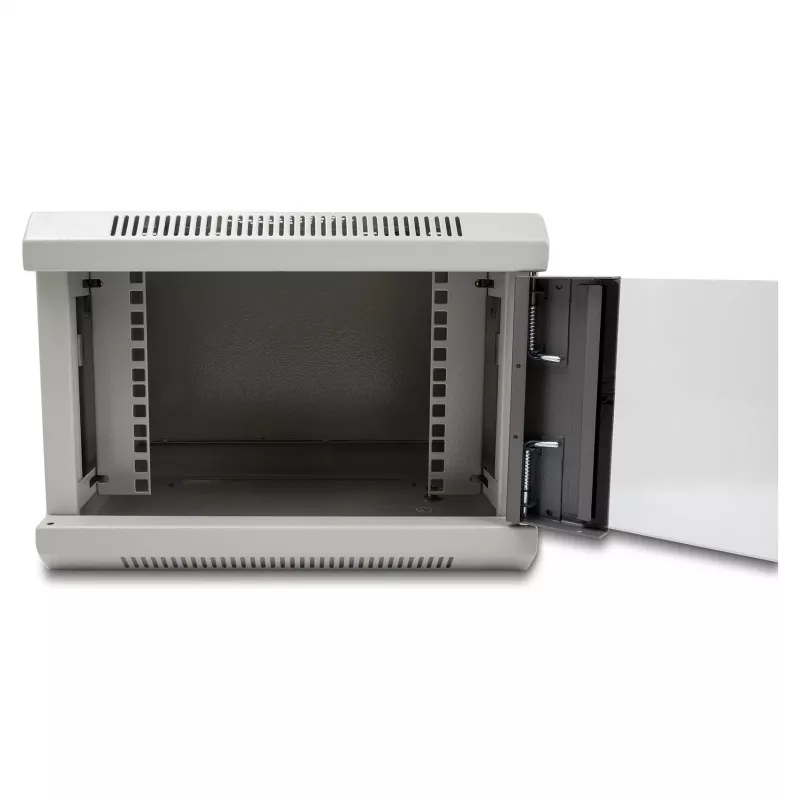

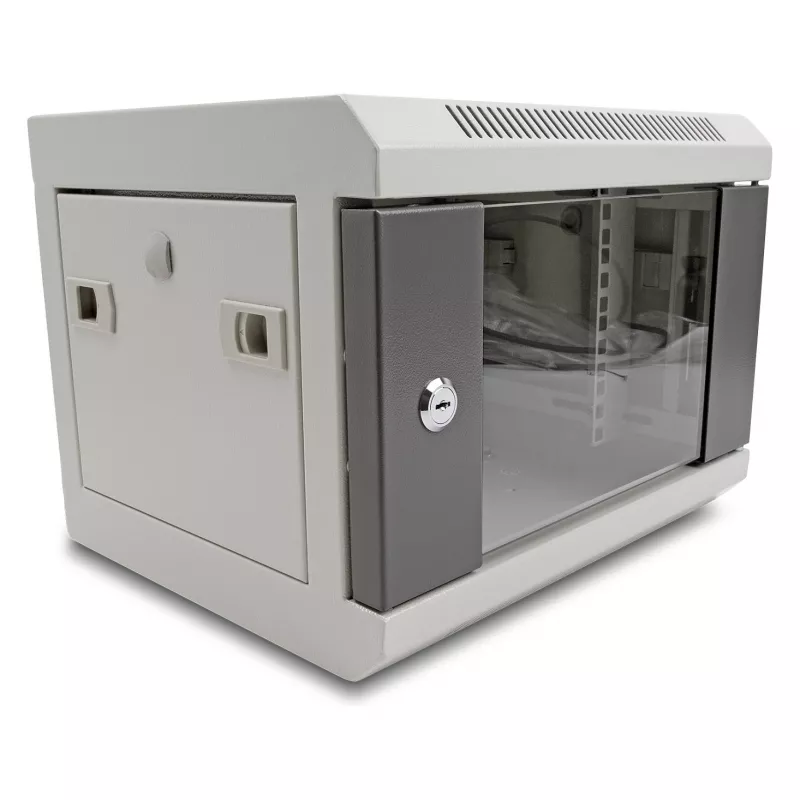

The DeLOCK 10" Network Cabinet 4U is a wall-mounted rack designed for compact network installations. It accepts 10" devices such as patch panels and provides a lockable front door with a viewing window, removable side panels for rear access and ventilation slots in the top cover to maintain airflow.

Advantages

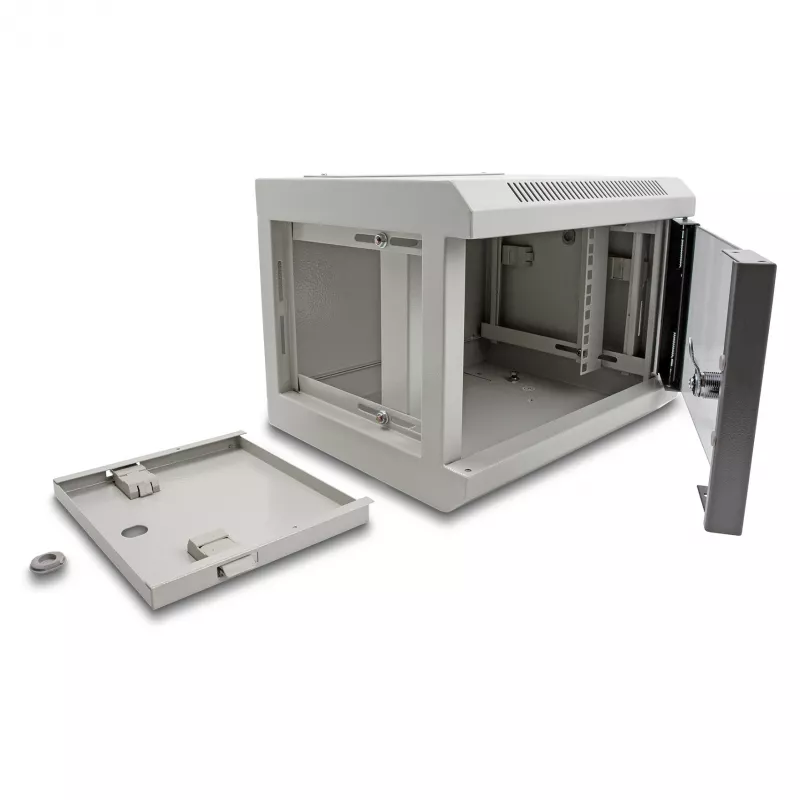

The cabinet supports up to 4U of rack-mounted equipment and is suitable for wall or stand mounting. A keyed front lock increases physical security while the viewing window lets you check the interior without opening the door. Removable side panels simplify installation and maintenance of devices in the rear of the cabinet. Integrated ventilation slots on the upper cover help dissipate heat generated by installed components.

Suitable for

• Mounting 10" patch panels and small rack devices
• Small office or retail network distribution points
• Secure wall-mounted installations with limited depth

Key specifications

• Rack capacity: 4U
• Maximum mounting depth: 240 mm
• Maximum load: 40 kg
• Dimensions (H×W×D): 255 × 280 × 350 mm
• Weight: 6 kg
• Size: 10"
• Colour: Grey
• Front door: glass with key lock

How to use

Affix the cabinet to a suitable wall or install it on a compatible stand following local mounting regulations and using appropriate anchors. Remove the side panels to route cables and install 10" devices such as patch panels or small 19" adapters into the 4U space. Close and lock the front door after installation. Ensure that the cabinet is not loaded beyond the specified maximum weight and that equipment is secured to the rack rails.

Recommendations

Install in a ventilated environment and leave sufficient clearance above the top ventilation slots. Do not exceed the 40 kg load capacity and periodically check the lock and mounting points for wear.
