Armario de pared Digitus DN-49103-SET 9U 315 x 300 mm negro

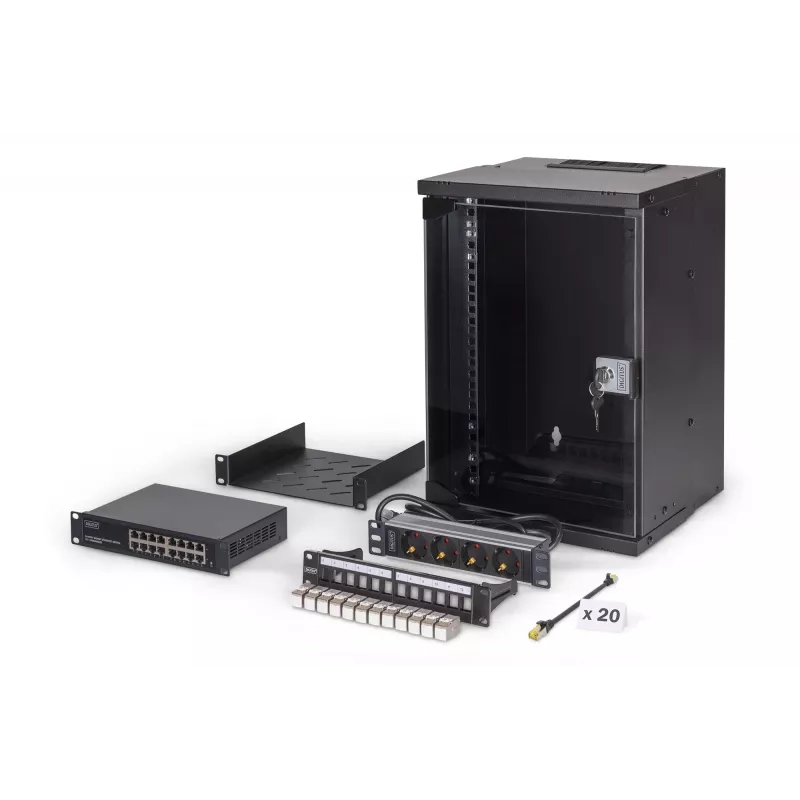

For small offices, home networks, or compact distribution boards, this complete 10-inch SOHO Pro set from DIGITUS delivers everything needed for a tidy, high-performance network in one box. It includes a 9U wall-mount enclosure (460 x 315 x 300 mm, unassembled), a 1U shelf, a 1U socket strip with earthing contact, a 16-port Gigabit Ethernet switch, a 12-port modular patch panel, twelve CAT 6A shielded keystone modules, and twenty 0.25 m CAT 6A S/FTP patch cables. All components are pre-matched for compatibility, so you can assemble and connect your network quickly without guesswork.

Key specifications

• Enclosure: 9U, 460 x 315 x 300 mm (H x W x D), steel, black (RAL 9005), flat-pack
• Maximum static load: 60 kg
• Front door: safety glass, lockable, 180° opening angle
• Side panels: fixed; passive ventilation via perforated top/bottom
• Cable entry: top and bottom with brush strips
• Protection class: IP20
• Mounting rails: 2x 19-inch profile rails, galvanized, depth adjustable (max installation depth 240 mm)
• Included switch: 16-port Gigabit Ethernet, IEEE 802.3/3u/3ab/3x
• Included patch panel: 12-port modular, unloaded
• Included keystone modules: 12x CAT 6A shielded, 10GBase-T, 500 MHz, PoE/PoE+/4PPoE (IEEE 802.3af/at/bt)
• Included socket strip: 1U, 4x earthing contact, 250 VAC, 16 A, 4000 W, 2 m cable H05VV-F 3G 1.5 mm²
• Included shelf: 1U, steel, black
• Included patch cables: 20x 0.25 m, CAT 6A S/FTP, shielded

Why choose it

The 10-inch SOHO Pro format is ideal where space is tight but performance matters. Every component is selected to work seamlessly together, reducing installation time and eliminating compatibility issues. The enclosure's lockable glass door and solid steel construction keep your equipment secure, while passive ventilation helps maintain optimal operating temperatures. With a 60 kg load capacity and adjustable rails, it accommodates a variety of active and passive components.

Ideal use cases

• Small and home offices needing a professional network cabinet
• Retail or branch locations with limited floor space
• Wall-mounted installations in corridors, utility rooms, or distribution boards
• Compact 10-inch network deployments requiring Gigabit switching and CAT 6A cabling

Good to know

The enclosure ships unassembled in a compact cardboard box with step-by-step instructions, making transport and handling easy. The set is compliant with RoHS and REACH standards. All included cables and modules are shielded to ensure reliable 10G performance even in electrically noisy environments.
