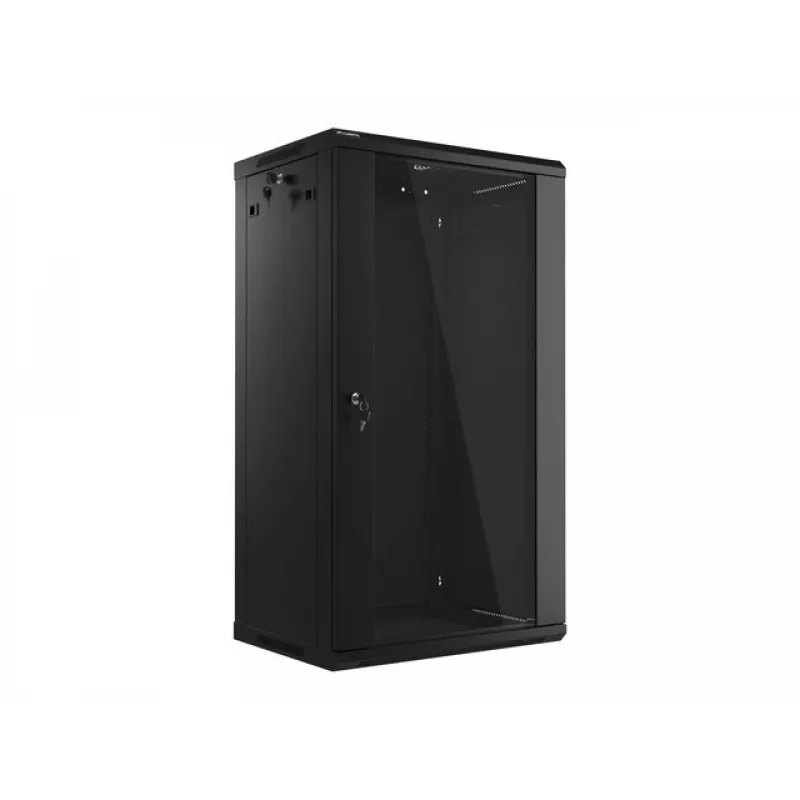

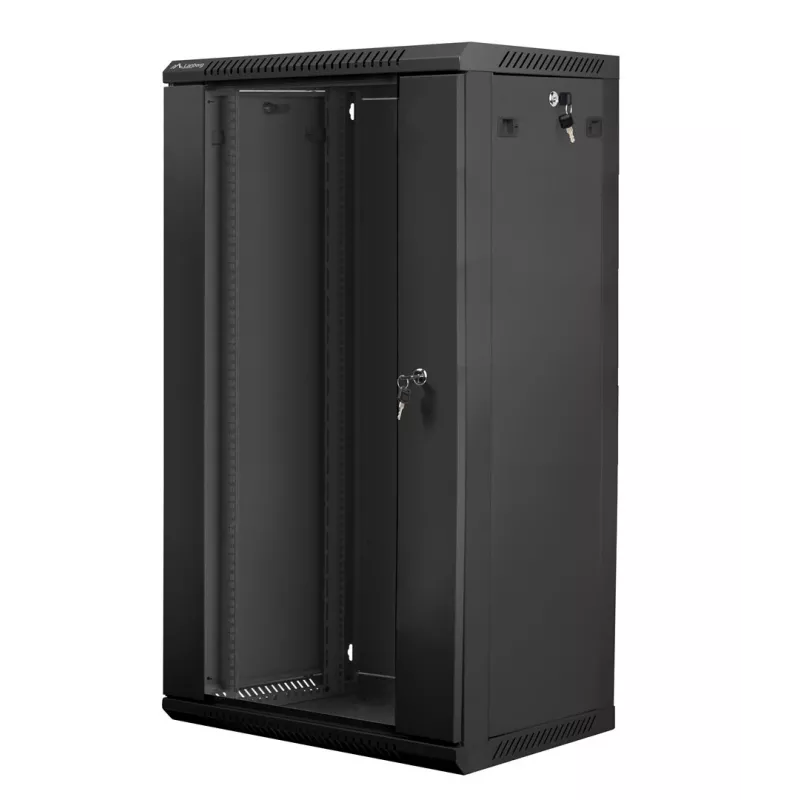

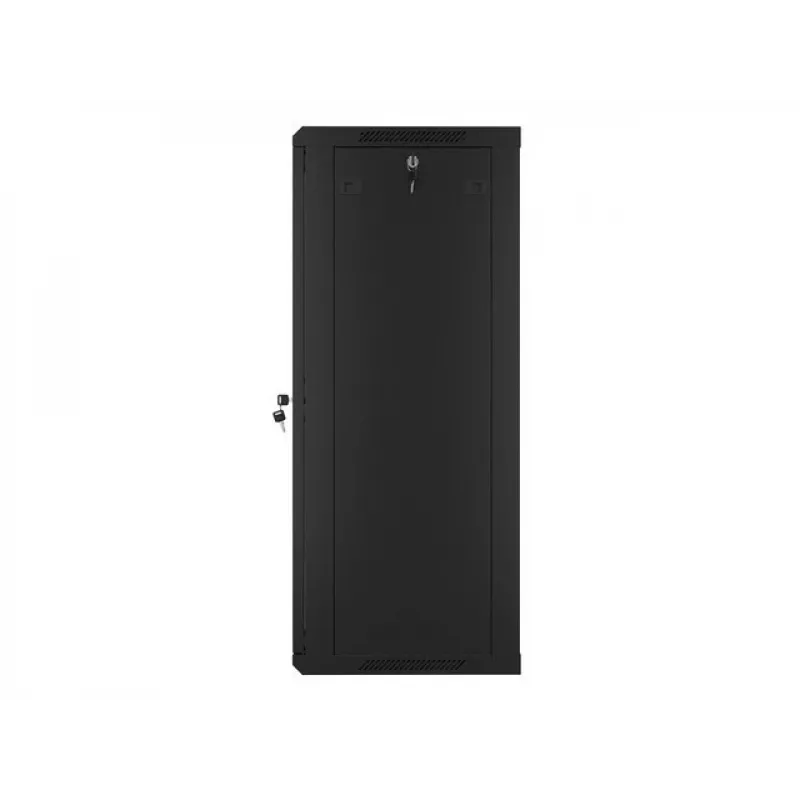

Armario de pared LANBERG WF01-6422-10B, 22U, 19", 600x450x1085 mm, acero, negro

Wall mount, single section Lanberg cabinet WF01-6422-10B is a 19" rack enclosure designed for mounting network and low-voltage equipment with a maximum load capacity of 60 kg. It is suitable for use in networks, server rooms, small and medium businesses, and for low-voltage systems such as cable TV, alarm, fire protection, access control, CCTV and IP surveillance. The cabinet is made of cold rolled steel and supplied as a flat pack for self-assembly, which simplifies transport and installation.

Advantages

The cabinet provides a compact 19" mounting solution with IP20 protection and a load rating up to 60 kg. The front door opens and can rotate up to 180° and is lockable for controlled access. Removable side panels with locks allow convenient access to equipment. Top and bottom cable entry panels facilitate neat cabling. Included accessories such as rail mounts, M6 cage nuts and blank panels support immediate installation.

Key specifications

• Model: Lanberg WF01-6422-10B
• Type: Wall mount, single section
• Rack size: 19"
• Maximum load: 60 kg
• Protection class: IP20

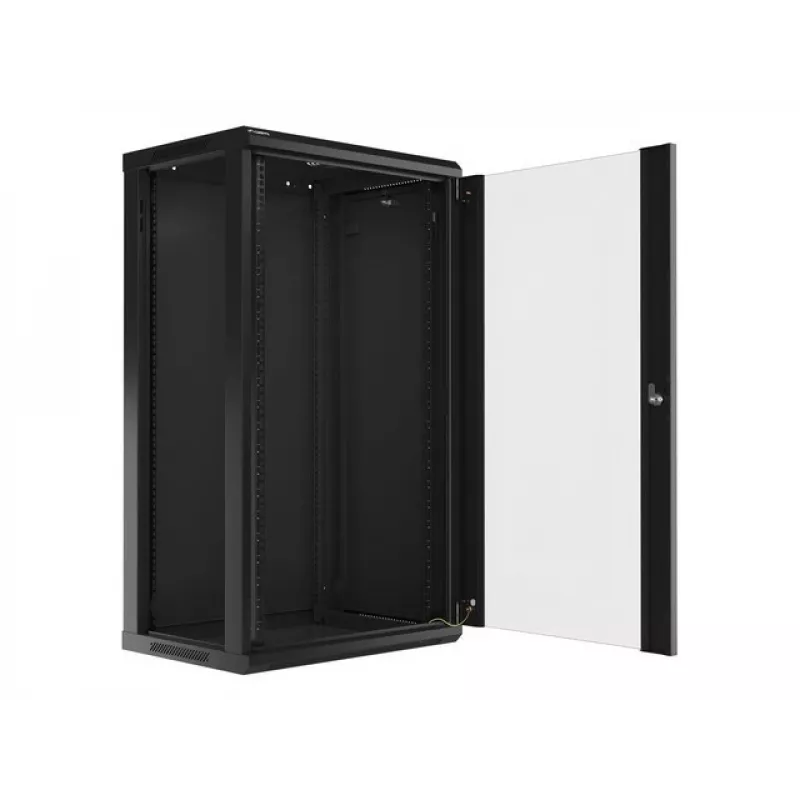

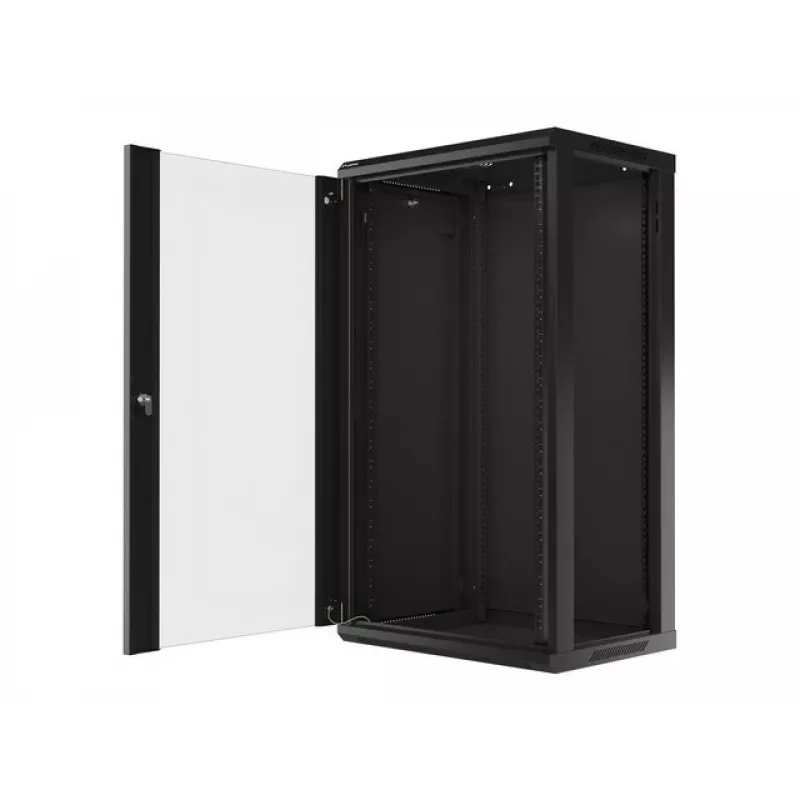

• Front door: opens and rotates up to 180°, lockable

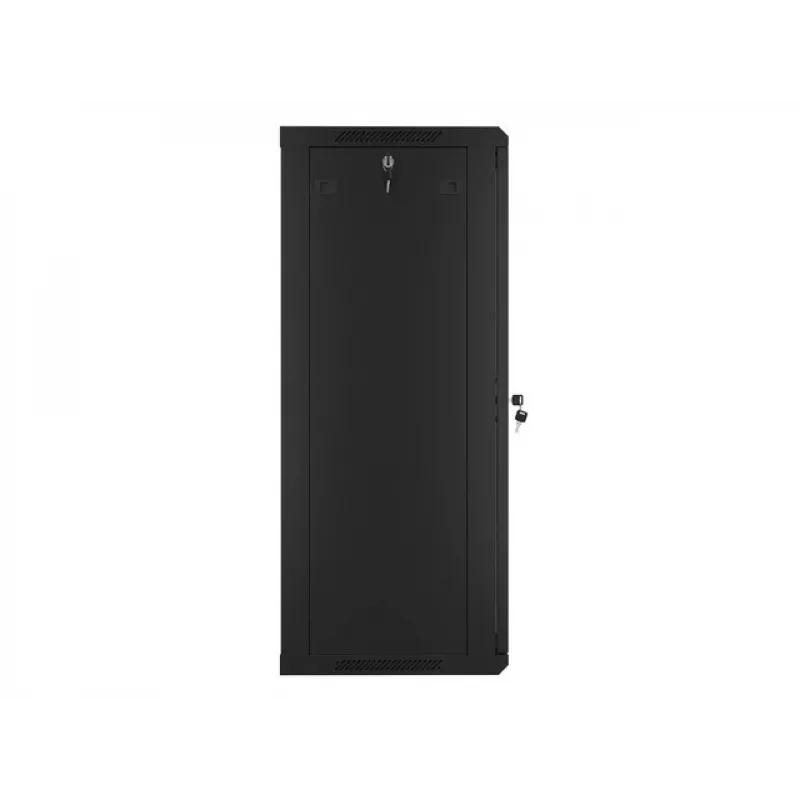

• Side panels: removable, locks included

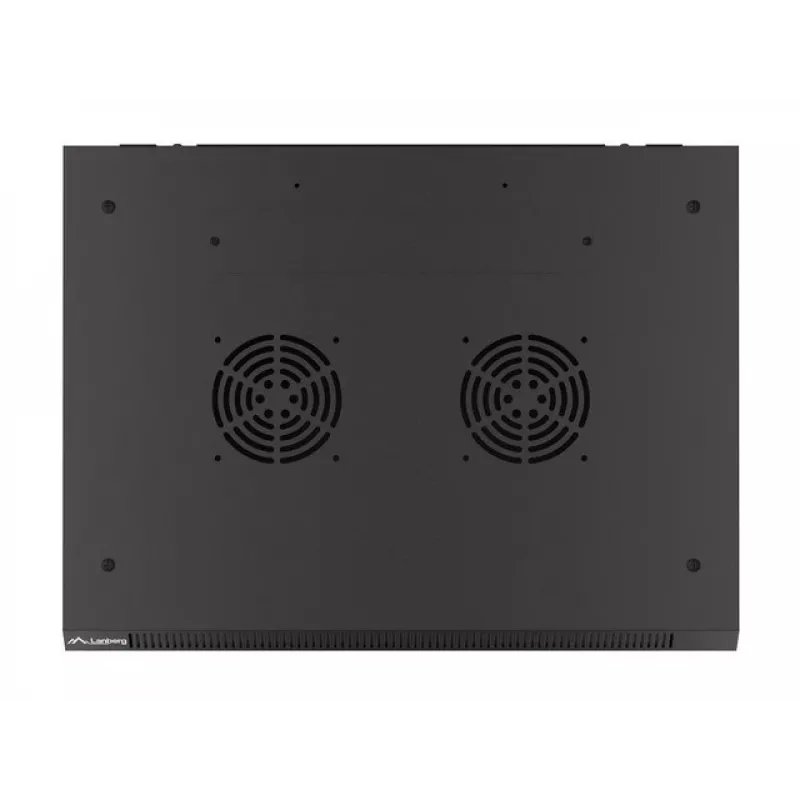

• Cable entry: top and bottom panels
• Material: cold rolled steel
• Delivery: flat pack for self-assembly
• Included accessories: rail mounts, M6 cage nuts, blank entry panels

How to use

Unpack the flat pack and assemble the cabinet according to the supplied instructions. Mount the cabinet on a suitable wall structure ensuring it can support the 60 kg maximum load. Fit the internal 19" equipment rails and secure devices using the provided M6 cage nuts. Route cables through the top or bottom entry panels and close blank panels where required. Use the lockable front door and side panels to restrict access as needed.

Recommendations

Install the cabinet on a firm, load-bearing wall and verify local building and electrical regulations before mounting. Distribute equipment weight evenly on the 19" rails and leave clearance for ventilation and cable management to maintain reliable operation of installed devices.
