Armario de servidor DSIT 22U 19" con puerta frontal perforada 600x1200x1200mm negro

Engineered for demanding IT environments, this DSIT 22U server cabinet delivers a robust 19-inch rack solution with a fully perforated front door, ensuring optimal passive airflow for your critical equipment. The 600mm width and 1200mm depth provide ample space for standard servers, networking gear, and AV components, while the 1200mm height accommodates 22 rack units of hardware.

Overview

Constructed from SPCC cold-rolled steel with a durable powder-coated finish in black (RAL 9005), this cabinet is built to withstand the rigors of data centers, server rooms, and office installations. The cabinet features a lockable perforated steel front door, a perforated rear door, and removable lockable side panels, providing both security and easy access for maintenance. Cable entry is available from the top and bottom, and adjustable 19-inch mounting rails allow flexible equipment installation. Fully assembled and EIA-310-D compliant, it is ready for immediate deployment.

What stands out

• 22U capacity with 19-inch standard mounting rails
• Perforated front and rear doors for passive ventilation
• Lockable doors and side panels for enhanced security
• Removable side panels for convenient access
• Adjustable mounting depth for versatile hardware compatibility
• Top and bottom cable entry points for clean cable management
• Durable SPCC steel construction with powder-coated finish
• Fully assembled for quick setup

Technical details

• Rack Type: Freestanding Rack Cabinet
• Rack Units: 22U
• Rack Standard: 19 inch
• External Dimensions (WxDxH): 600 x 1200 x 1200 mm

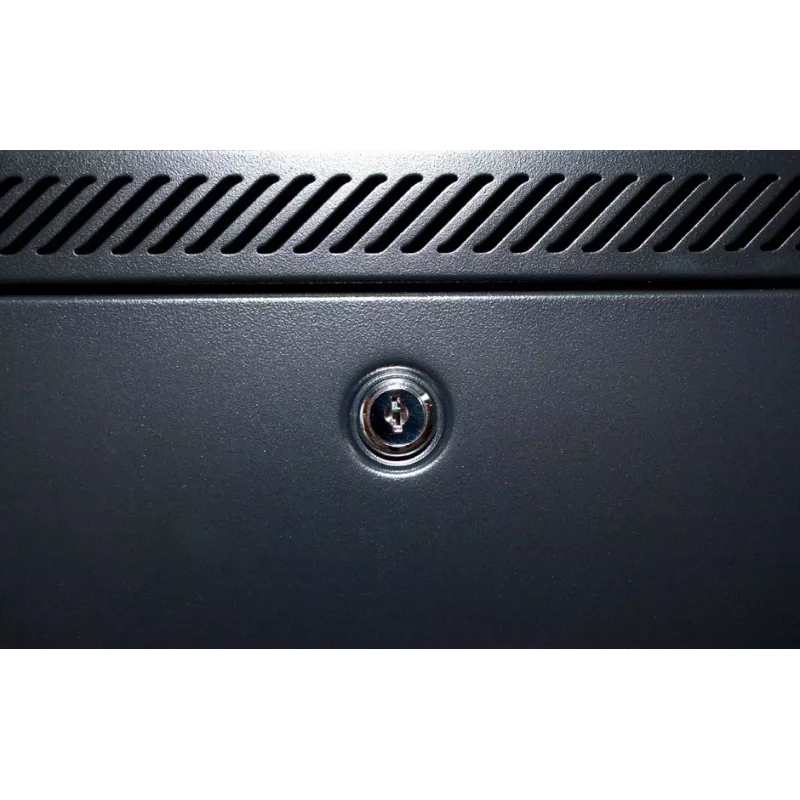

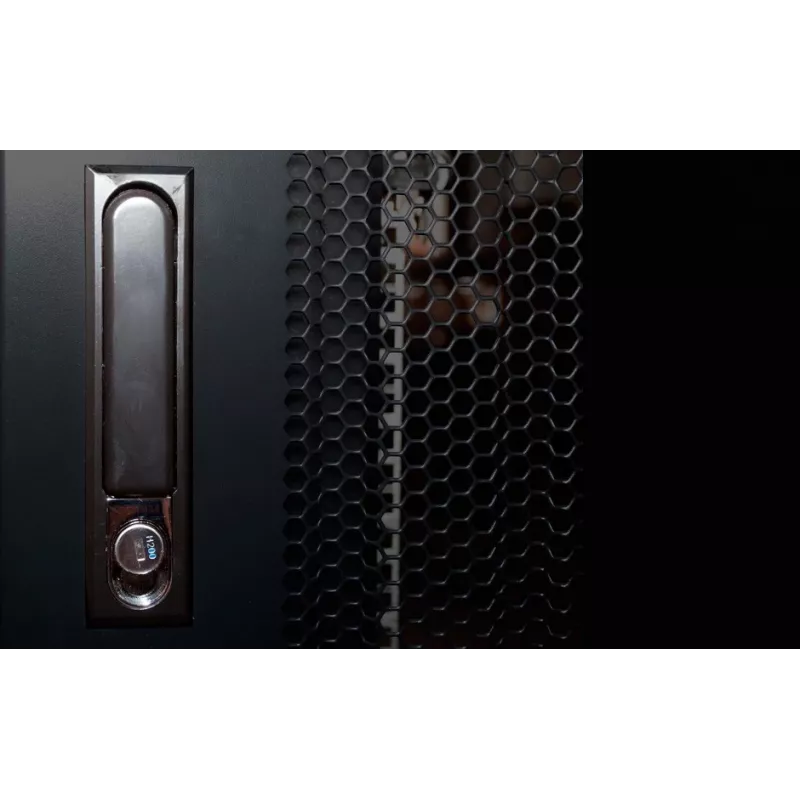

• Front Door: Perforated Steel, Lockable
• Rear Door: Perforated Steel, Lockable

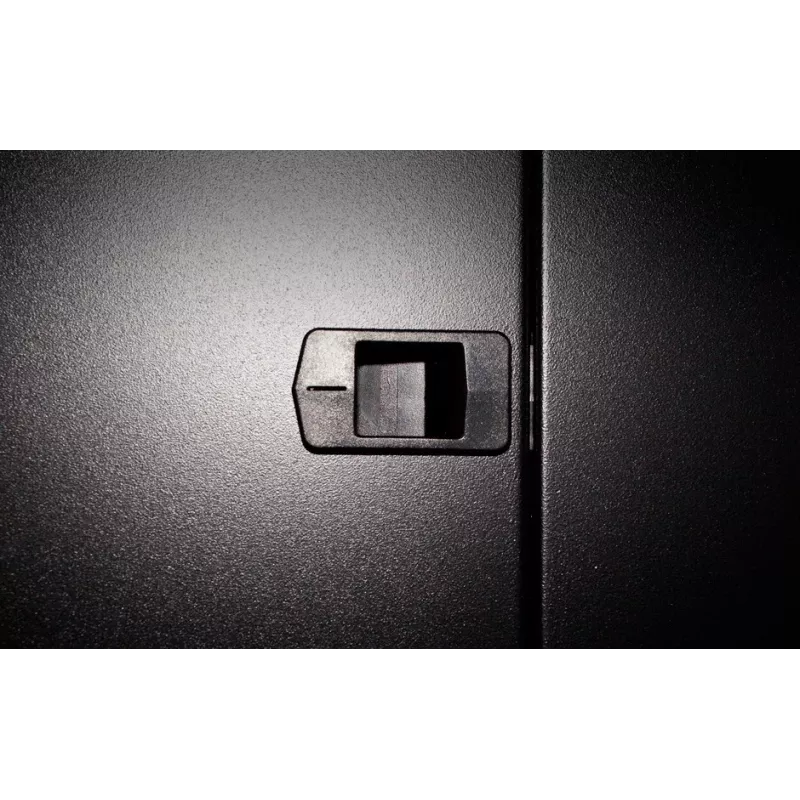

• Side Panels: Removable, Lockable
• Material: SPCC Cold Rolled Steel
• Finish: Powder Coated
• Color: Black (RAL 9005)
• Cable Entry: Top and Bottom

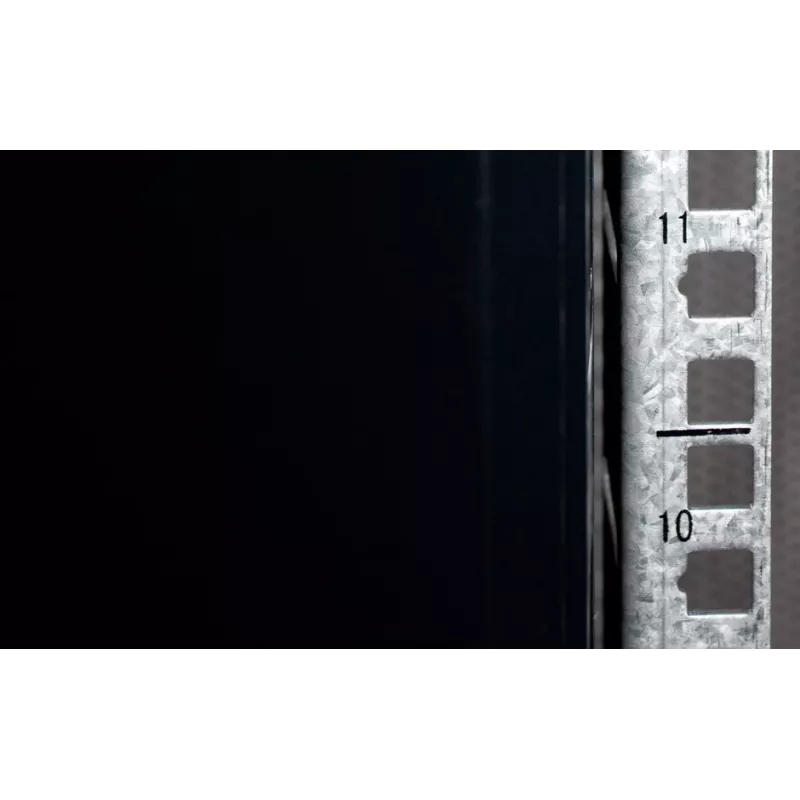

• Mounting Rails: Adjustable Depth, 19-inch
• Ventilation: Passive Airflow via Perforated Doors
• IP Protection Class: IP20
• Assembly: Fully Assembled
• Compliance: EIA-310-D

Our verdict

The DSIT 22U server cabinet is a reliable, secure, and well-ventilated solution for housing your IT infrastructure. Its sturdy construction and thoughtful design make it a solid choice for any professional environment.
