Armario de servidor DSIT 47U 19" con puerta frontal perforada 800x800x2260mm (DS8847PP)

With a massive 47U capacity and a robust 800mm width, this DSIT server cabinet provides ample space for high-density installations while ensuring optimal passive airflow through perforated front and rear doors. The 2260mm height makes it a commanding presence in any data center or server room, yet its SPCC cold rolled steel construction with powder coating ensures long-term durability.

Overview

The DSIT DS8847PP is a freestanding 19-inch server cabinet engineered for professional IT environments. It accommodates standard 19-inch rack-mount equipment and offers 47 rack units of vertical space. The cabinet features a perforated single-section front door and a matching perforated rear door, promoting natural convection cooling without the need for active fans. Removable and lockable side panels provide easy access for installation and maintenance while ensuring security. Adjustable 19-inch mounting rails allow flexible equipment placement, and cable entry points at the top and bottom with brush strips keep cabling organized and dust-free.

What stands out

• 47U capacity supports extensive server, networking, and storage deployments.

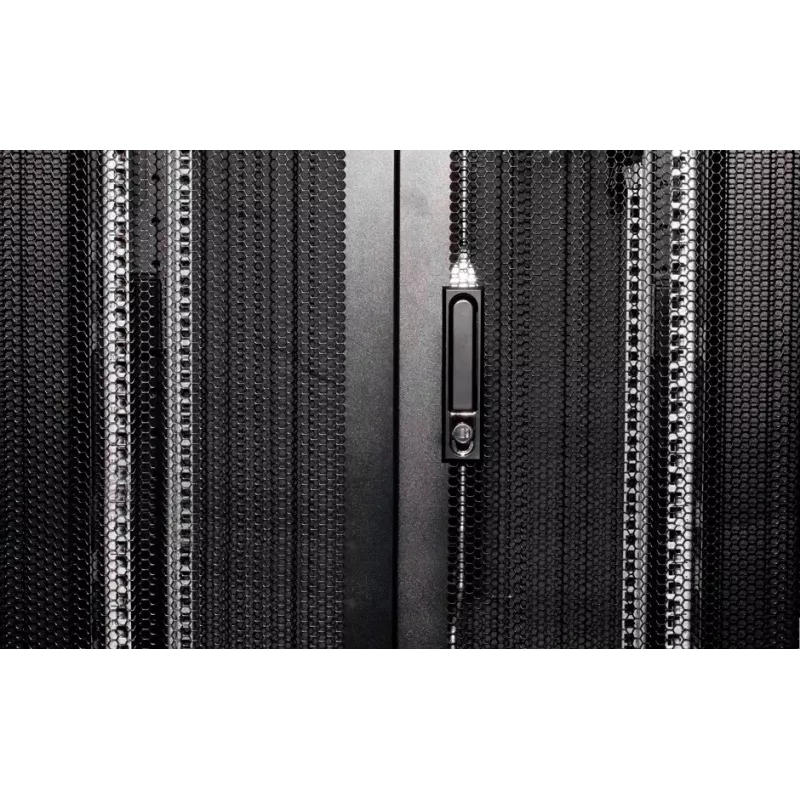

• Perforated front and rear doors deliver efficient passive ventilation.

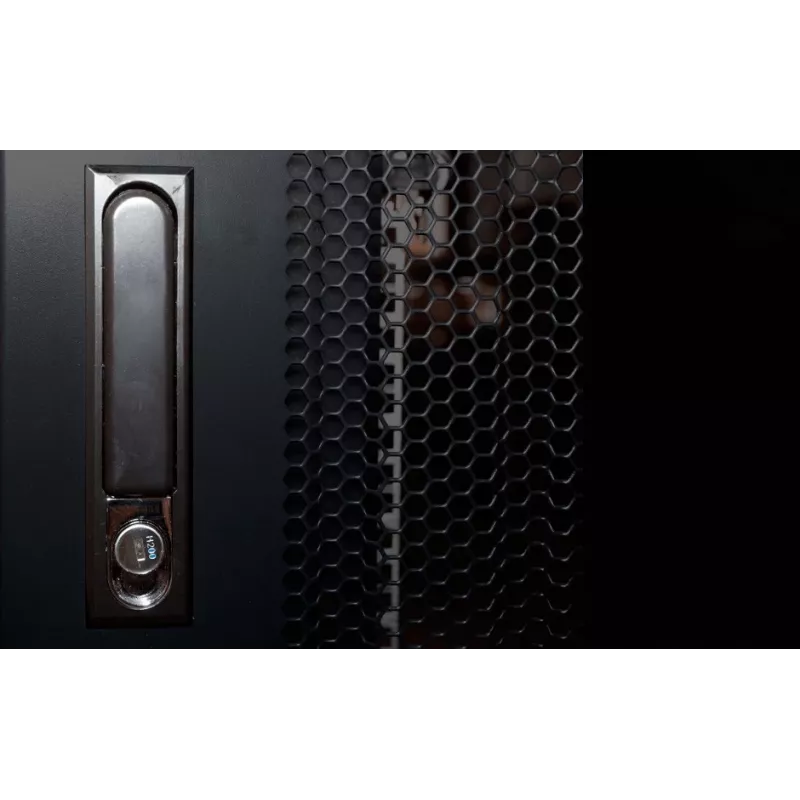

• Lockable doors and side panels safeguard critical hardware.
• Removable side panels simplify equipment installation and cabling.

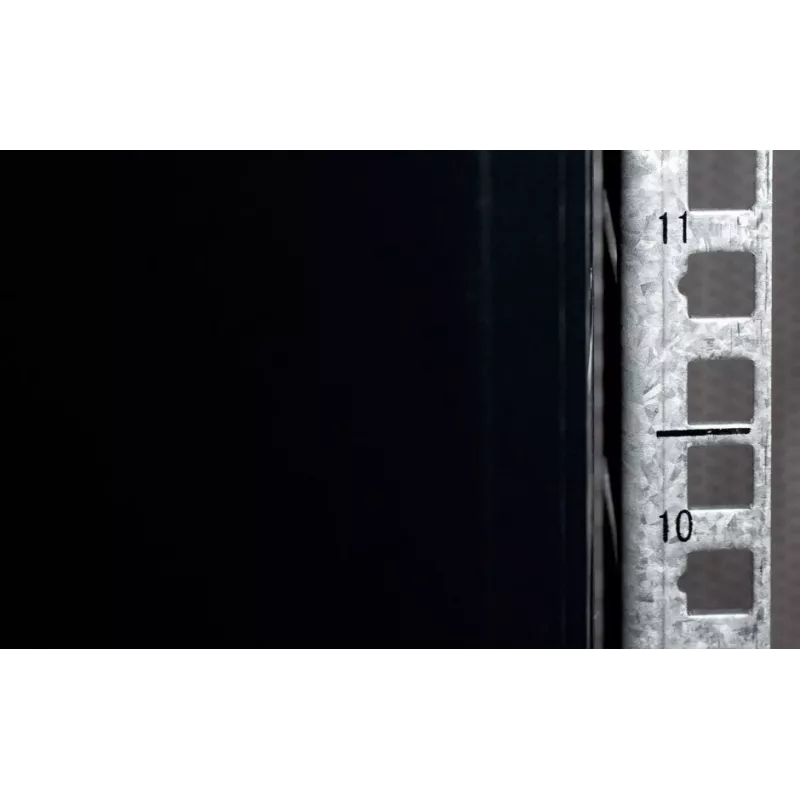

• Adjustable mounting rails accommodate various equipment depths.
• Top and bottom cable entry with brush strips maintains a clean setup.
• Levelling feet and heavy-duty castors provide stability and mobility.
• Complies with ANSI/EIA RS-310-D, IEC297-2, and DIN41494 standards.

Technical details

• Rack Type: Freestanding server cabinet
• Rack Standard: 19-inch
• Rack Units: 47U
• External Dimensions (WxDxH): 800 x 800 x 2260 mm
• Front Door: Perforated, single section, lockable
• Rear Door: Perforated, single section, lockable

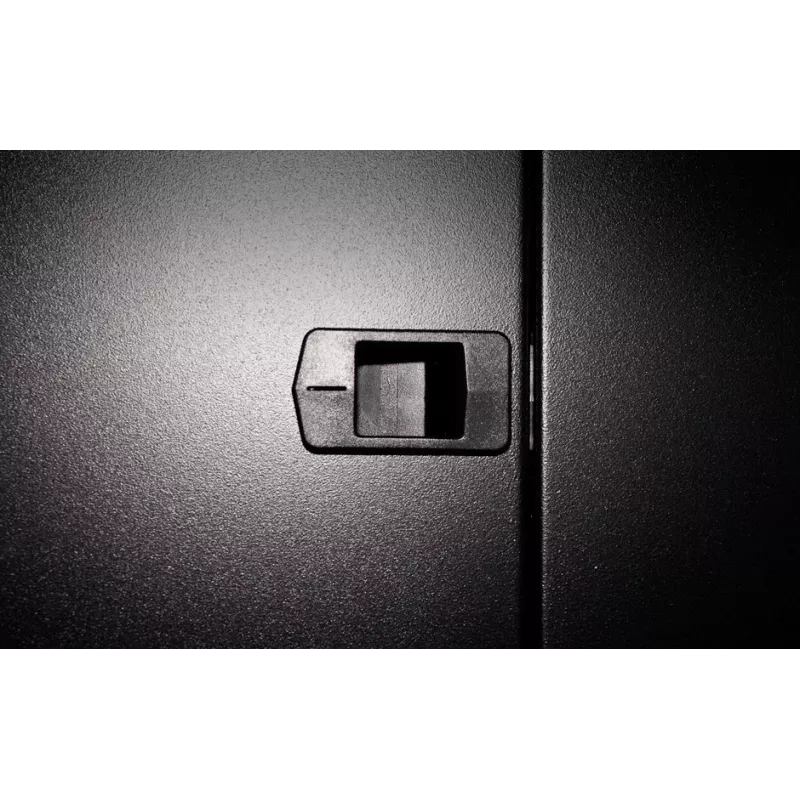

• Side Panels: Removable, lockable
• Material: SPCC cold rolled steel
• Surface Finish: Powder coated
• Mounting Rails: Adjustable 19-inch
• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive (perforated doors)
• IP Protection: IP20
• Included Accessories: Levelling feet, heavy-duty castors, cage nuts and screws
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7

Our verdict

A high-capacity, secure, and well-ventilated server cabinet that meets professional standards. Ideal for data centers needing reliable 19-inch rack infrastructure with excellent passive cooling and flexible configuration.
