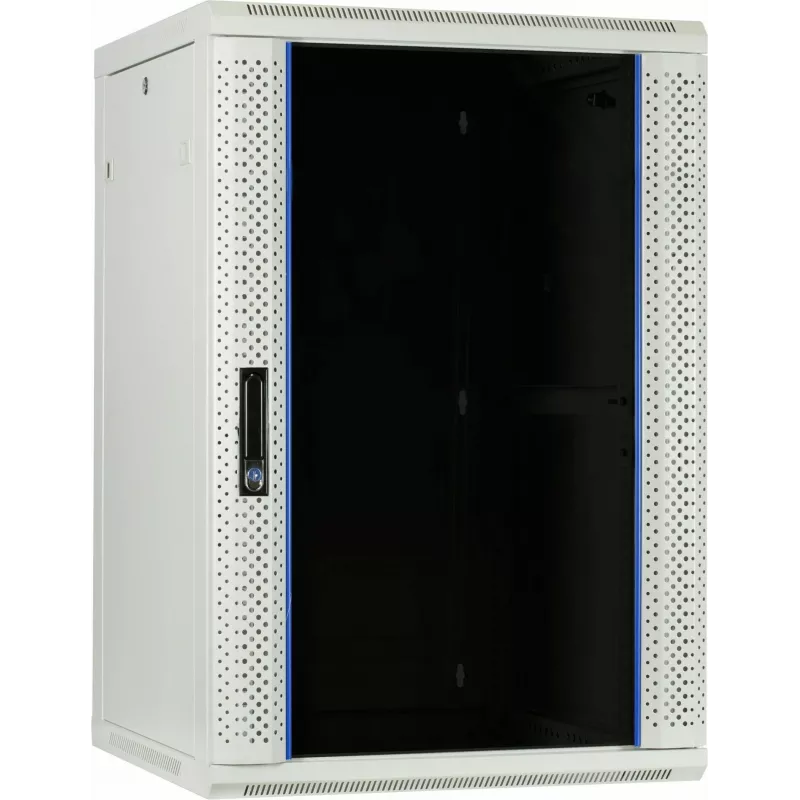

Armario de servidores de pared DSIT 27U con puerta de cristal, 600 x 600 x 1300 mm, blanco

Network administrators in small offices and branch locations need a secure, space-efficient enclosure for their IT equipment. The DSIT 27U wall-mount cabinet answers that call, providing a lockable tempered-glass front door, removable side panels, and adjustable 19-inch rails in a compact 600 x 600 mm footprint that projects only 600 mm from the wall. With a height of 1300 mm, it accommodates up to 27 rack units of servers, switches, patch panels, and UPS devices while keeping them protected and organized.

Key specifications

• 27U rack capacity, wall-mount design
• External dimensions: 600 mm (W) x 600 mm (D) x 1300 mm (H)
• White powder-coated SPCC cold-rolled steel construction
• Tempered glass front door with key lock
• Removable, lockable side panels
• Adjustable 19-inch mounting rails (depth approx. 550 mm usable)
• Static load capacity up to 60 kg
• Cable entry knockouts on top and bottom
• Passive ventilation with provision for optional fan unit
• IP20 protection rating
• Compliant with EIA-310-D and IEC 60297-2
• Pre-assembled for quick installation

Why choose it

This cabinet combines robust security with practical cable management. The lockable glass door allows visual monitoring of equipment status without compromising access control, while the removable side panels simplify installation and maintenance. Its white finish suits modern office environments, and the pre-assembled structure reduces setup time significantly.

Ideal use cases

• Small business server rooms
• Branch office network closets
• Retail back-office IT installations
• Educational and healthcare facilities

Good to know

The cabinet is designed for wall mounting; appropriate wall anchors and installation hardware should be selected based on wall type and total equipment weight. For enhanced airflow, an optional fan unit can be installed in the designated top area. The adjustable rails allow for equipment with varying depths, and the top/bottom knockouts facilitate clean cable routing.
