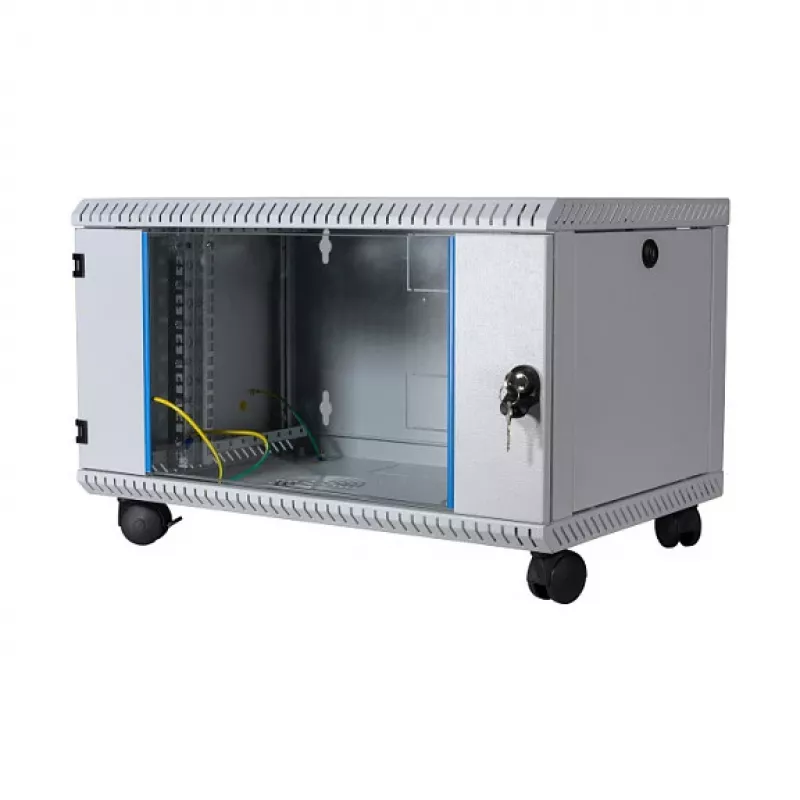

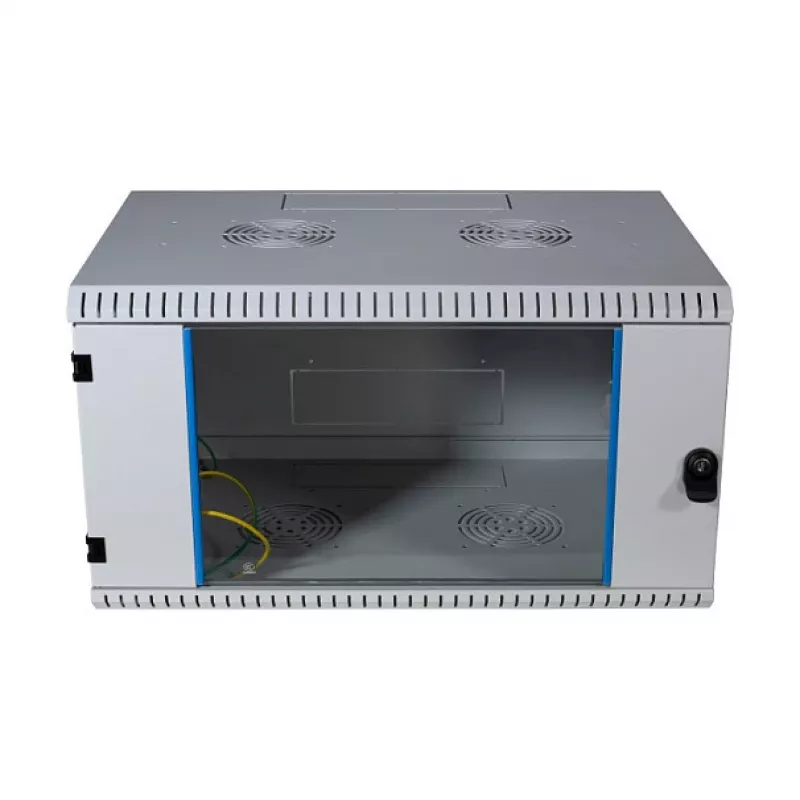

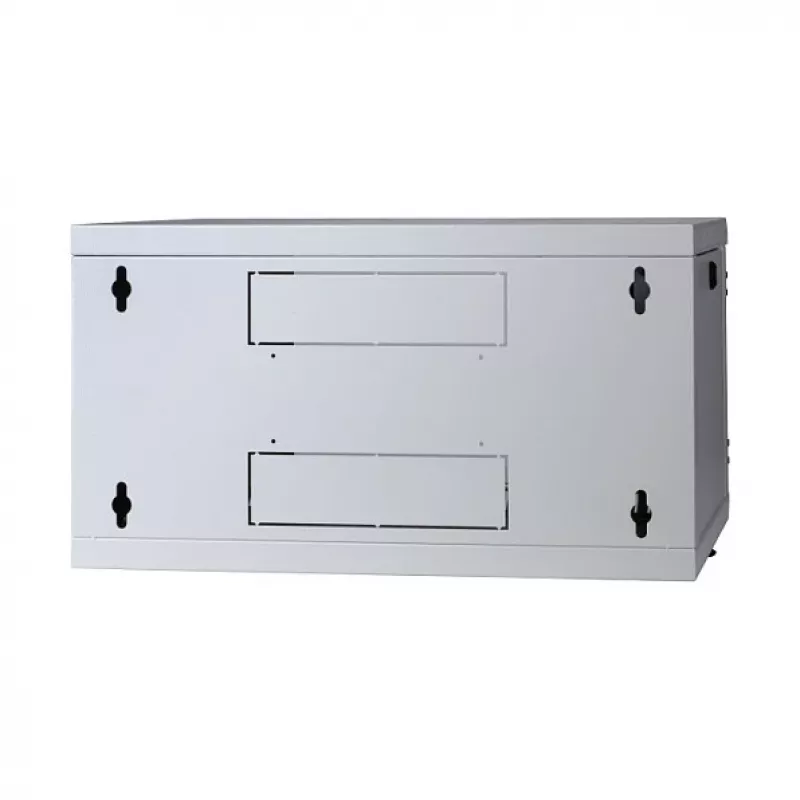

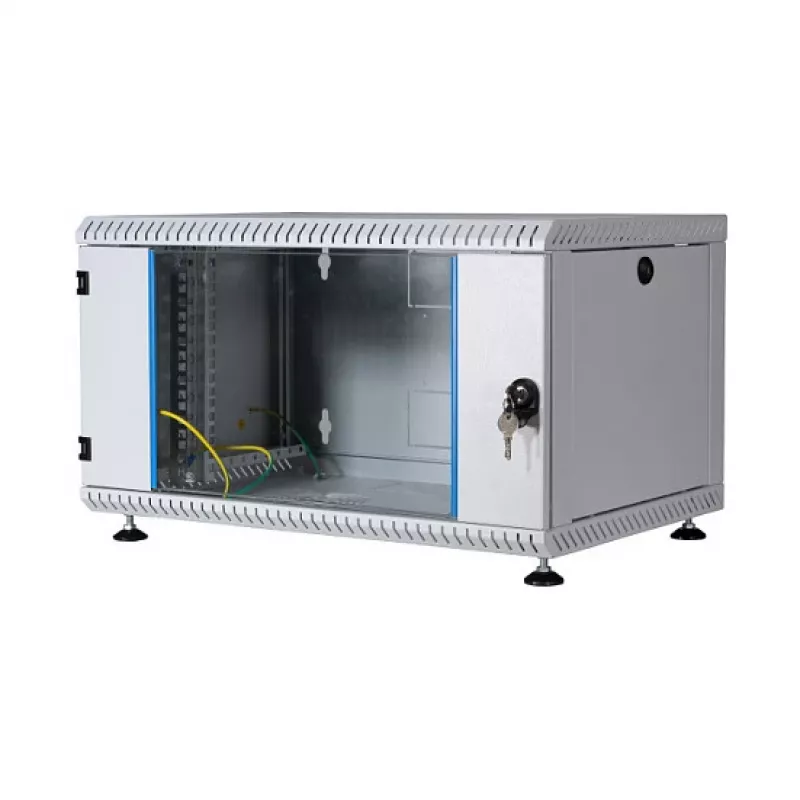

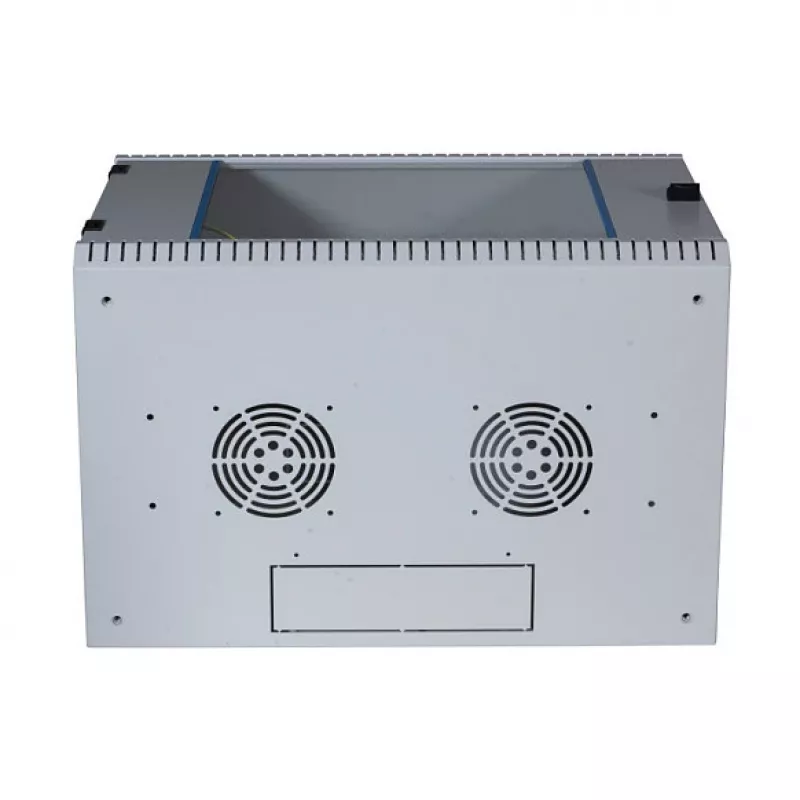

EFB Elektronik Armario de red de 1 cuerpo para montaje en pared gris claro RAL 7035 9U 19 pulgadas

The EFB Elektronik 1-Part Network Cabinet is a robust and reliable wall-mount enclosure designed for professional network installations. With a 9U height and 19-inch rack width, it provides ample space for switches, patch panels, and other network equipment. The cabinet is finished in light grey (RAL 7035) and features a tempered safety glass door with lock for secure equipment housing.

Advantages

This cabinet offers a compact yet spacious solution for wall-mounted network infrastructure. Its 1-part design ensures easy installation, while the removable and lockable side panels provide convenient access for cable management. The pre-punched cable entries at top and bottom simplify cable routing, and the passive ventilation keeps equipment cool without noise.

Suitable for

• Wall-mounted network cabinets in server rooms, offices, and industrial environments
• Housing 19-inch rack equipment such as switches, routers, patch panels, and UPS units
• Applications requiring secure, lockable enclosure with glass door visibility

Key specifications

• Product Type: Network Cabinet
• Mounting Type: Wall Mount
• Rack Units: 9U
• Rack Width: 19 inch (48.3 cm)
• Cabinet Type: 1-Part (Single Section)
• External Dimensions (W x D x H): 600 x 450 x 490 mm
• Color: Light Grey (RAL 7035)
• Material: Steel Sheet
• Front Door: Tempered Safety Glass Door with Lock
• Side Panels: Removable, Lockable
• Cable Entry: Top and Bottom (pre-punched)
• Protection Class: IP20
• Max. Load Capacity: 60 kg
• Rack Profiles: 2x 19-inch, Depth Adjustable
• Ventilation: Passive (perforated top/bottom)
• Assembly: Pre-assembled

Recommendations

For optimal cable management, use with EFB Elektronik patch panels and cable managers. Ensure wall mounting on a solid surface capable of supporting the cabinet's weight (up to 60 kg).
