Armario rack Lanview RCCTV002 0U, IP66, 600×300×550 mm, 40 kg, blanco

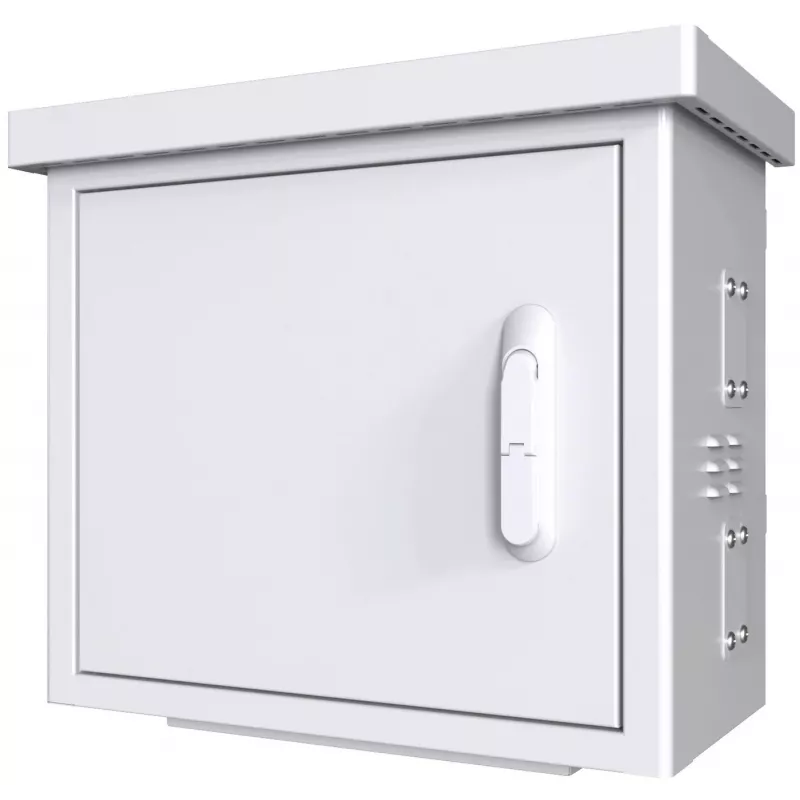

Lanview RCCTV002 is a 0U pole-type camera cabinet with IP66 protection, sized 600×300×550 mm and weighing 40 kg. The white steel enclosure is designed for outdoor surveillance and networking equipment that does not require internal rack mounting, providing a durable, dust- and water-resistant housing for junctions, power modules and small electronics.

Advantages

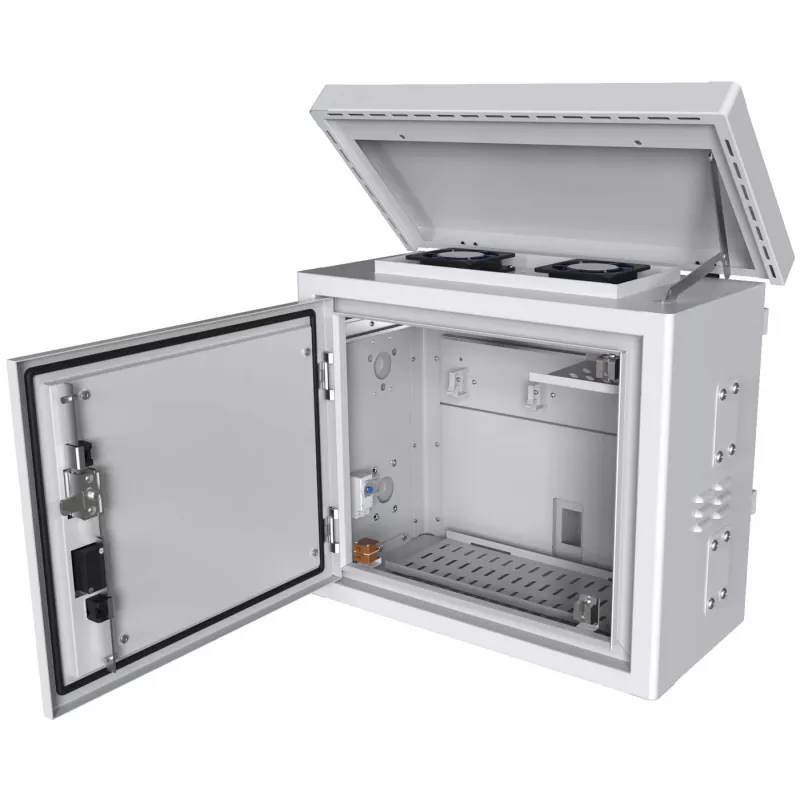

The cabinet features a double-wall structure with gaskets on the doors and top cap to create an insulated barrier that protects internal devices from weather and dust. An integrated fan module with two fans and a thermostat ensures active cooling, while a replaceable ventilation filter prevents dust and water ingress without significantly restricting airflow. DIN rails are fitted for mounting devices and electrical equipment, and the hinged top cap allows internal access to fan modules and components. Oval corners reduce wind impact on the pole-mounted enclosure. Pole mounting brackets are included for straightforward installation.

Suitable for

• Outdoor CCTV camera junctions and connections
• Power modules and small network or surveillance electronics
• Enclosures requiring IP66-rated dust and water protection

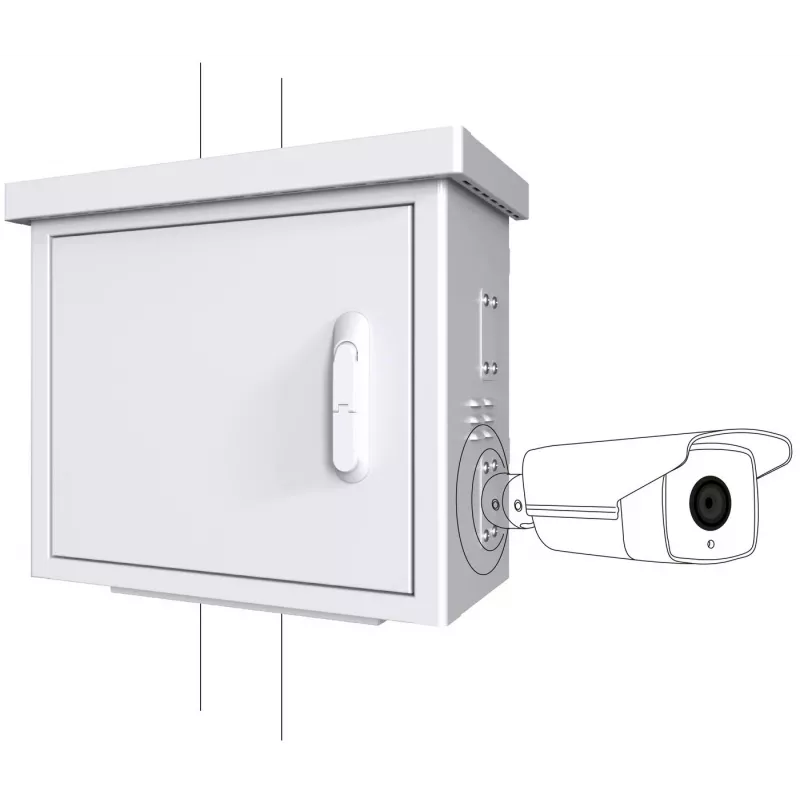

• Pole-mounted surveillance installations

Key specifications

• Model: Lanview RCCTV002 (MPN: RCCTV002)
• Dimensions (W×D×H): 600×300×550 mm
• Weight: 40 kg
• Rack capacity: 0U
• Ingress protection: IP66
• Colour: White (RAL7035)
• Material: Steel door, double-wall construction
• Included: Pole mounting brackets, fan module with 2 fans and thermostat, replaceable ventilation filter, DIN rails

How to use

Complete internal assembly of devices and cabling on the DIN rails before mounting. Fit the fan module and install the ventilation filter to maintain airflow and protection. Close and gasket all doors and the top cap to ensure IP66 sealing. Use the included pole mounting brackets to secure the cabinet to a suitable pole; oval corners and the pole-mount design reduce wind-related stress. Access the fan module and internal components by opening the hinged top cap from inside the cabinet when maintenance or adjustments are needed.

Recommendations

Install the cabinet at a height and location that allows safe access for maintenance. Periodically inspect and replace the ventilation filter, check gaskets for damage, and verify the thermostat-controlled fans operate correctly to maintain proper internal temperature and IP66 protection.
