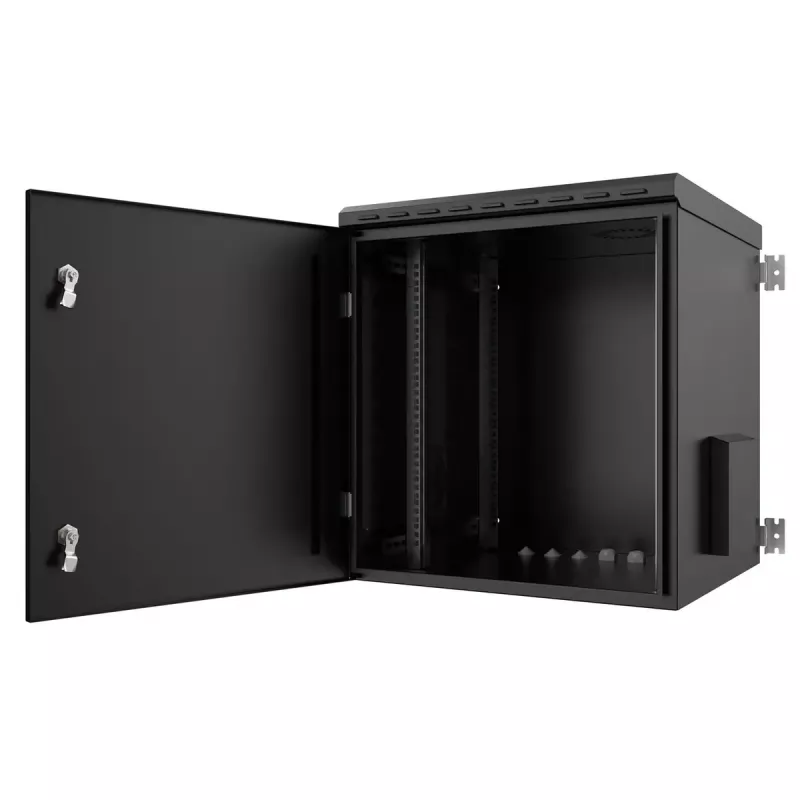

Armario rack Lanview RWMIP55W12U60B 12U negro IP55

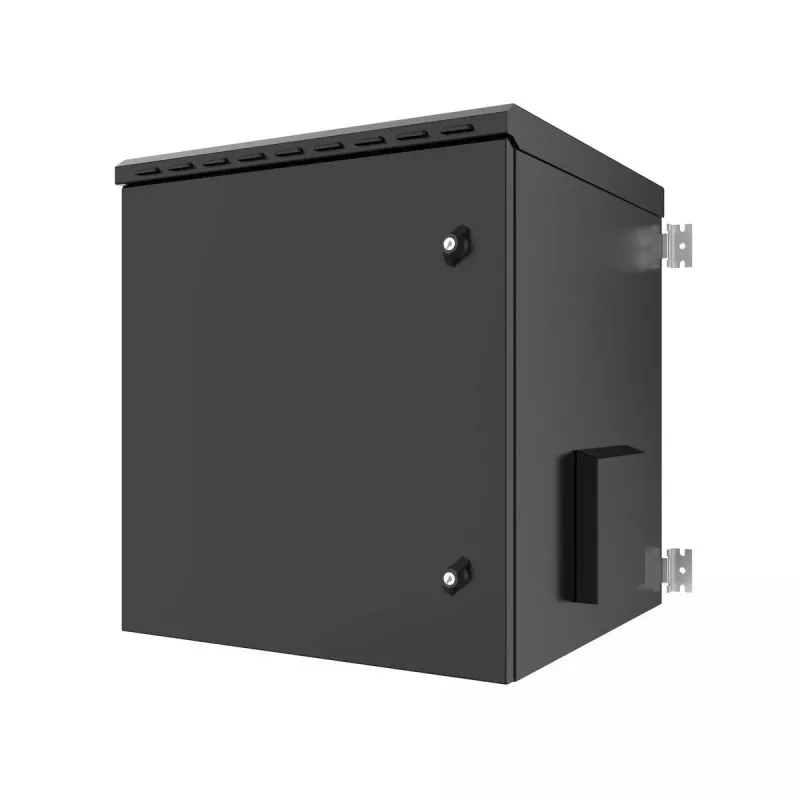

The Lanview RWMIP55W12U60B is a 12U, 19" rack cabinet with IP55 protection, measuring 600 x 600 x 630 mm and weighing 41 kg. It is designed to house standard 19" devices and equipment on four mounting rails within a 600×600 cabinet footprint, while providing dust and water resistance for use in demanding environments.

Advantages

The cabinet's hinged top cover allows easy access to fan modules, and fixed louvers on the roof enable hot air extraction. Passive ventilation is supported by 125×125 mm dust filters on both the right and left sides. Bottom cable entry is protected with multiple sealed glands (1 × PG48, 2 × PG21) and three 28 mm PVC blind plugs; the bottom closure panel is fully detachable for flexible installation and routing.

Suitable for

• Mounting 19" network and server equipment up to 12U
• Indoor and semi-protected outdoor installations requiring IP55 protection
• Environments where dust and occasional water exposure are possible

Key specifications

• Model: Lanview RWMIP55W12U60B
• Rack capacity: 12U
• IP rating: IP55
• Dimensions (W×D×H): 600 × 600 × 630 mm
• Weight: 41 kg
• Device compatibility: 19" equipment
• Colour: Black
• Cable entries: 1 × PG48 gland, 2 × PG21 glands, 3 × 28 mm PVC blind plugs

How to use

Install the cabinet on a stable surface and mount 19" devices on the four internal rails. Use the detachable bottom panel and supplied glands or plugs to route cables through the sealed entries, ensuring seals are correctly tightened to retain IP55 protection. Access fan modules from the hinged top cover for maintenance; use the roof louvers and side filters to manage airflow.

Recommendations

Ensure cable glands and blind plugs are properly fitted after installation to maintain IP55 sealing. Regularly inspect and clean the 125×125 mm dust filters and roof louvers to prevent airflow obstruction and to preserve thermal performance.
