Armario rack Lanview RDL12U68BL 12U negro 600 kg IP20

The Lanview RDL12U68BL is a freestanding 12U rack cabinet designed for indoor server and cabling installations. It measures W:600 x D:800 x H:719 mm, supports up to 600 kg of equipment and has an IP20 rating. The cabinet is constructed from robust materials, features adjustable installation rails for depth, and is available in a flatpack option to reduce transport and storage volume. The unit weighs 35 kg and has a black finish.

Advantages

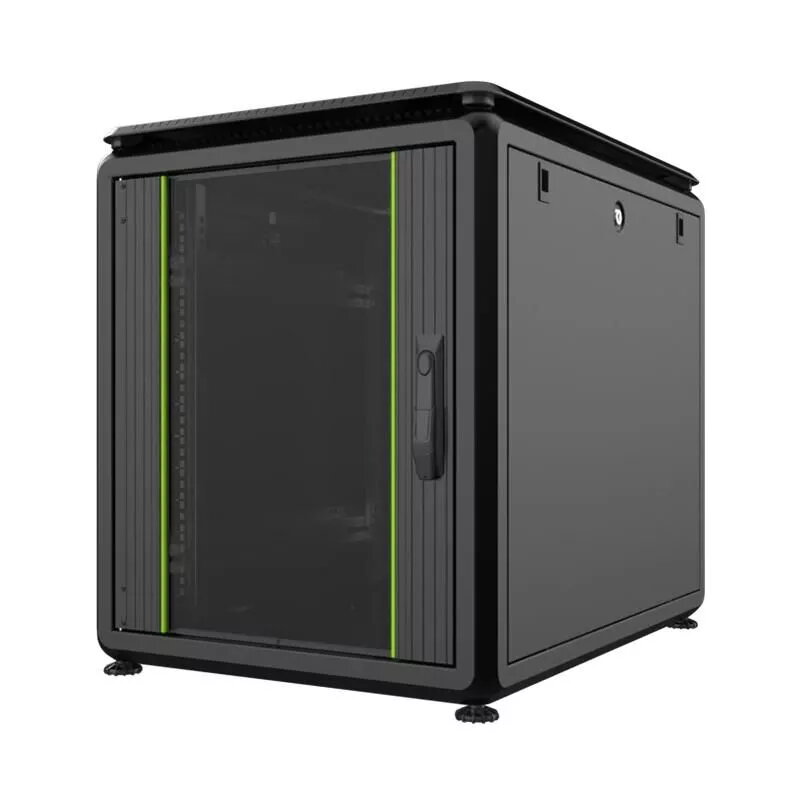

The cabinet offers a strong yet cost-effective structure with an advanced profile design and easy assembly that requires only simple tools. It supports efficient cabling with integration for vertical cable managers, a wide bottom cable entry with a rubber-edged sliding module to protect and seal cables, and Tire-Up side brackets to route and secure cable bundles. Front access uses lockable, horizontally split tempered smoke glass doors in metal frames, while the rear and side panels are lockable and removable to simplify installation and maintenance. Extra support points and reinforced side brackets increase overall rigidity.

Suitable for

• Small server rooms and network closets
• Patch panels, switches and 19" rack equipment
• Indoor IT installations requiring IP20 protection

Key specifications

• Model: Lanview RDL12U68BL
• Rack capacity: 12U
• Dimensions (W x D x H): 600 x 800 x 719 mm
• Maximum load: 600 kg
• Weight: 35 kg
• IP rating: IP20
• Colour: Black

How to use

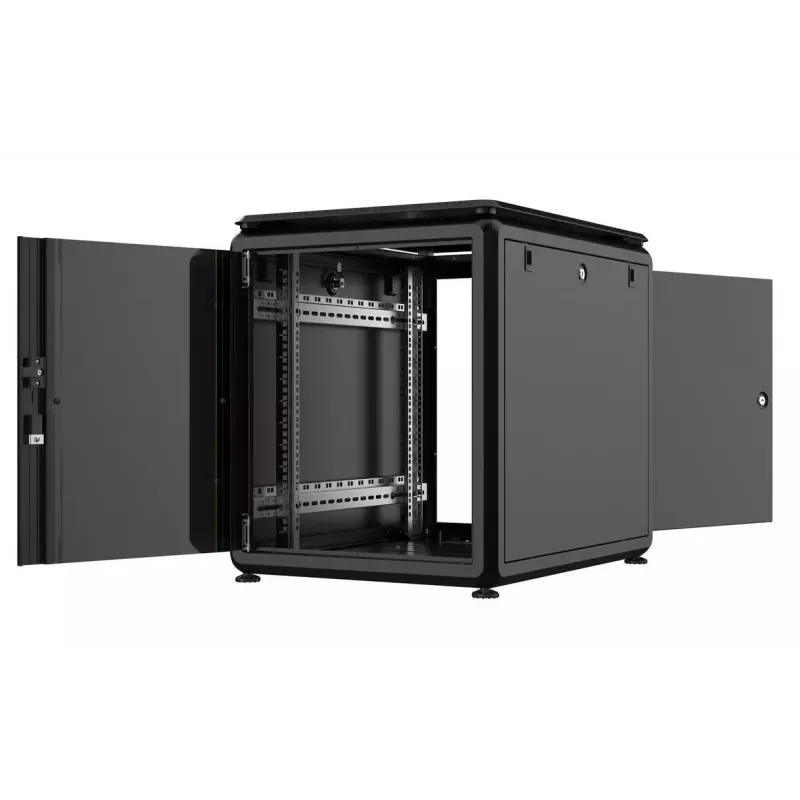

Position the cabinet on a level indoor surface and, if supplied flatpack, assemble following the manufacturer instructions using standard tools. Adjust the installation rails to the required depth for your 19" equipment, mount patch panels, switches or servers to the rails, and route cables through the bottom cable entry and vertical cable manager as needed. Lock the front glass door and secure side and rear panels during normal operation. For relocation or maintenance, remove the barrel-locked rear and side panels to access internal components.

Recommendations

The cabinet is intended for indoor use in environments matching IP20 protection; avoid exposure to moisture or dust beyond this rating. Distribute equipment weight evenly across rack rails and use the Tire-Up brackets and cable managers to maintain clear airflow and organized cabling.
