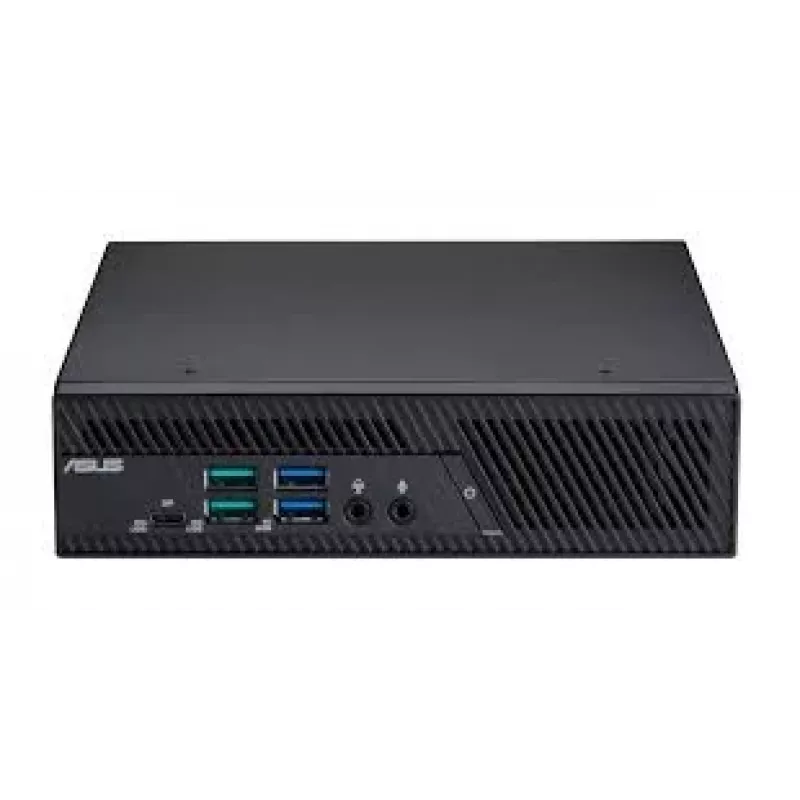

ASUS ExpertCenter PB64-B50078MH mini PC, Intel Core Ultra 5 225, 8 GB DDR5, 256 GB SSD, FreeDOS

The ASUS ExpertCenter PB64-B50078MH is a compact Mini PC powered by an Intel Core Ultra 5 225 processor with Intel graphics, designed for business and office applications. It features 8 GB of DDR5 memory and a 256 GB NVMe SSD, and comes with FreeDOS installed.

Key features

• Intel Core Ultra 5 225 processor with 10 cores (6 performance, 4 efficient) and 10 threads
• 8 GB DDR5 memory, expandable up to 64 GB via 2x SO-DIMM slots
• 256 GB M.2 NVMe SSD with PCIe 4.0 interface
• Wi-Fi 7 and Bluetooth 5.4
• Multiple USB ports: 1x USB 2.0, 2x USB 3.2 Gen 1 Type-A, 3x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x USB4 Gen 2x2
• 2x DisplayPort 1.4, 1x RJ-45 Ethernet, combined headphone/microphone jack, microphone input, DC-in
• Compact 1.35 L chassis, can be positioned horizontally or vertically
• Kensington cable lock slot

Specifications

• Brand: Asus
• MPN: 90MS0361-M002E0
• Product colour: Black
• Processor model: Core Ultra 5 225
• Processor manufacturer: Intel
• Processor family: Core Ultra 5
• Processor generation: Intel Core Ultra (Series 2)
• Number of processor cores: 10
• Processor threads: 10
• Processor boost frequency: 4.9 GHz
• Performance cores: 6
• Efficient cores: 4
• Performance-core max turbo frequency: 4.9 GHz
• Efficient-core max turbo frequency: 4.4 GHz
• Performance-core base frequency: 3.3 GHz
• Efficient-core base frequency: 2.7 GHz
• Processor cache: 20 MB
• Processor cache type: Smart Cache
• Processor base power: 65 W
• Maximum turbo power: 121 W
• Neural processor unit (NPU): Intel AI Boost
• NPU feature: Sparsity Support
• NPU feature: Windows Studio Effects support
• AI software frameworks supported by NPU: Windows ML, OpenVINO, DirectML, WebNN, ONNX RT
• Total processor performance up to: 23 TOPS
• NPU performance up to: 13 TOPS
• GPU performance up to: 4 TOPS
• Internal memory: 8 GB
• Maximum RAM: 64 GB
• Memory type: DDR5-SDRAM
• Memory slots: 2x SO-DIMM
• Total storage capacity: 256 GB
• Storage media: SSD
• Total SSD capacity: 256 GB
• Number of SSDs installed: 1
• SSD capacity: 256 GB
• SSD interface: PCI Express 4.0
• SSD feature: NVMe
• SSD form factor: M.2
• Optical drive type: No
• Built-in graphics adapter: Intel Graphics
• Discrete graphics adapter model: Not available
• On-board graphics adapter family: Intel Graphics
• Motherboard chipset: Intel B860
• Product type: Mini PC
• Built-in speakers: Yes
• Ethernet/LAN: Yes
• Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
• Cabling technology: 10/100/1000Base-T(X)
• LAN controller: Intel I226-V
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Wi-Fi controller model: Intel Wi-Fi 7 BE202
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB Power Delivery: Yes
• USB power delivery up to: 100 W
• USB4 Gen 2x2 ports quantity: 1
• DisplayPort ports quantity: 2
• DisplayPort version: 1.4
• Ethernet LAN (RJ-45) ports: 1
• Combined headphone/microphone jack: Yes
• Microphone input: Yes
• DC-in jack: Yes
• Power supply: 120 W
• Chassis type: Mini PC
• Colour name: Black
• Volume: 1.35 l
• Supported positioning: Horizontal/Vertical
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Operating system installed: FreeDOS
• Width: 175 mm
• Depth: 175 mm
• Height: 44.2 mm
• Weight: 1.2 kg
• Certification: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
