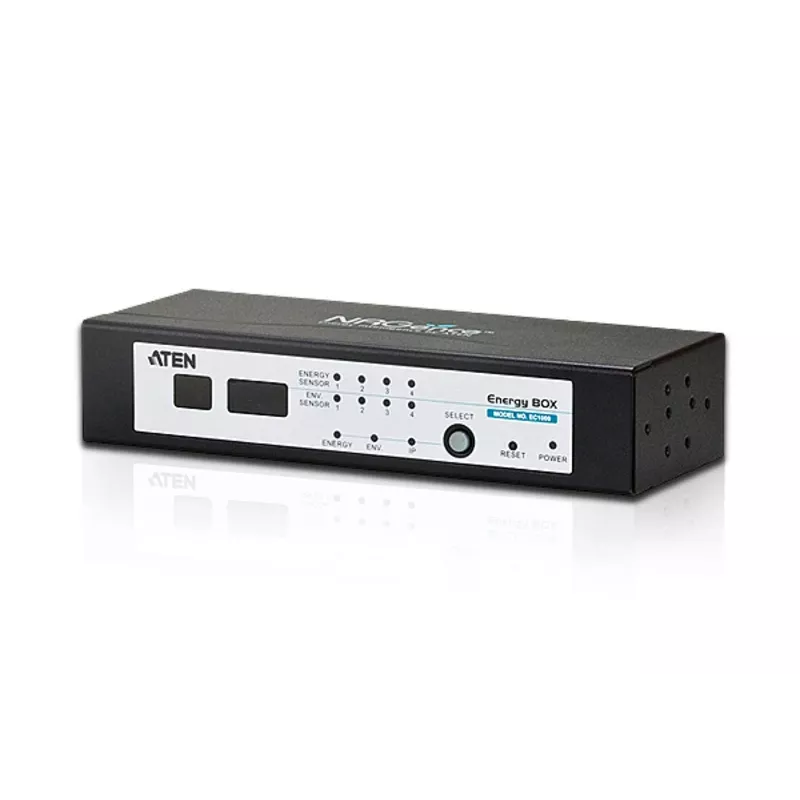

ATEN NRGence EC1000 Energy Box unidad de monitorización PDU

Monitor voltage, current, power, energy, and power factor across your entire ATEN eco PDU deployment with the EC1000 Energy Box, a network-enabled monitoring unit that delivers real-time power metrics over IP. With support for up to 256,000 data records and threshold-based alerts via email or SNMP trap, this compact device turns raw PDU data into actionable energy intelligence.

Overview

The ATEN EC1000 is a dedicated energy measurement device designed to work seamlessly with ATEN's eco PDU series, including PE and PD models. It connects to compatible PDUs via a USB Type-B interface and provides a single RJ-45 Ethernet port for remote access. Once connected, the EC1000 continuously monitors key electrical parameters: voltage (V), current (A), power (kW), energy (kWh), and power factor (PF). This data is accessible through a web-based GUI, allowing facility managers and IT administrators to track energy usage from anywhere on the network.

What stands out

• Monitors five critical power parameters for complete energy visibility
• Supports up to 256,000 data records for long-term trend analysis
• Threshold-based alerts via email or SNMP trap for proactive management
• Compatible with ATEN eco PDU series (PE and PD models)
• Secure remote access with SSL encryption and password protection
• Flexible mounting options: rack mount (with optional kit) or wall mount

Technical details

• Network interface: 1 x RJ-45 Ethernet (10/100 Mbps)
• PDU connection: 1 x USB Type-B
• Data export/firmware interface: 1 x USB Type-A
• Management protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SNMP V1/V2c/V3, NTP, DNS
• Input power: 5V DC, 2.6A
• Power consumption: 3.5W
• Operating temperature: 0 - 50°C (32 - 122°F)
• Operating humidity: 0 - 80% RH, non-condensing
• Certifications: CE, FCC, RoHS

Our verdict

The ATEN EC1000 Energy Box is an essential tool for any data center or facility using ATEN eco PDUs. Its comprehensive monitoring capabilities and robust alerting features make it easy to optimize energy usage and prevent downtime. While it requires a compatible PDU, its value in energy management is undeniable.
