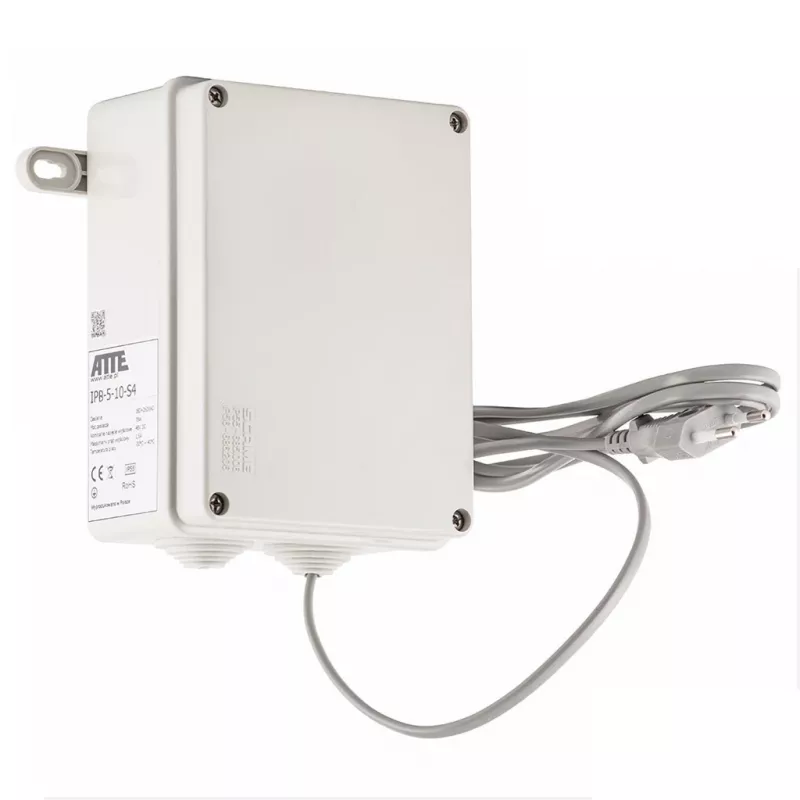

ATTE IPB-5-10A-S4 Switch PoE+ no gestionado de 5 puertos, 4 puertos PoE, presupuesto 60W, 10/100 Mbps, sobremesa/pared, carcasa metálica

The ATTE IPB-5-10A-S4 is a compact and reliable 5-port unmanaged PoE+ switch designed for small to medium-sized networks. It provides 4 PoE+ ports (IEEE 802.3af/at) with a total power budget of 60W, delivering up to 30W per port to power devices such as IP cameras, VoIP phones, and wireless access points. The fifth port serves as a non-PoE uplink. With a fanless metal housing, it ensures silent operation and durability, making it ideal for desktop or wall-mount installations in offices, retail, or home environments.

Advantages

This switch simplifies network expansion by combining data and power over a single Ethernet cable, eliminating the need for separate power outlets for each device. Its plug-and-play design requires no configuration, saving time and effort. The robust metal housing and fanless cooling guarantee long-term reliability and quiet operation, while the 60W PoE budget supports a variety of powered devices.

Suitable for

• Small office/home office (SOHO) networks
• IP surveillance systems (up to 4 cameras)
• VoIP phone deployments
• Wireless access point installations
• Retail or hospitality environments requiring simple network expansion

Key specifications

• Switch type: Unmanaged
• Total Ethernet ports: 5 x RJ45 (10/100 Mbps)
• PoE+ ports: 4 (Ports 1-4), IEEE 802.3af/at, up to 30W per port
• Total PoE power budget: 60W
• Uplink port: 1 x 10/100 Mbps (Port 5, non-PoE)
• Switching capacity: 1 Gbps
• Packet forwarding rate: 0.74 Mpps
• MAC address table: 1K entries
• Power supply: External DC 52V/1.25A adapter
• Operating temperature: -10°C to 55°C
• Mounting: Desktop or wall-mountable
• Housing material: Metal
• Cooling: Fanless
• LED indicators: Power, Link/Act, PoE status

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure the total power draw of connected PoE devices does not exceed 60W. This switch is best suited for applications requiring reliable, low-cost network connectivity with PoE support.
