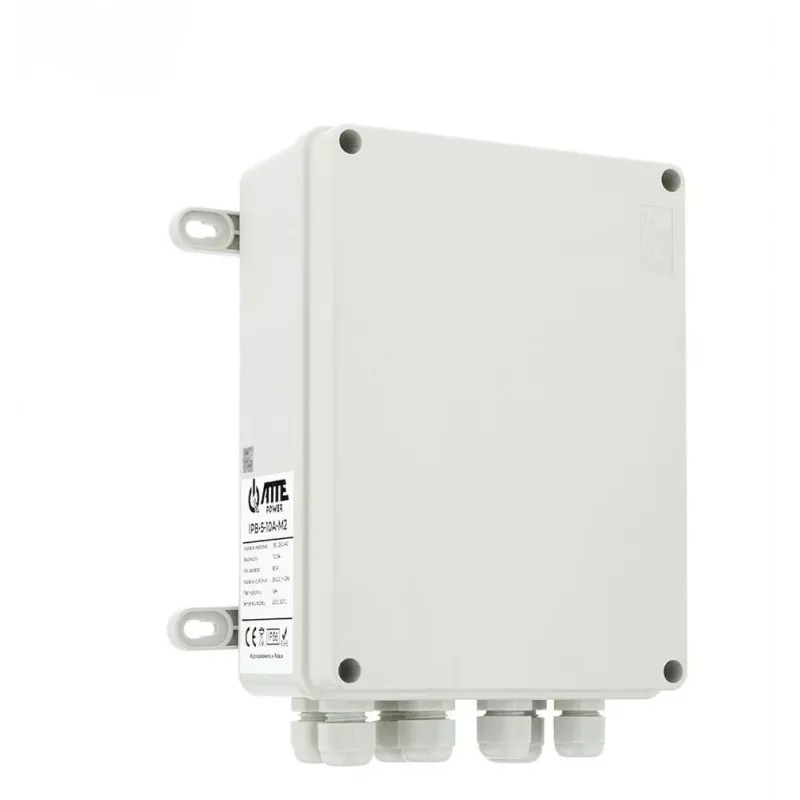

ATTE PoE Switch IPB-5-10A-M2 5 puertos no gestionado industrial montaje en carril DIN/pared

The ATTE PoE Switch IPB-5-10A-M2 is a robust 5-port unmanaged industrial switch designed for reliable Power over Ethernet (PoE) connectivity. With 4 PoE+ ports and a total power budget of 58W, it delivers both data and power to devices such as IP cameras, access points, and VoIP phones. Housed in a durable metal enclosure, it supports DIN rail and wall mounting, making it ideal for harsh environments.

Advantages

This switch offers plug-and-play installation with no configuration required, saving time and reducing complexity. Its industrial-grade design ensures stable operation in extreme temperatures from -25°C to +65°C, while surge protection safeguards connected equipment. The compact form factor and versatile mounting options allow for flexible deployment in control cabinets or on walls.

Suitable for

• Industrial automation networks
• IP surveillance systems
• Wireless access point installations
• VoIP phone deployments
• Remote monitoring applications

Key specifications

• 5 Ethernet ports: 4 PoE+ (10/100 Mbps) + 1 uplink (10/100 Mbps)
• PoE standard: IEEE 802.3af/at, up to 30W per port
• Total PoE power budget: 58W
• Switching capacity: 1 Gbps
• MAC address table: 1K entries
• Power input: DC 48-56V
• Max power consumption: 60W (including PoE output)
• Operating temperature: -25°C to +65°C
• Storage temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing

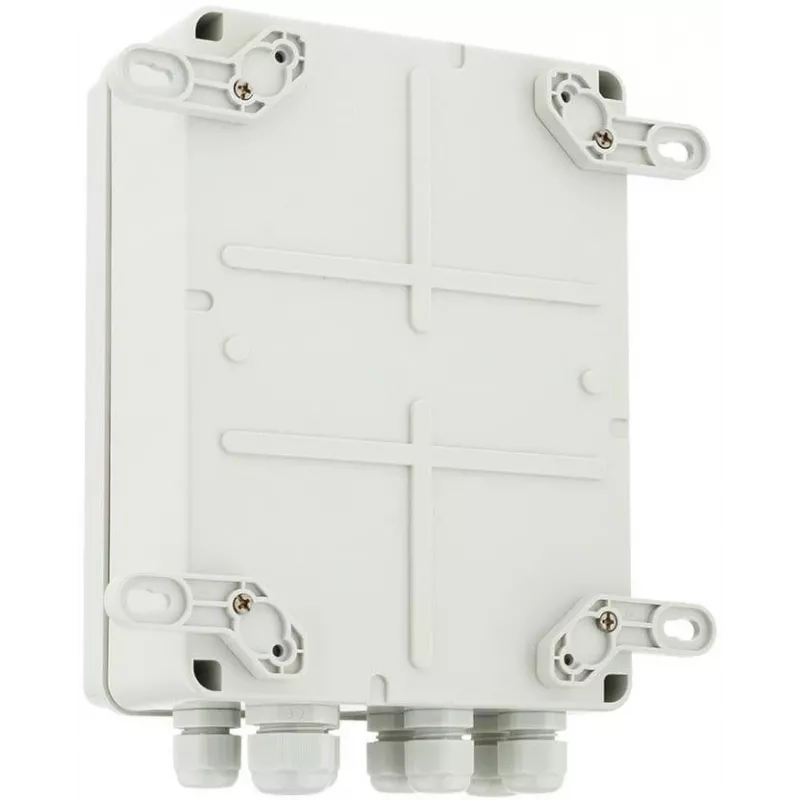

• Housing: Metal, DIN rail / wall mountable
• LED indicators: Power, Link/Act, PoE
• Protection: Overload, short-circuit, surge

Recommendations

For optimal performance, use a compatible DC power supply (48-56V) and ensure proper ventilation. This switch is ideal for expanding your network in industrial or commercial settings where reliability and PoE capability are essential.
