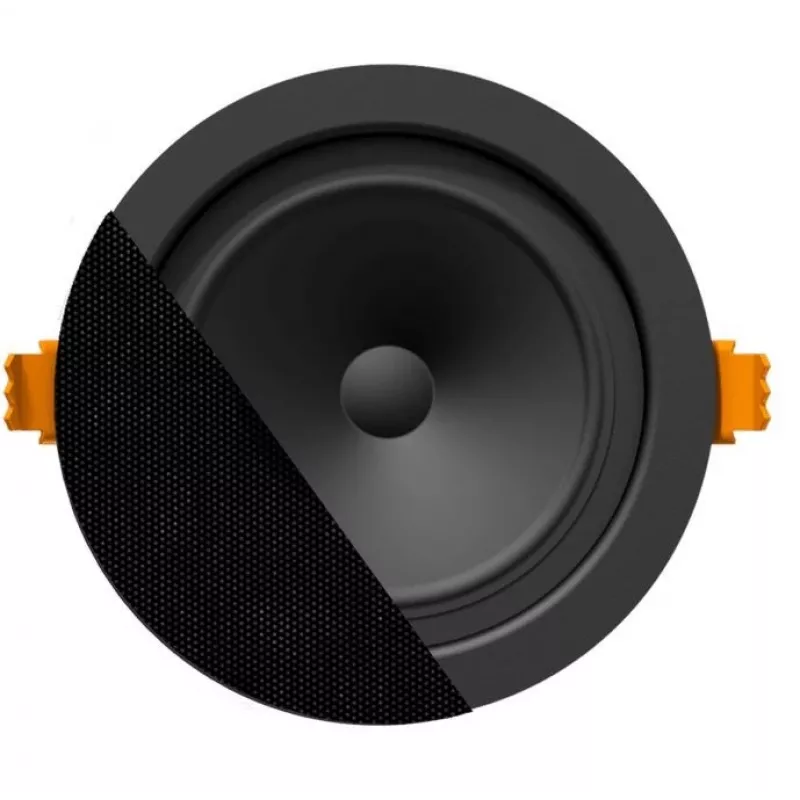

AUDAC CENA306/B Altavoz de techo 6.5 inch 100V/8Ω 40W negro

The AUDAC CENA306/B is a 6.5-inch ceiling speaker that delivers clear, full-range audio with a 150° conical dispersion, making it an ideal choice for background music and paging in commercial spaces. Its 100V transformer with multiple taps allows flexible integration into distributed audio systems, while the 8Ω bypass enables direct connection to standard amplifiers.

Advantages

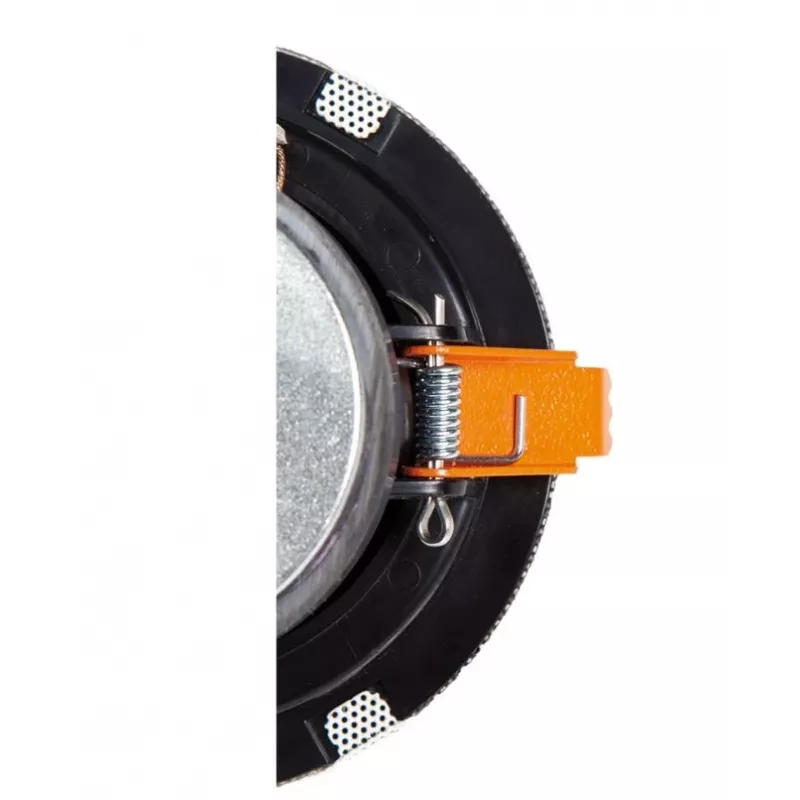

This speaker combines a robust ABS housing with a steel grille, ensuring durability and a discreet appearance. The spring clamp terminals simplify installation, and the IP40 rating protects against dust ingress. With a maximum SPL of 106 dB and a frequency response from 65 Hz to 20 kHz, it provides articulate sound for speech and music.

Suitable for

• Retail stores and boutiques
• Restaurants and cafés
• Hotels and lobbies
• Offices and conference rooms
• Educational facilities

Key specifications

• 6.5" full-range driver
• Power handling: 40 W RMS (8Ω), 6 W (100V)
• Transformer taps: 6W, 3W, 1.5W, 0.75W
• Sensitivity: 90 dB (1W/1m)
• Maximum SPL: 106 dB
• Frequency response: 65 Hz – 20 kHz (±3 dB)
• Dispersion: 150° conical
• Cutout diameter: 186 mm
• Mounting depth: 75 mm
• Outer diameter: 205 mm
• Material: ABS housing, steel grille
• Colour: Black
• Connection: Spring clamp terminal
• IP rating: IP40

Recommendations

For seamless integration into 100V line systems, pair the CENA306/B with AUDAC amplifiers and use the appropriate tap setting based on the room size and required sound pressure level. Ensure the mounting surface can support the speaker and that the cutout is precise for a secure fit.
