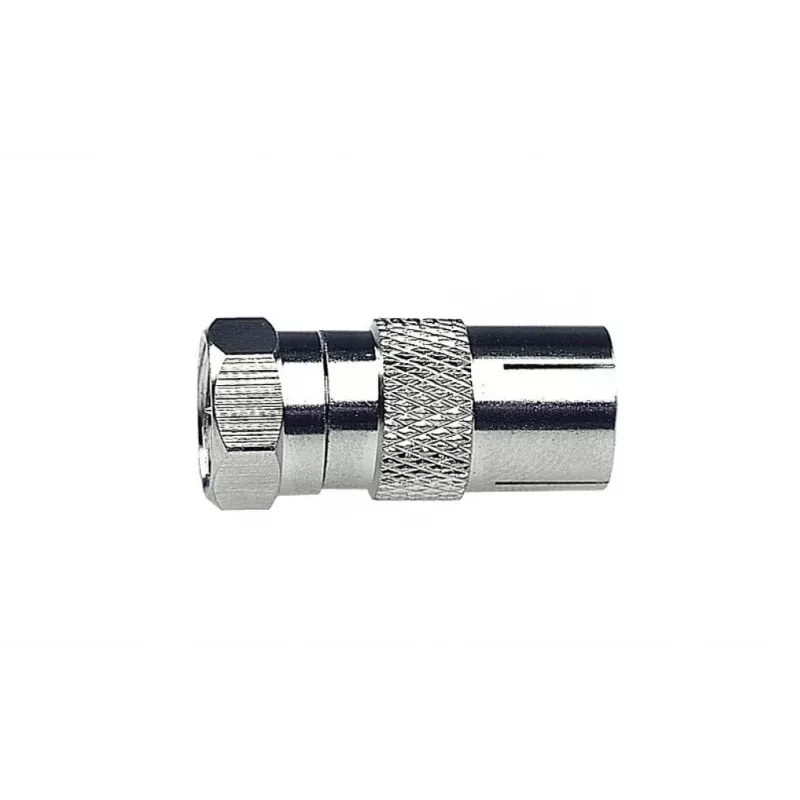

AXING CFA100 adaptador IEC conector hembra a conector F 75 ohmios CFA00100

Coaxial adapter converting an IEC female antenna socket to an F-type male connector. Nickel-plated brass construction ensures reliable signal transfer for TV, SAT, DVB-T, DVB-C, and DVB-S applications up to 2400 MHz.

Advantages

High shielding factor over 90 dB and low insertion loss under 0.5 dB maintain signal integrity. Return loss above 18 dB minimizes reflections. Straight inline design for easy installation.

Suitable for

• Connecting devices with different coaxial connector types
• Antenna and satellite cable systems
• TV and radio distribution networks

Key specifications

• Connector 1: IEC female
• Connector 2: F-type male
• Impedance: 75 Ohm
• Frequency range: 0 - 2400 MHz
• Material: Nickel-plated brass
• Colour: Silver

Recommendations

Use this adapter to bridge IEC and F-type connections in coaxial installations where a direct cable swap is impractical.
