AZO Digital Convertidor de tensión 40-130 VDC / 13.8 VDC PS-250-12V 250W con aislamiento galvánico, IP21

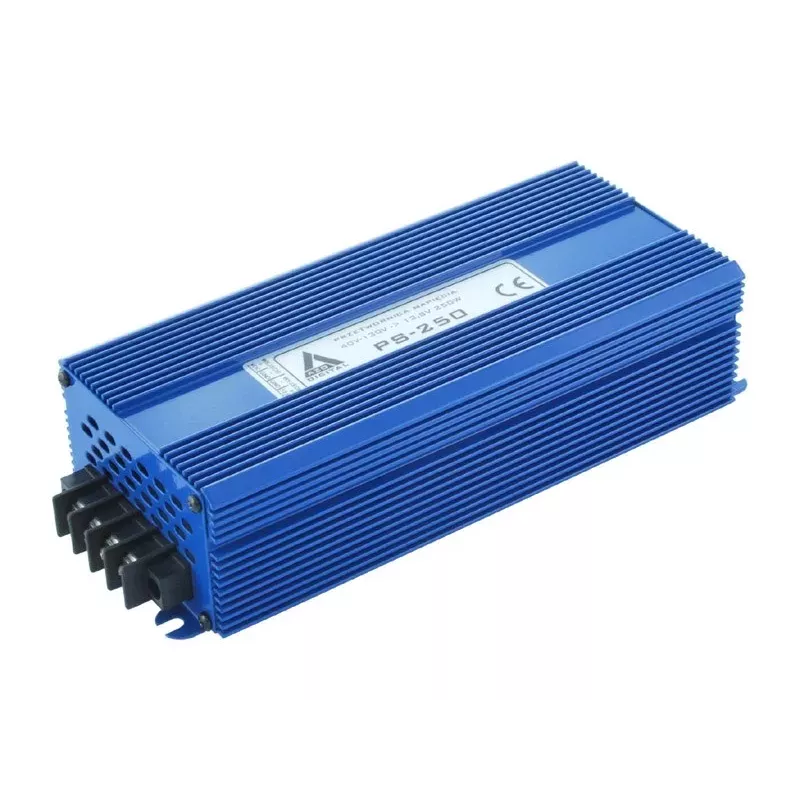

The AZO Digital PS-250-12V is a high-performance DC-DC voltage converter designed to convert a wide input voltage range of 40-130 VDC to a stable 13.8 VDC output. With a continuous output power of 250W and a maximum output current of 18.1A, this converter is ideal for industrial and telecommunications applications requiring reliable power conversion with galvanic isolation. Its IP21-rated enclosure provides protection against solid objects larger than 12.5mm, making it suitable for indoor use in controlled environments.

Advantages

Galvanic isolation ensures safety and reduces noise interference between input and output circuits. The wide input voltage range accommodates various DC power sources, while passive cooling ensures silent operation and long-term reliability. Built-in protections against overvoltage, reverse polarity, overload, short circuit, and overtemperature safeguard both the converter and connected equipment.

Suitable for

• Industrial control systems
• Telecommunications equipment
• Battery charging systems
• Renewable energy installations
• Automation and process control

Key specifications

• Input Voltage Range: 40-130 VDC
• Nominal Output Voltage: 13.8 VDC
• Continuous Output Power: 250 W
• Maximum Output Current: 18.1 A
• Conversion Type: DC-DC Converter
• Isolation: Galvanic Isolation
• Efficiency: >85% (Typical)
• Enclosure Protection Rating: IP21
• Cooling Method: Passive
• Operating Temperature Range: -25°C to +55°C
• Output Ripple and Noise: <100mVp-p
• Standby Current: <50mA
• Mounting Type: Surface Mount (Screw Terminals)
• Input/Output Connector Type: Screw Terminals

Recommendations

For optimal performance, ensure proper ventilation around the converter and use appropriately rated wiring for input and output connections. Verify that the input voltage does not exceed the specified range to avoid damage. This converter is not suitable for outdoor use without additional weatherproofing.
