AZO Digital Convertidor de tensión 40-130 VDC / 24 VDC PS-250W-24V 300W con aislamiento galvánico, IP21

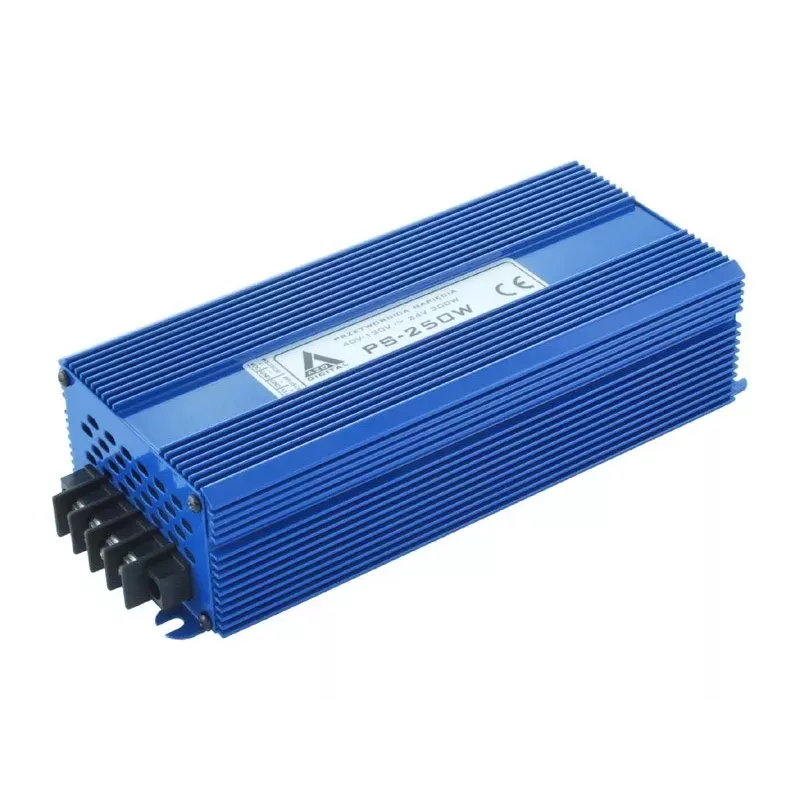

The AZO Digital PS-250W-24V is a high-performance voltage converter designed to convert a wide input voltage range of 40-130 VDC to a stable 24 VDC output. With a continuous output power of 250 W and peak power of 300 W, this converter is ideal for industrial applications requiring reliable and isolated power conversion. Its galvanic isolation ensures safety and noise reduction, while the IP21 rating provides protection against solid objects larger than 12 mm. The passive cooling design ensures silent operation and long-term reliability.

Advantages

This voltage converter offers high efficiency (>90%), robust protection features (overload, short circuit, overvoltage, overtemperature, input reverse polarity), and a wide operating temperature range (-25°C to +55°C). The compact aluminum housing and wall-mountable design make it easy to integrate into existing systems.

Suitable for

• Industrial control systems
• Telecommunications equipment
• Automation and process control
• Battery-powered systems requiring stable 24 VDC

Key specifications

• Input Voltage: 40-130 VDC
• Output Voltage: 24 VDC
• Continuous Output Power: 250 W
• Peak Output Power: 300 W (30s)
• Continuous Output Current: 10.4 A
• Peak Output Current: 12.5 A
• Efficiency: >90%
• Isolation: Galvanic, 1500 V
• Ingress Protection: IP21
• Protection: Overload, Short Circuit, Overvoltage, Overtemperature, Input Reverse Polarity
• Operating Temperature: -25°C to +55°C
• Output Ripple & Noise: <100 mVp-p
• Cooling: Passive (Convection)
• Connectors: Screw Terminals
• Housing: Aluminum
• Mounting: Wall Mount

Recommendations

For optimal performance, ensure proper ventilation and mounting on a non-flammable surface. This converter is suitable for use in dry indoor environments.
