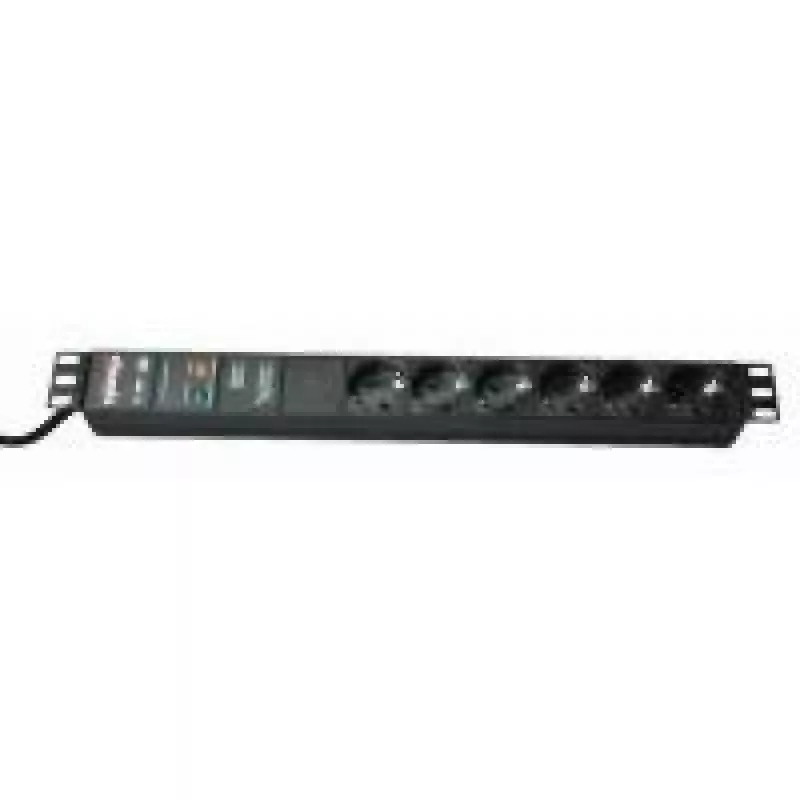

Bachmann 333.536 Unidad de distribución de alimentación

The Bachmann 333.536 is a 1U rack-mountable power distribution unit with six earthed AC outlets and an attached 2.0 m H05VV-F 3G 1.50 mm² power cable. It is supplied without an on/off switch and uses a right-angle plug with earthing contact. The unit is designed for installation in server racks and provides a compact, black form factor suitable for data centers and server rooms.

Advantages

Provides six earthed socket outlets in a 1U rack format, enabling organized power distribution for multiple devices. The fitted 2.0 m H05VV-F 3G 1.50 mm² cable with a right-angle earthed plug simplifies routing within racks. Over-voltage protection helps safeguard connected equipment. The black finish integrates visually with standard rack equipment.

Suitable for

• Server racks in data centers
• Small server rooms and network cabinets
• Powering multiple IT devices such as servers, switches, and storage units

Key specifications

• Model: Bachmann 333.536
• Rack height: 1U
• Number of outlets: 6 x earthed AC sockets
• Cable: 2.0 m H05VV-F 3G 1.50 mm², black
• Plug: right-angle with earthing contact
• Input voltage: nominal 230 V, 50 Hz
• Over-voltage protection: yes
• MPN: 333.536, EAN: 4016514019496

How to use

Mount the unit in a 19-inch rack occupying 1U of space. Route the attached 2.0 m power cable to an appropriate earthed mains outlet and connect the right-angle plug. Plug equipment into the six earthed sockets, ensuring total load does not exceed the rack’s or building circuit’s rated capacity. Verify grounding and over-voltage protection status after installation.

Recommendations

Install the unit in a well-ventilated rack space and distribute connected loads across the outlets to avoid overloading a single circuit. Use only within the specified nominal voltage and frequency and check local electrical codes for proper earthing and installation practices.
