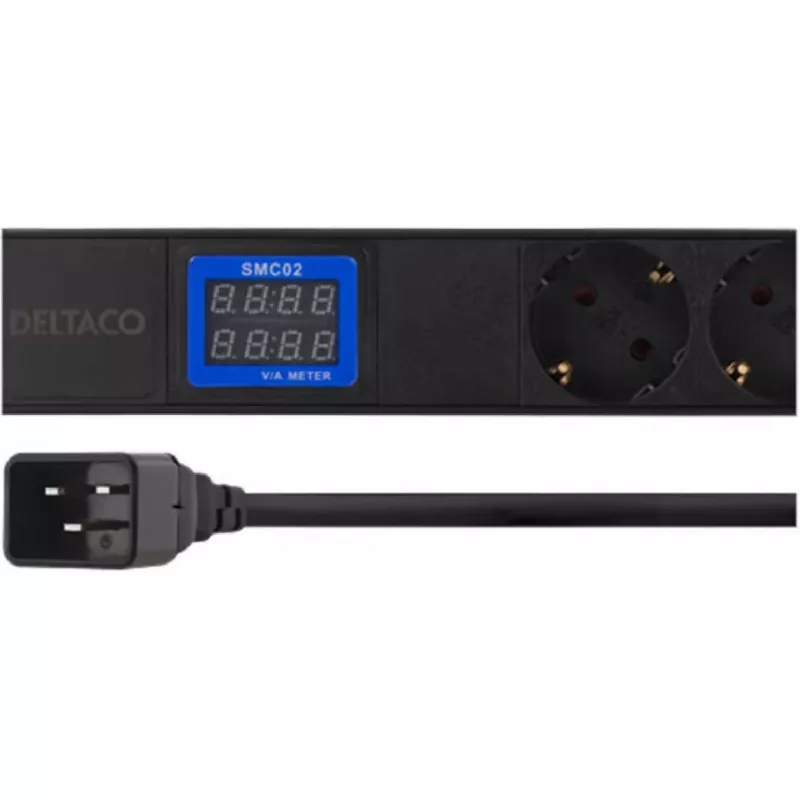

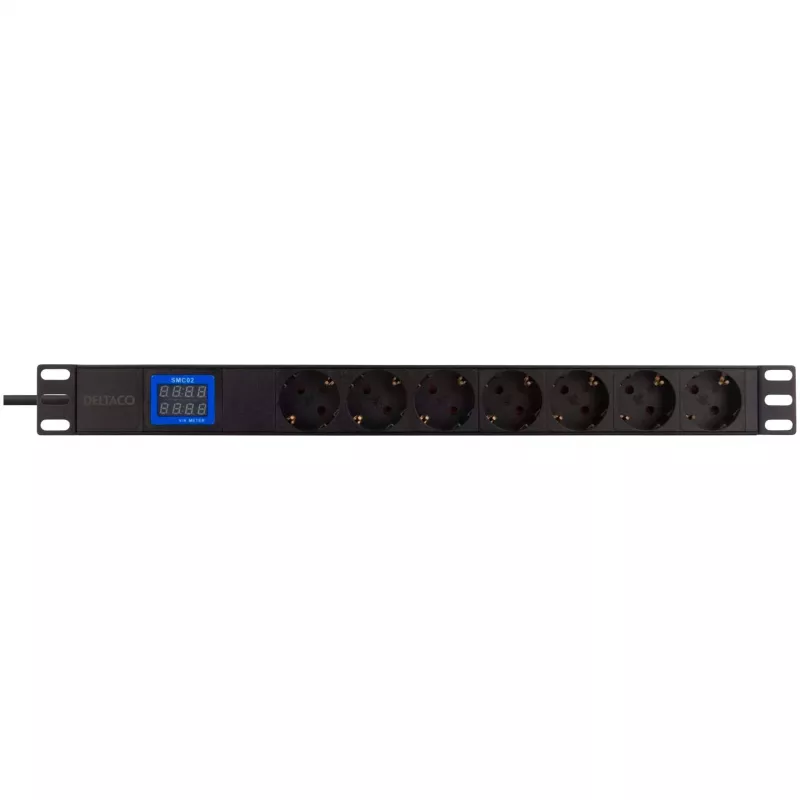

Unidad de distribución de corriente PowerWalker 10133010 PDU 1U negra, tomas Type-F, conector hembra C20, 16 A, 3500 W, cable de 2 m

PowerWalker 10133010 PDU 1U Black is a rack-mounted power distribution unit designed for vertical installation in 19-inch server racks. It occupies 1U of rack space and delivers Type F AC outlets fed via a C20 coupler and a 2 m supply cable. Rated for up to 16 A and 3500 W, the compact black housing (45 × 45 mm cross-section, 485 mm height) is intended to distribute mains power to servers, network equipment and peripherals while keeping the installation neat when mounted at the rear of the rack.

Advantages

The unit's 1U form factor and vertical mounting orientation reduce occupied space and help maintain cable routing inside the rack. Type F outlets provide compatibility with widely used European plugs while the C20 coupler enables connection to standard rack power infrastructure. With a maximum current of 16 A and a maximum power rating of 3500 W, the PDU supports multiple devices within typical rack power budgets. The black finish and low weight (0.8 kg) simplify installation and integration into existing equipment racks.

Suitable for

• Distributing mains power to servers and blade systems in a 19-inch rack
• Powering network switches, patch panels and storage devices
• Providing outlets for rack-mounted peripherals such as KVMs and external drives
• Environments where rear vertical mounting is preferred to keep front-space and cables tidy

Key specifications

• Mounting: 1U, vertical installation in 19-inch racks
• Outlets: Type F AC sockets
• Input connector: C20 coupler with 2 m supply cable
• Maximum current: 16 A
• Maximum power: 3500 W
• Dimensions: 485 mm height, 45 × 45 mm cross-section
• Colour: Black
• Weight: 0.8 kg

How to use

Install the PowerWalker 10133010 into a free vertical 1U position in a 19-inch rack, preferably at the rear to keep cables out of the front workspace. Secure the PDU with appropriate mounting brackets or screws following rack manufacturer recommendations. Connect the C20 coupler to the rack power distribution source and distribute connected loads across the Type F outlets, ensuring the total current draw does not exceed 16 A or 3500 W. Route and secure outlet cables to avoid strain on connectors and to maintain airflow around rack equipment.

Recommendations

For reliable operation, balance connected equipment power consumption across available outlets and verify that the rack power feed supports the PDU's 16 A rating. Use correct earthing practices and avoid overloading individual circuits. Consider combining the PDU with monitoring equipment if power metering and remote management are required.
