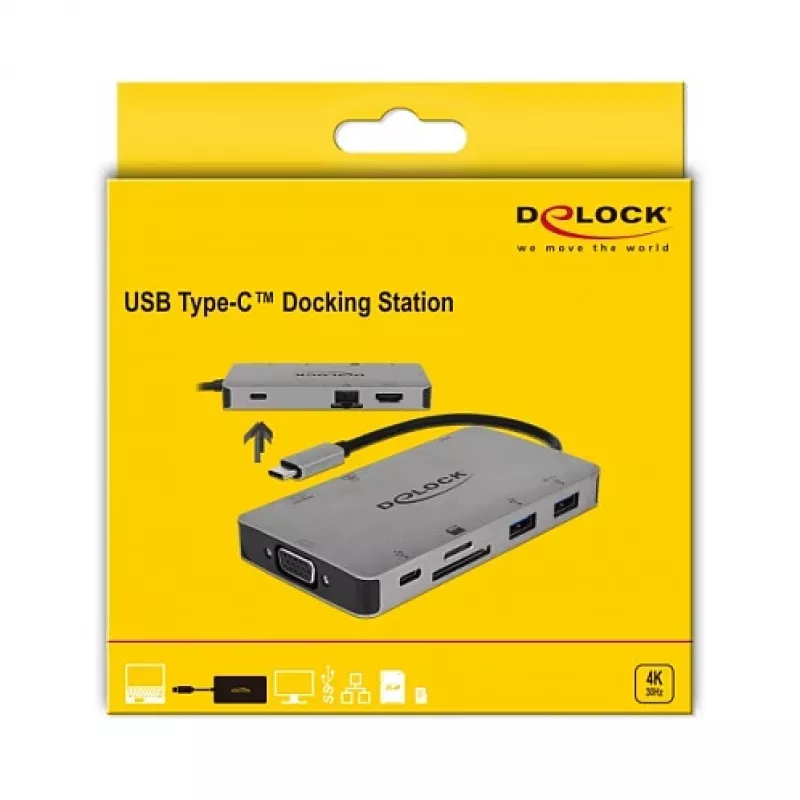

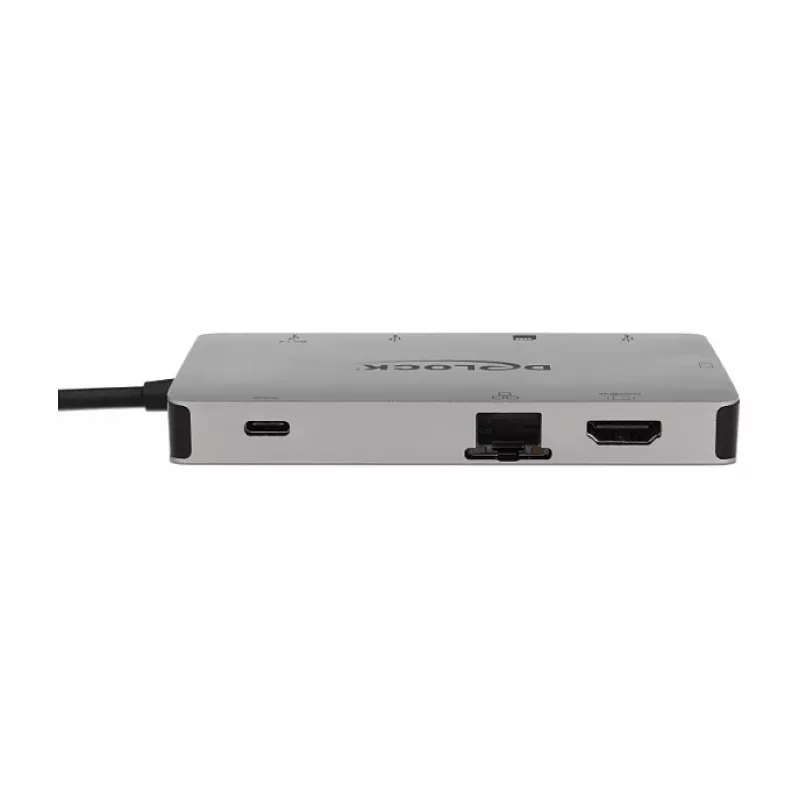

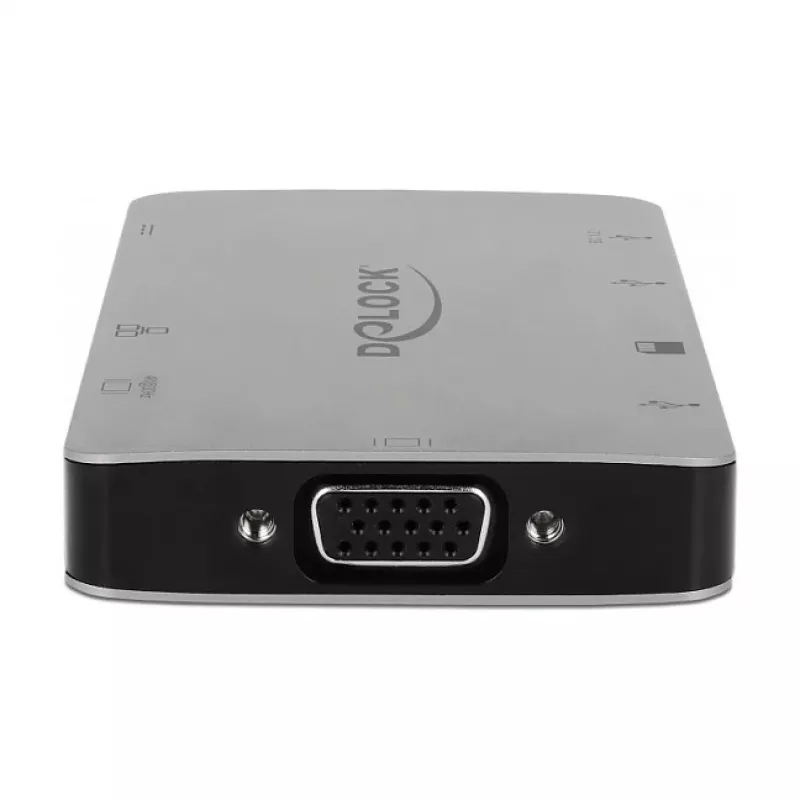

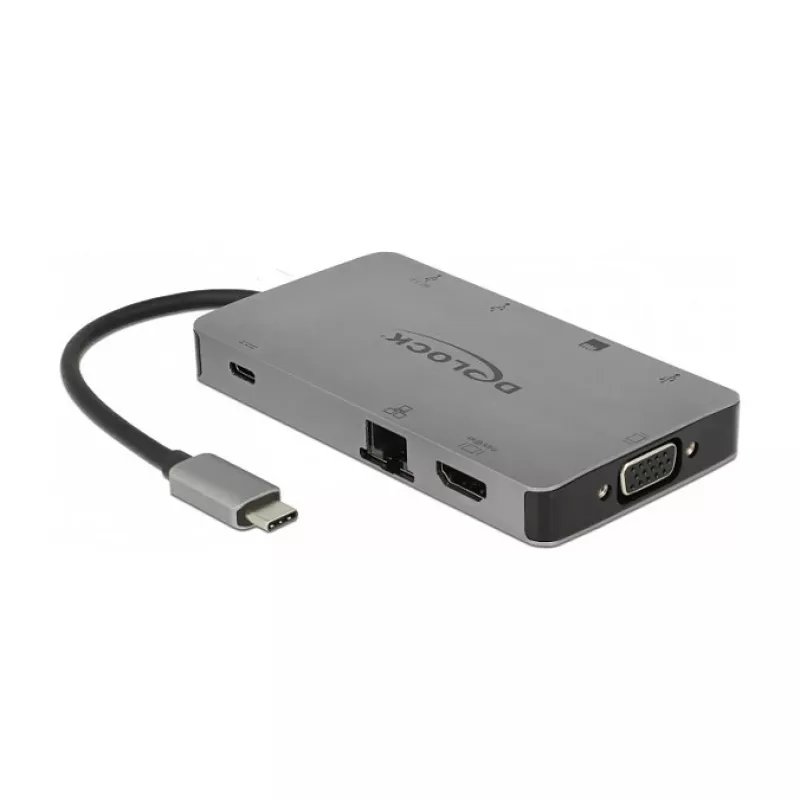

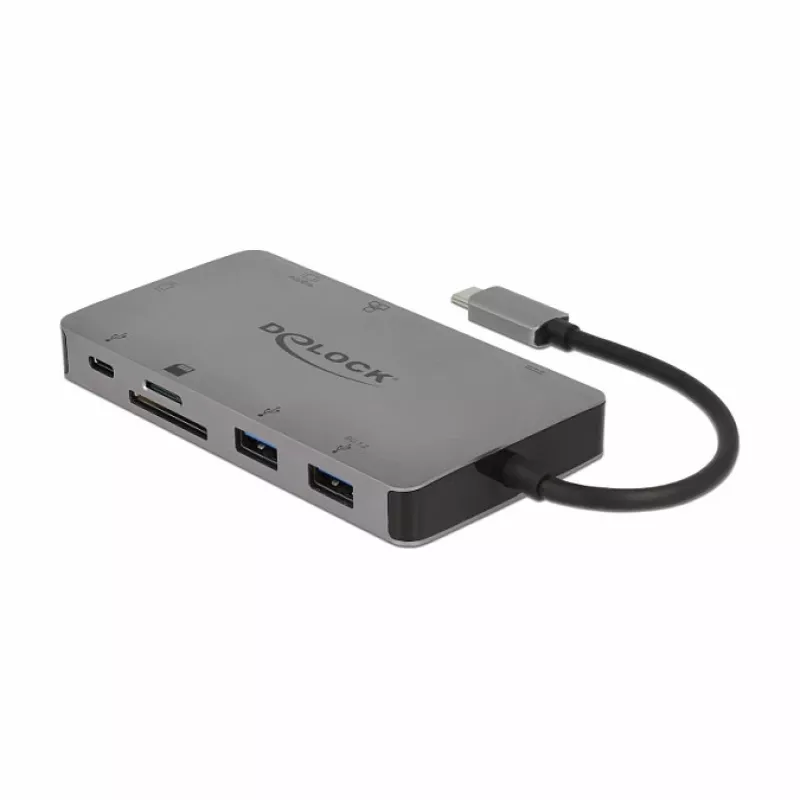

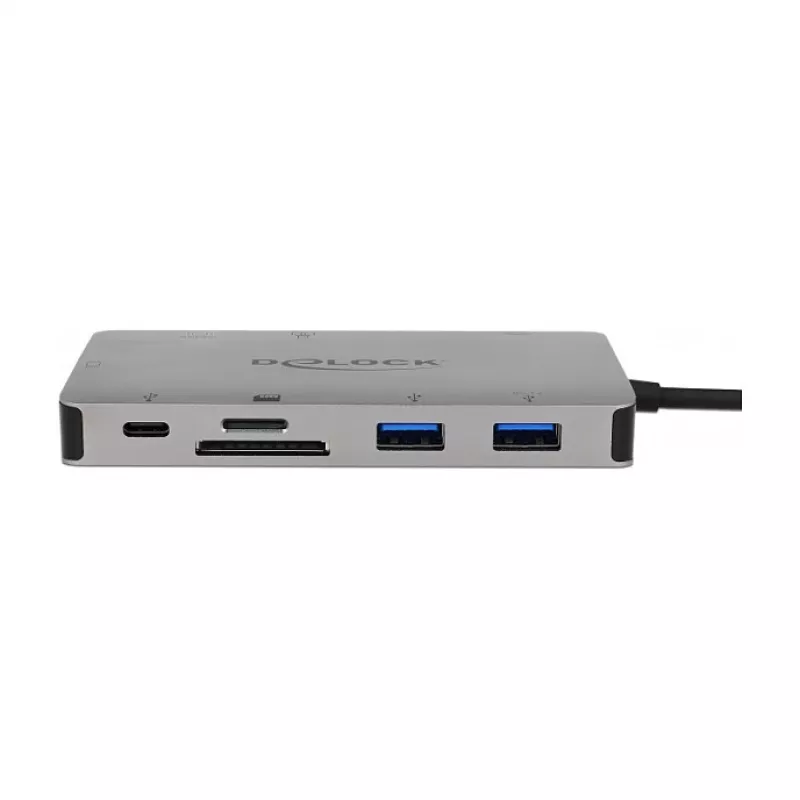

Base para portátil DeLOCK 87735

The DeLOCK 87735 is a compact wired USB 3.2 Gen 1 Type-C laptop dock designed to expand connectivity for laptops and tablets with a USB-C DP Alt Mode or Thunderbolt 3 port. It provides one HDMI and one VGA output for an external monitor, two USB 3.2 Gen 1 Type-A ports for peripherals, an SD/microSD card reader, and a gigabit Ethernet port. A USB-C Power Delivery (USB PD 3.0) port supports charging up to 100 W and can supply power to connected USB ports; the dock can also operate without an external power supply.

Advantages

The dock offers both HDMI and VGA video outputs, supporting resolutions up to 3840 x 2160 pixels on compatible displays, while providing a reliable wired connection for network, storage cards and USB accessories. Its USB-C Power Delivery port enables laptop or tablet charging up to 100 W and powers the USB ports. The small, sturdy grey housing and compact dimensions (110 x 59 x 12 mm) make the unit easy to carry and suitable for travel.

Suitable for

• Connecting a single external monitor via HDMI or VGA
• Using USB peripherals such as mouse, keyboard, or external drive
• Transferring photos and files from SD, SDHC or SDXC cards
• Providing wired gigabit network access for a laptop or tablet
• Mobile work or travel where a compact dock is needed

Key specifications

• Model: DeLOCK 87735
• Interface to host: USB-C with DP Alt Mode or Thunderbolt 3 (wired)
• USB ports: 2 × USB 3.2 Gen 1 Type-A
• Video outputs: 1 × HDMI, 1 × VGA (D-Sub)
• Card reader: SD / microSD (supports SD, SDHC, SDXC)
• Network: Gigabit Ethernet
• Power Delivery: USB PD 3.0 up to 100 W
• Colour: Grey
• Dimensions: 110 mm × 59 mm × 12 mm
• Max digital resolution: up to 3840 × 2160 pixels (depending on host and display)

How to use

Connect the dock to a laptop or tablet using the built-in USB-C cable into a USB-C DP Alt Mode or Thunderbolt 3 port. Attach an external monitor to the HDMI or VGA output and connect USB accessories to the Type-A ports. Insert an SD or microSD card into the card reader and plug an Ethernet cable into the gigabit port for wired network access. To charge the host device or provide additional power to peripherals, connect a USB-C power adapter to the Power Delivery port; the dock will also function without an external power supply.

Recommendations

For best video performance at high resolutions, use the HDMI output and a compatible HDMI cable; ensure the laptop’s USB-C port supports DP Alt Mode or Thunderbolt 3 and, if required, connect an appropriate USB-C power adapter to enable charging while in use.
