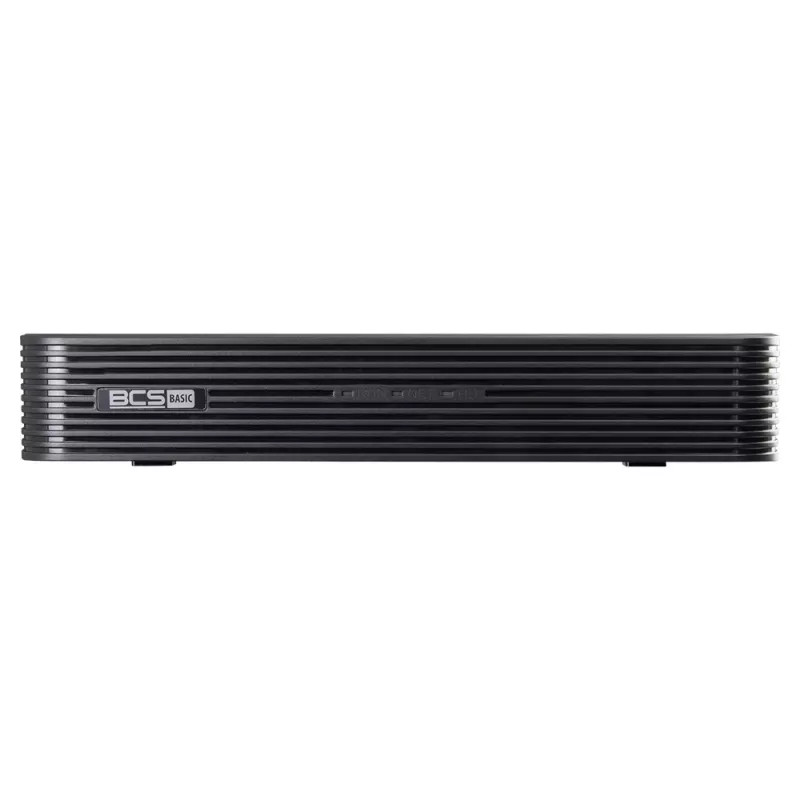

BCS BASIC BCS-B-XVR0801(2.0) videograbador híbrido de 8 canales, HDCVI/AHD/TVI/CVBS, 5M-N, H.265+, HDMI/VGA, 1 SATA hasta 10TB

Managing multiple analog cameras while preparing for future IP upgrades often means juggling separate recorders or accepting limited resolution. The BCS BASIC BCS-B-XVR0801(2.0) solves this by combining eight auto-detecting BNC inputs for HDCVI, AHD, TVI, and CVBS cameras with support for up to four additional IP channels, all in a single compact unit. This hybrid approach lets you leverage existing coaxial infrastructure today and seamlessly add IP cameras later, without replacing the recorder.

Who is it for

This recorder is ideal for small to medium businesses, retail stores, warehouses, and residential installations that need reliable, high-definition surveillance on a budget. It suits users with existing analog cameras who want to improve recording quality or gradually transition to IP, as well as new installations where a mix of camera types is expected. The intuitive interface and mobile app support make it accessible for both professional installers and tech-savvy homeowners.

Main features

• 8 BNC video inputs with auto-detection for HDCVI, AHD, TVI, and CVBS signals, supporting resolutions up to 5M-N.
• Hybrid capability: add up to 4 IP cameras (max 6MP each) for a total of 12 channels, future-proofing your system.
• Advanced H.265+ compression reduces bandwidth and storage requirements by up to 50% compared to H.264, without sacrificing image quality.
• Simultaneous HDMI and VGA outputs at up to 1080p for local monitoring on a monitor or TV.
• One SATA port supports a hard drive up to 10TB, providing ample local storage for days of continuous recording.
• Smart features include motion detection, video loss alerts, and tampering alarms, with push notifications via the BCS Manager or DMSS mobile apps.

Specifications

• Video Inputs: 8 BNC (HDCVI/AHD/TVI/CVBS auto-detect), 4 additional IP channels (total 12 in IP mode).
• Max Analog Resolution: 5M-N @ 10fps, 4M-N/1080P @ 15fps, 1080N/720P/960H/D1/CIF @ 25fps.
• Max IP Camera Resolution: 6MP.
• Video Compression: H.265+, H.265, H.264+, H.264.
• Video Outputs: 1 HDMI, 1 VGA (simultaneous), max resolution 1920x1080.
• Audio: 1 RCA input, 1 RCA output.
• Storage: 1 SATA port, supports HDD up to 10TB.
• Network: 1 RJ-45 10/100 Mbps Ethernet.
• USB: 2x USB 2.0 (rear panel).
• Power: DC 12V / 2A, consumption <10W (without HDD).
• Operating Temperature: -10°C to +55°C.
• Mobile Apps: BCS Manager, DMSS.
• Smart Features: Motion Detection, Video Loss, Tampering.

Tips

To maximize storage efficiency, enable H.265+ compression and configure motion detection recording so the DVR only captures events rather than continuous footage. When adding IP cameras, ensure they are on the same network segment as the recorder and use the auto-search function in the menu for easy setup. For reliable 24/7 operation, use a surveillance-grade hard drive (such as WD Purple or Seagate SkyHawk) rated for continuous writing. Mount the recorder in a well-ventilated area to keep temperatures within the specified range, especially if installing a high-capacity HDD.
