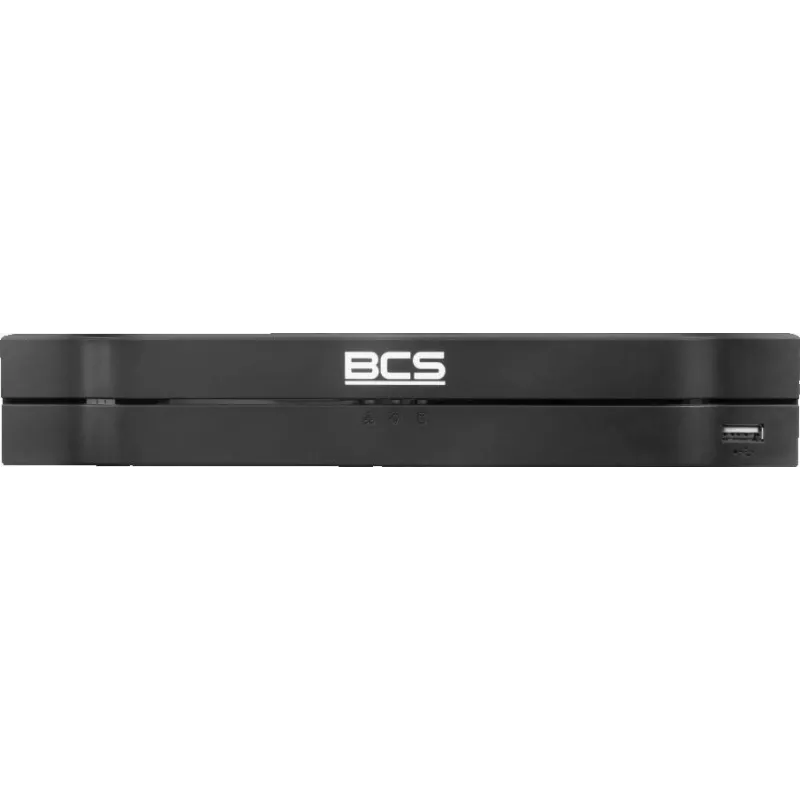

BCS grabador DVR analógico HD 4K de 16 canales BCS-L-XVR1601-4KE(5)

The BCS-L-XVR1601-4KE(5) is a high-performance 16-channel analog HD DVR recorder designed for professional surveillance systems. Supporting HDCVI, AHD, HDTVI, CVBS, and IP cameras, this penta-brid recorder offers flexible connectivity and advanced features such as SMD Plus, perimeter protection, and AI coding. With up to 8MP recording resolution and H.265+ compression, it delivers exceptional video quality while optimizing storage and bandwidth.

Advantages

This recorder provides a cost-effective solution for upgrading existing analog systems to high-definition surveillance. Its penta-brid technology allows seamless integration of various camera types, and the AI-powered features enhance security with intelligent detection and alerts. The compact design and easy-to-use interface make it suitable for both small and medium-sized installations.

Suitable for

• Retail stores and shops
• Office buildings
• Warehouses and logistics centers
• Residential complexes
• Educational institutions

Key specifications

• 16 BNC video inputs (HDCVI/AHD/TVI/CVBS auto-detect)
• Up to 16 additional IP channels (max 32 total)
• Max recording resolution: 4K (8MP) at 7fps (analog), 8MP (IP)
• Video compression: H.265+/H.265/H.264+/H.264
• 1x HDMI (up to 4K), 1x VGA (up to 1080p) output
• 1x SATA HDD bay, up to 10TB
• 1x RJ-45 10/100 Mbps Ethernet
• 2x USB 2.0 ports
• Audio: 1x RCA in, 1x RCA out
• Power: DC12V/2A
• Operating system: Embedded Linux
• Mobile app support: BCS Manager, DMSS
• Smart features: SMD Plus, perimeter protection, AI coding, 1-channel face detection

Recommendations

For optimal performance, use high-quality BNC cables and compatible HDCVI or IP cameras. Ensure the HDD is rated for surveillance use (e.g., WD Purple or Seagate SkyHawk). Regularly update firmware via the network to access the latest features and security patches.
