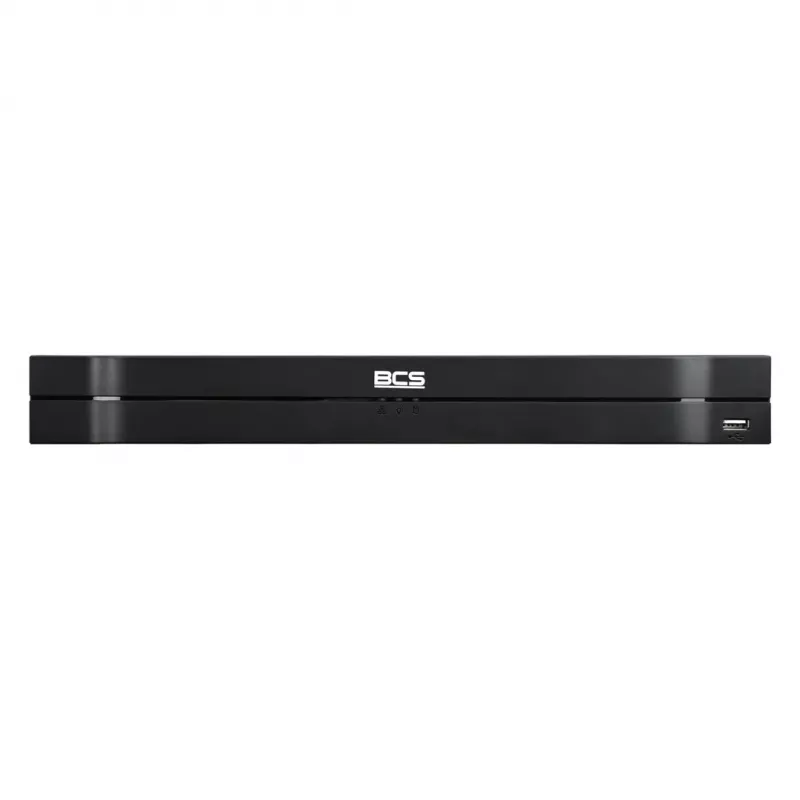

BCS NVR IP 4K de 16 canales BCS-L-NVR1602-A-4KE(2)

The BCS-L-NVR1602-A-4KE(2) is a high-performance 16-channel IP network video recorder designed for professional surveillance systems. Supporting up to 8MP (4K) resolution recording, this NVR delivers exceptional image clarity and detail. With H.265+ compression technology, it optimizes storage and bandwidth efficiency without compromising video quality.

Advantages

This NVR offers 16 independent IP channels with a maximum incoming bandwidth of 160 Mbps, ensuring smooth recording from multiple high-resolution cameras. The dual SATA III bays support up to 10 TB each, providing ample storage for extended recording periods. Mobile access via BCS Manager and DMSS apps allows remote monitoring from iOS and Android devices.

Suitable for

• Medium to large retail stores
• Office buildings and corporate facilities
• Warehouses and logistics centers
• Educational campuses
• Residential estates

Key specifications

• Video Input Channels: 16 IP channels
• Max Recording Resolution: 8MP (4K)
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 160 Mbps
• Outgoing Bandwidth: 64 Mbps
• Video Outputs: 1x HDMI (up to 4K), 1x VGA
• Audio Input/Output: 1x RCA each
• Alarm Input/Output: 4 inputs, 2 outputs
• Network Interface: 1x RJ-45 10/100/1000 Mbps
• HDD Bays: 2x SATA III (up to 10 TB each)
• USB Ports: 1x USB 2.0, 1x USB 3.0
• Power Supply: DC 12V / 4A
• Power Consumption: < 10W (without HDD)
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, pair this NVR with BCS 4K IP cameras and use high-quality SATA III hard drives. Ensure proper ventilation and stable power supply for reliable 24/7 operation.
