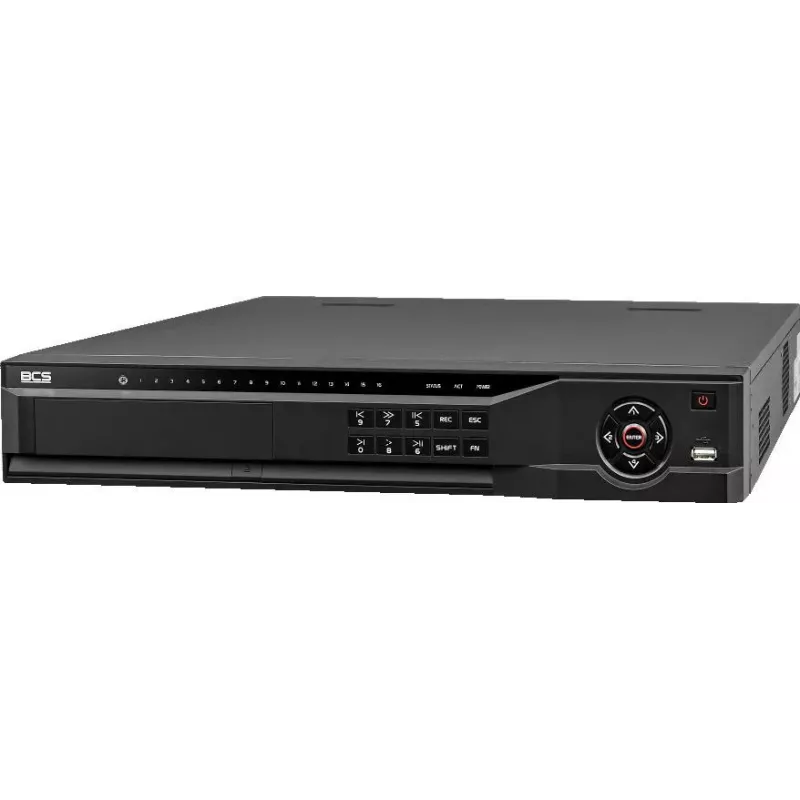

BCS Grabadora IP de 16 canales BCS-L-NVR1604-A-4K-16P, PoE, 8MP, H.265+

The BCS-L-NVR1604-A-4K-16P is a high-performance 16-channel IP network video recorder designed for professional surveillance systems. With support for up to 8MP resolution and H.265+ compression, it delivers exceptional video quality while reducing bandwidth and storage requirements. The built-in 16-port PoE switch simplifies installation by powering cameras directly, with a total PoE budget of 130W.

Advantages

This NVR offers seamless integration with BCS and DMSS mobile apps for remote monitoring. Its dual SATA bays support up to 10TB each, providing ample storage for extended recording. The device features 4K HDMI output for crisp local viewing, and alarm inputs/outputs for integration with sensors.

Suitable for

• Medium to large retail stores
• Office buildings
• Warehouses and logistics centers
• Educational campuses
• Any site requiring 16 IP cameras with PoE

Key specifications

• 16 IP channels, max 8MP (3840x2160) resolution
• Video compression: H.265+/H.265/H.264+/H.264
• 16 PoE ports (IEEE 802.3af/at), 130W budget
• 2 SATA HDD bays, up to 10TB each
• 1x HDMI 4K, 1x VGA 1080p output
• 1x RJ45 10/100/1000 Mbps network interface
• Audio: 1x RCA in, 1x RCA out
• Alarm: 4 inputs, 2 outputs
• USB: 1x USB 2.0, 1x USB 3.0
• Power: AC 110-240V, 50/60Hz
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, use BCS PoE cameras and high-quality CAT6 cabling. Configure recording schedules and motion detection via the intuitive web interface or mobile app. Ensure adequate ventilation for the NVR to maintain stable operation.
