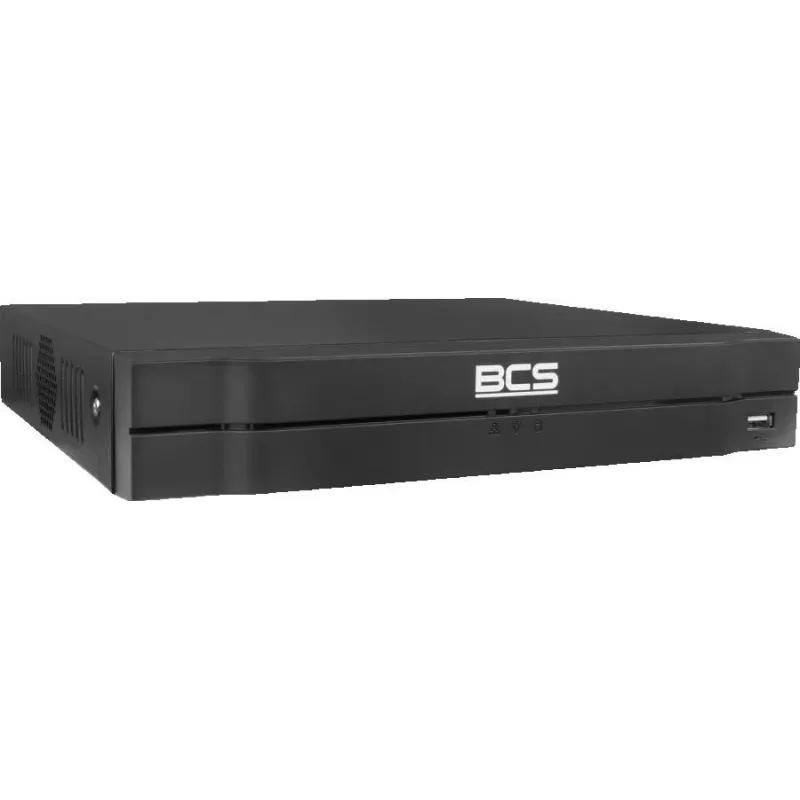

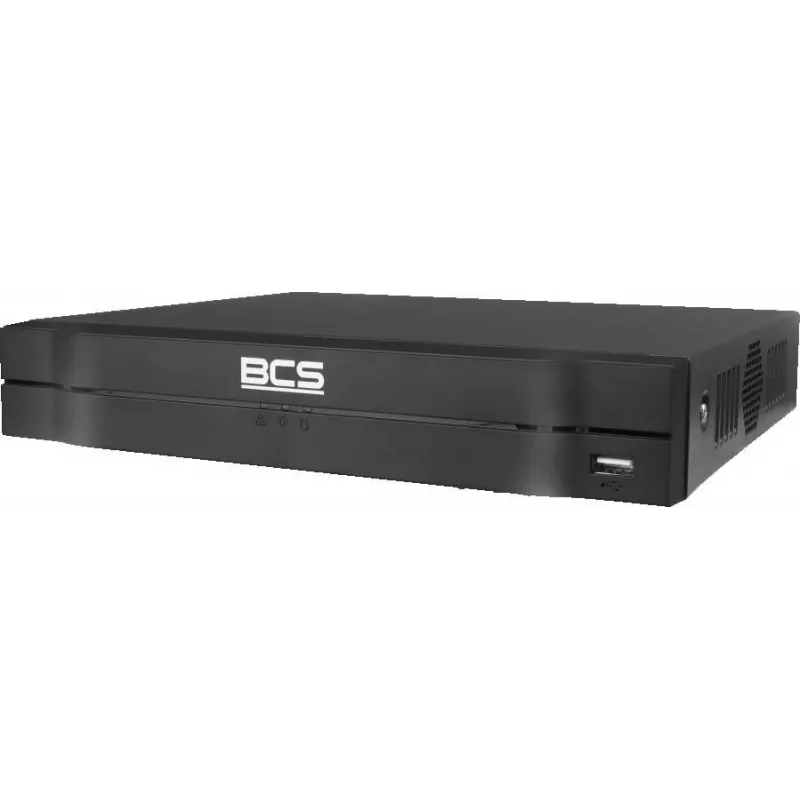

BCS LINE BCS-L-NVR0401-4KE(2L) Grabadora NVR de 4 canales 8MP

The BCS LINE BCS-L-NVR0401-4KE(2L) is a high-performance 4-channel network video recorder (NVR) designed for IP surveillance systems. Supporting up to 8MP resolution per channel, it delivers ultra-clear 4K video output via HDMI. With H.265+ compression, it optimizes storage and bandwidth. Ideal for small to medium-sized installations, this NVR offers reliable recording, remote access, and ONVIF compatibility.

Advantages

Supports 4 IP channels with 8MP recording resolution for detailed footage. H.265+ compression reduces storage requirements by up to 50% compared to H.264. HDMI 4K output ensures crisp viewing on modern monitors. P2P and ONVIF support enable easy integration and remote access via BCS Manager app. Single SATA bay supports up to 10TB for extended recording.

Suitable for

• Small business security systems
• Retail stores and offices
• Home surveillance with up to 4 cameras
• Warehouse and storage monitoring

Key specifications

• Video Input Channels: 4 IP channels
• Max Recording Resolution: 8MP (3840x2160) per channel
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 40 Mbps
• HDMI Output: Up to 4K (3840x2160)
• VGA Output: Up to 1920x1080
• HDD Bays: 1 SATA (up to 10TB)
• Network Interface: 1x RJ-45 10/100 Mbps
• USB Ports: 2x USB 2.0
• Audio: 1x RCA input, 1x RCA output
• Power Supply: DC12V/2A
• Operating System: Embedded Linux
• ONVIF Support: Profile S, G, T
• Mobile Access: BCS Manager (iOS, Android)

Recommendations

For optimal performance, use compatible BCS IP cameras and high-quality CAT5e/6 cables. Ensure adequate ventilation for the NVR. Regular firmware updates are recommended for security and feature enhancements.
