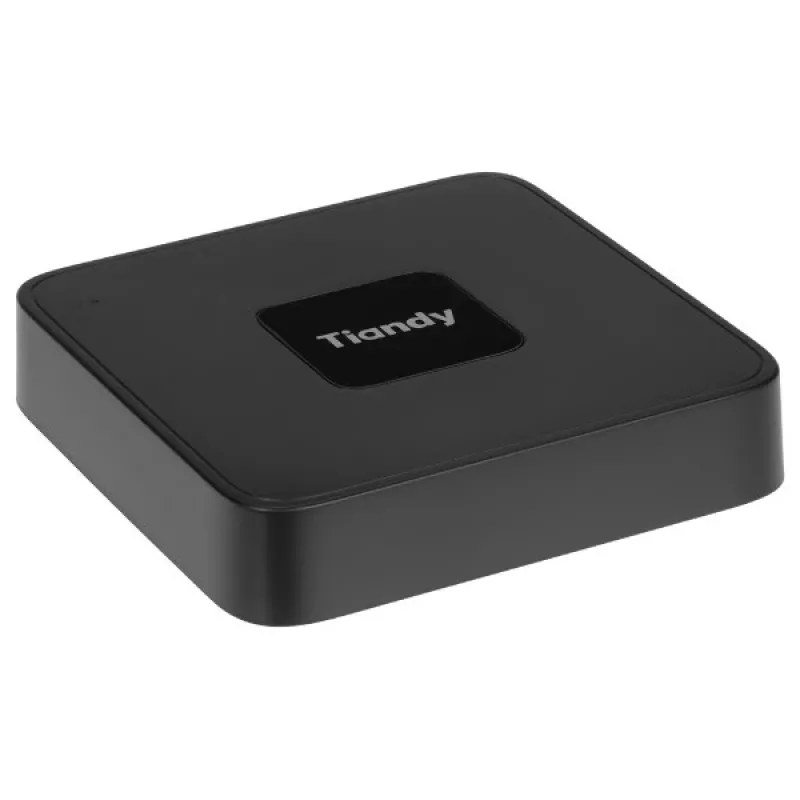

Tiandy TC-R3105 NVR IP de 5 canales con 4 puertos PoE, H.265+, 8MP, 1 SATA, HDMI 4K

The Tiandy TC-R3105 is a professional 5-channel IP network video recorder designed for small to medium surveillance systems. With 4 integrated PoE ports (IEEE 802.3af/at), it simplifies camera installation by providing both data and power over a single cable. Supporting up to 8MP resolution and H.265+ compression, this NVR delivers high-quality video while saving bandwidth and storage. The unit features a single SATA interface for up to 10TB of storage, 4K HDMI output, and smart analytics including motion detection, line crossing, and intrusion detection. Ideal for retail shops, offices, and residential applications, the TC-R3105 offers reliable performance with Tiandy EasyLive mobile app support for remote viewing.

Advantages

• 4 PoE ports eliminate the need for separate power supplies for cameras
• H.265+ compression reduces storage requirements by up to 50% compared to H.264
• 4K HDMI output ensures crisp, detailed video on compatible monitors
• Smart analytics enhance security with real-time alerts for intrusions and line crossing
• Easy setup and remote access via Tiandy EasyLive app

Suitable for

• Small businesses and retail stores requiring up to 5 IP cameras
• Office surveillance with PoE camera compatibility
• Residential security systems with 4K display support
• Applications needing reliable motion detection and event-triggered recording

Key specifications

• Video Input: 5 IP channels (up to 8MP each)
• PoE Ports: 4 (IEEE 802.3af/at, total PoE budget not specified)
• Compression: H.265+/H.265/H.264+/H.264
• Video Output: 1x HDMI (up to 4K@30fps), 1x VGA
• Audio: 1-ch RCA input, 1-ch RCA output
• Storage: 1x SATA port, up to 10TB per HDD (HDD not included)
• Network: 1x RJ45 10/100Mbps uplink
• USB: 2x USB 2.0
• Power: DC 48V external adapter
• Power Consumption: <10W (excluding HDD and PoE)
• Operating Temperature: -10°C to +55°C
• Dimensions: Not specified

Recommendations

For optimal performance, use Tiandy PoE IP cameras and a compatible 10TB SATA HDD. Ensure the network switch supports the required bandwidth for all cameras. The NVR supports up to 5 cameras; for larger systems, consider models with more channels.
