BCS NVR IP de 64 canales, 16 bahías SATA, grabación 4K, H.265+, RAID, 3U rackmount - BCS-P-NVR6416R-8KR

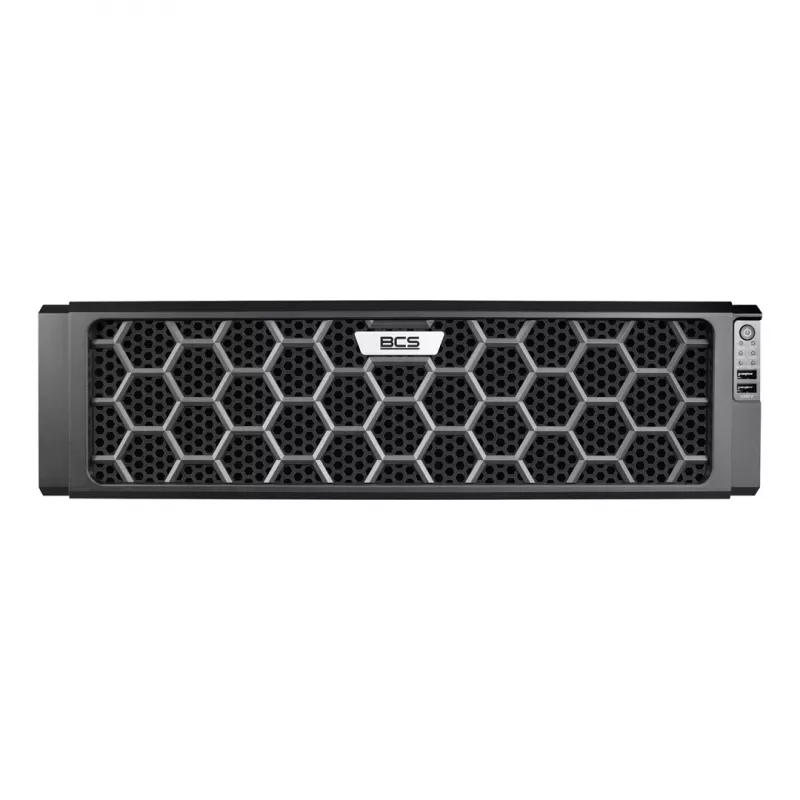

The BCS-P-NVR6416R-8KR is a high-performance 64-channel IP network video recorder designed for large-scale surveillance systems. With support for up to 16 SATA hard drives (max 10TB each), RAID configurations, and 384 Mbps bandwidth, this 3U rackmount NVR delivers reliable, high-resolution recording and smart analytics.

Advantages

Supports 64 IP channels with up to 12MP resolution recording. H.265+ compression reduces storage requirements. RAID0/1/5/6/10 ensures data redundancy. Smart features include perimeter protection, SMD Plus, and face detection. Dual 4K HDMI outputs for high-definition monitoring.

Suitable for

• Large enterprise security systems
• Retail chains, warehouses, and campuses
• Government and critical infrastructure
• Any application requiring 64+ cameras and long-term storage

Key specifications

• 64 IP channels, up to 12MP resolution
• H.265+/H.265/H.264+/H.264 compression
• 384 Mbps incoming/outgoing bandwidth
• 16 SATA HDD bays, up to 10TB each
• RAID0/1/5/6/10 support
• 2x HDMI (4K), 1x VGA (1080P) outputs
• 2x Gigabit Ethernet, 16 alarm inputs / 8 outputs
• 3U rackmount form factor
• Smart analytics: perimeter protection, SMD Plus, face detection
• ONVIF Profile S/T/G compliant

Recommendations

For optimal performance, use enterprise-grade SATA HDDs (e.g., WD Purple or Seagate SkyHawk). Ensure proper ventilation in the rack cabinet. The NVR supports up to 10TB per bay; total raw capacity up to 160TB.
