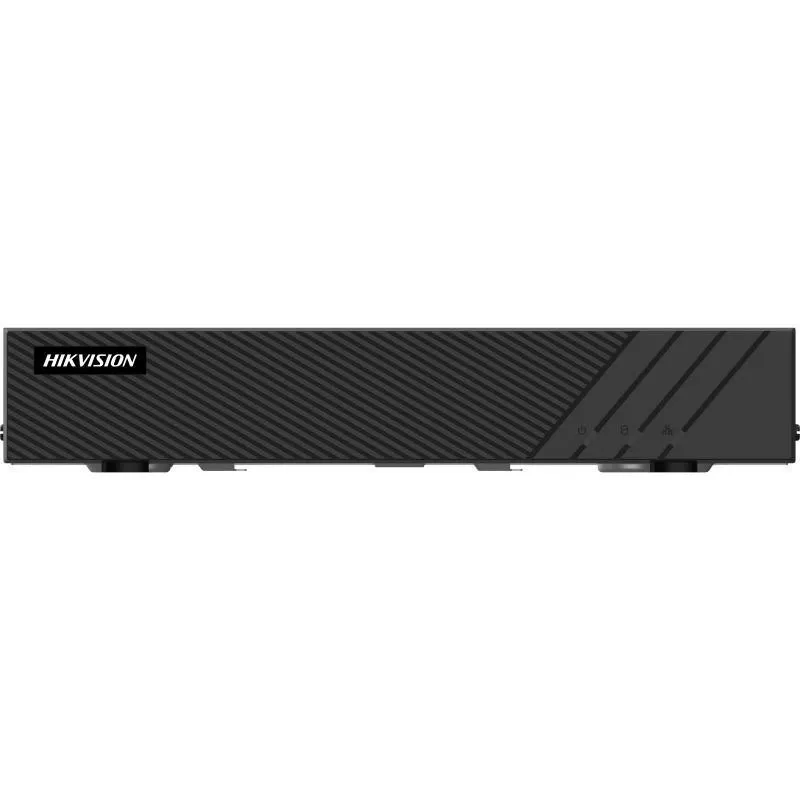

NVR 4 Canales 4-PoE Hikvision DS-7604NI-Q1/4P(E)

The Hikvision DS-7604NI-Q1/4P(E) is a 4-channel network video recorder (NVR) with 4 independent PoE ports, designed for small to medium-sized surveillance systems. It supports H.265+/H.265/H.264+/H.264 compression, delivering high-quality video while saving bandwidth and storage. With a maximum incoming bandwidth of 40 Mbps and outgoing bandwidth of 80 Mbps, it ensures smooth recording and remote access.

Advantages

This NVR offers easy plug-and-play setup with PoE, eliminating the need for separate power supplies for cameras. It supports up to 8 TB of storage via a single SATA interface, and features smart analytics like motion detection 2.0 and perimeter protection for enhanced security.

Suitable for

• Small businesses
• Retail stores
• Office surveillance
• Home security systems

Key specifications

• 4-channel IP video input
• 4 PoE ports (IEEE 802.3af/at, max 36 W)
• HDMI output up to 4K/30Hz, VGA up to 1080p/60Hz
• Decoding: 1-ch @ 8 MP (30 fps) / 3-ch @ 4 MP (30 fps) / 6-ch @ 1080p (30 fps)
• Recording resolution up to 8 MP
• 1 SATA interface, up to 8 TB
• 1 RJ-45 10/100/1000 Mbps Ethernet
• 2 USB 2.0 ports
• 1-ch RCA audio input/output
• Power consumption ≤ 10 W (without HDD and PoE off)
• Operating temperature: -10 °C to 55 °C

Recommendations

Pair with Hikvision IP cameras for optimal compatibility and performance. Use a high-quality HDD (up to 8 TB) for reliable 24/7 recording.
