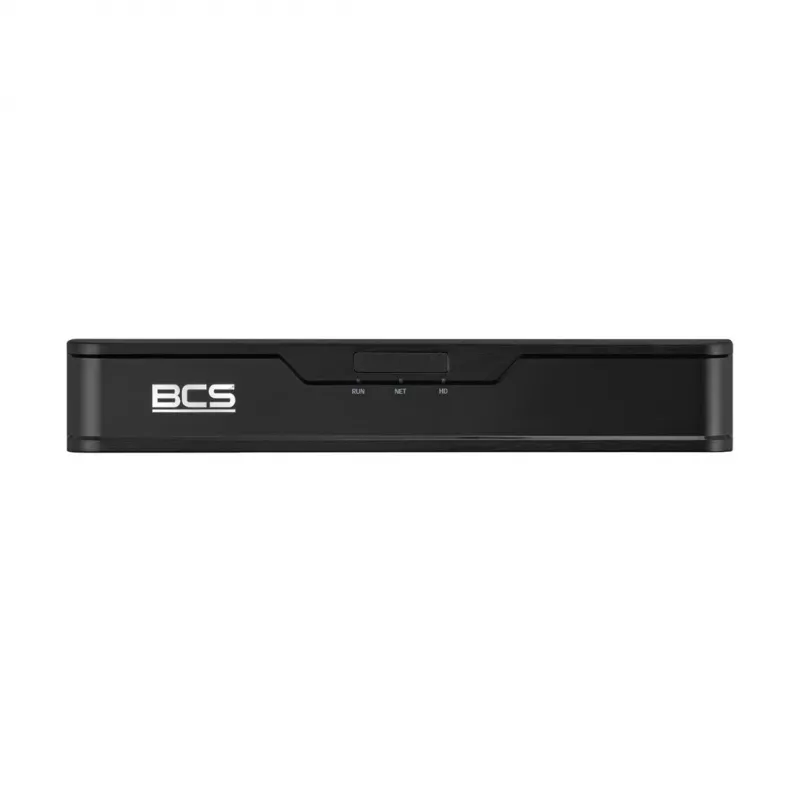

BCS-P-NVR0401-4KE-III BCS Point Grabadora de vídeo en red IP de 4 canales hasta 8Mpx

The BCS-P-NVR0401-4KE-III is a professional 4-channel IP network video recorder from the BCS Point series, supporting up to 8 Megapixel (4K UHD) resolution. Designed for small to medium surveillance systems, it offers reliable recording, smart analytics, and easy remote access.

Advantages

Supports H.265+ compression to save bandwidth and storage. Features smart motion detection, line crossing, and intrusion detection (camera dependent). ONVIF compliant for broad compatibility. Compact and energy-efficient design.

Suitable for

• Small offices and retail stores
• Home security systems
• Warehouse and storage monitoring
• Educational facilities

Key specifications

• 4-channel IP video input
• Max recording resolution: 8 Megapixels (4K UHD)
• Video compression: H.265+/H.265/H.264+/H.264
• Incoming bandwidth: 40 Mbps, outgoing: 20 Mbps
• Video outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA in, 1x RCA out
• 1x SATA HDD interface (up to 10TB)
• 1x RJ-45 10/100 Mbps Ethernet
• 2x USB 2.0 ports
• Power: DC 12V, consumption <10W (without HDD)
• Operating temperature: -10°C to +55°C
• Simultaneous playback: 4 channels @ 1080p or 1 channel @ 8Mpx
• Smart features: motion detection, line crossing, intrusion detection
• Mobile client: iOS, Android
• ONVIF support: Profile S, G, T
• Recording modes: manual, schedule (continuous, motion, alarm), stop

Recommendations

For optimal performance, use with BCS Point cameras and a high-quality 10TB SATA HDD. Ensure proper ventilation and stable power supply.
