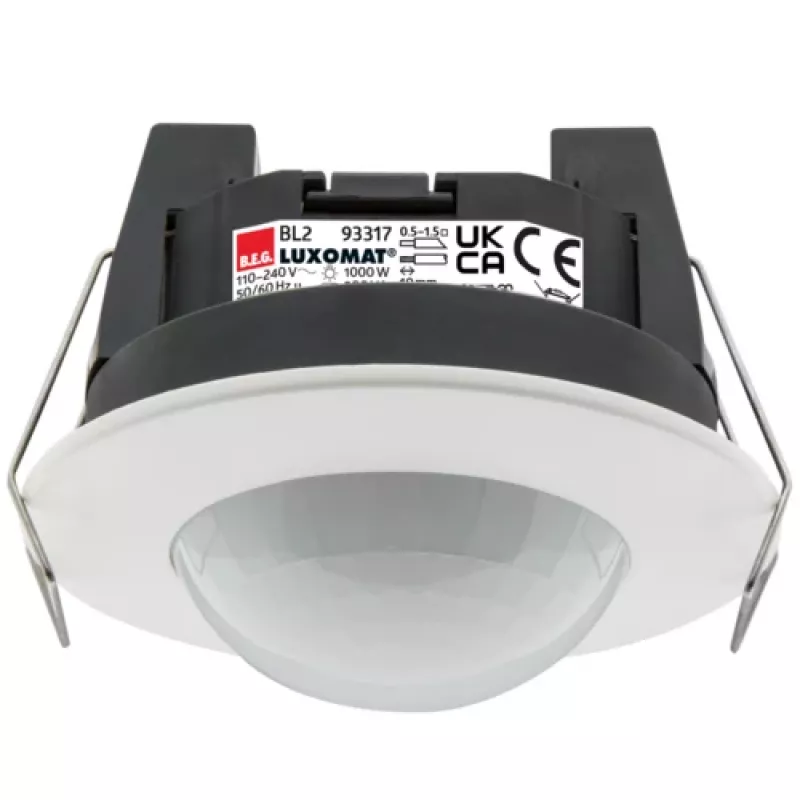

BEG BRCK LUXOMAT BL-2-DE detector de movimiento PIR de techo empotrable, 360°, 2300 W, blanco

Detect movement across a full 360° with the BEG BRCK LUXOMAT BL-2-DE, a ceiling flush-mount presence detector built for reliable, energy-efficient lighting control. Its passive infrared sensor covers a tangential range of up to 10 metres in diameter (78 m²) at a 2.5 m mounting height, making it ideal for offices, corridors, restrooms, and other commercial or residential spaces. With a high-performance relay rated for 2300 W incandescent/halogen loads and 500 W LED loads, this detector handles demanding switching tasks without external contactors. The adjustable time delay (15 seconds to 30 minutes, plus pulse mode) and light threshold (10–2000 lux) let you fine-tune automation to match occupancy patterns and daylight conditions. The UV-stabilised polycarbonate housing and IP20 rating ensure long-term durability in indoor environments, while the compact flush-mount design integrates seamlessly into suspended or solid ceilings.

Overview

The BL-2-DE is a single-channel motion detector that uses passive infrared (PIR) technology to sense heat emitted by moving people. It operates on 230 V AC ±10% / 50 Hz and consumes only about 0.5 W in standby, contributing to overall energy savings. The detector is designed for ceiling installation at a recommended height of 2.0–3.0 m (optimal 2.5 m). Its presence detection area is approximately 4 m in diameter (12.5 m²) for fine movements, while the tangential detection area extends to 10 m in diameter (78 m²) for larger movements. The built-in relay features tungsten pre-contact to handle high inrush currents from lighting loads, extending relay life. The detector is white in colour and blends discreetly with most ceiling finishes.

What stands out

• 360° detection angle with wide coverage: up to 78 m² tangential area at 2.5 m height.
• High switching capacity: 2300 W for incandescent/halogen, 500 W for LED lighting.
• Flexible settings: time delay from 15 seconds to 30 minutes, plus pulse mode; light threshold from 10 to 2000 lux.
• Robust construction: UV-stabilised polycarbonate housing, IP20 rated for indoor use.
• Energy-efficient: standby power consumption of only ~0.5 W.
• Easy flush-mount installation in ceilings with a standard cut-out.

Technical details

• Brand: BEG BRCK LUXOMAT
• Model: BL-2-DE
• MPN: 93317
• EAN: 4007529933174
• Sensor type: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (presence): Ø 4 m (12.5 m²) at 2.5 m height
• Detection range (tangential): Ø 10 m (78 m²) at 2.5 m height
• Recommended mounting height: 2.0–3.0 m (optimal 2.5 m)
• Operating voltage: 230 V AC ±10% / 50 Hz
• Max. switching power (incandescent/halogen): 2300 W
• Max. switching power (LED): 500 W
• Time delay setting: 15 sec – 30 min, pulse
• Light value setting: 10–2000 lux
• Protection class: IP20
• Operating temperature: -25 °C to +50 °C
• Colour: White
• Installation type: Ceiling flush-mount
• Number of channels: 1 (light)
• Power consumption (standby): ~0.5 W
• Housing material: UV-stabilised polycarbonate
• Relay type: High-performance relay, tungsten pre-contact

Our verdict

The BEG BRCK LUXOMAT BL-2-DE is a professional-grade motion detector that delivers broad coverage and high switching power in a discreet flush-mount package. Its adjustable parameters and robust relay make it a dependable choice for automating lighting in demanding indoor environments.
