BEP24 Caja de suelo 3301E-1-1 - Acero inoxidable, 1x Schuko (tipo F), IP20, montaje empotrado

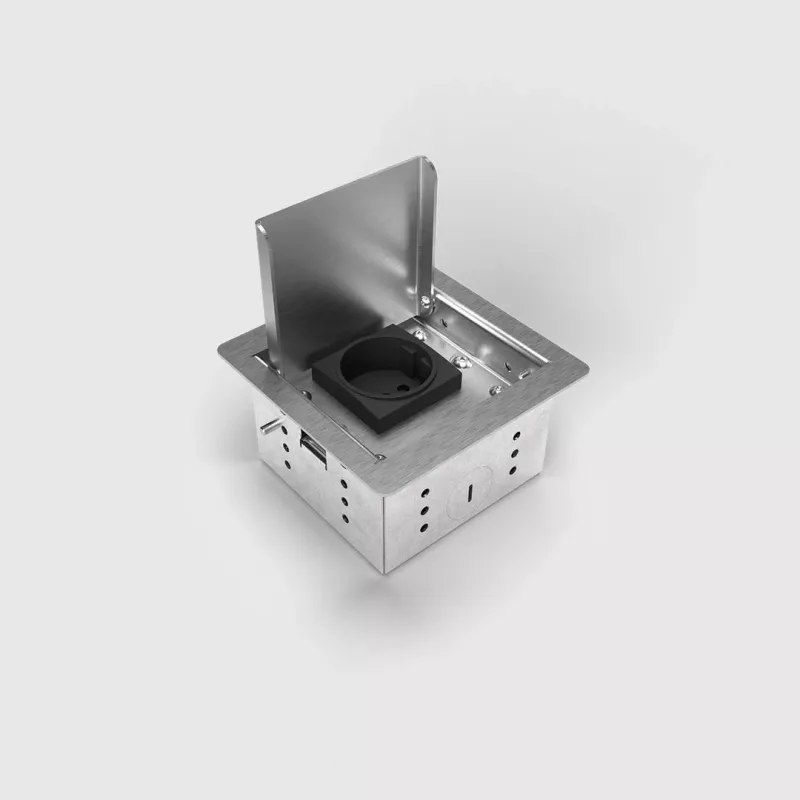

The BEP24 3301E-1-1 floor socket is a robust and discreet flush-mount power outlet designed for indoor use in offices, residential, and commercial spaces. Featuring a single Schuko (Type F) socket with a brushed stainless steel cover, it blends seamlessly into floors while providing reliable power connectivity. Rated for 250V/16A, this socket is VDE and CE certified, ensuring safety and durability.

Advantages

This floor socket offers a sleek, low-profile design that integrates perfectly with modern interiors. The stainless steel cover is both stylish and durable, capable of withstanding pedestrian traffic up to 150 kg. Its flush-mount installation keeps the floor surface clear and safe, reducing trip hazards. The screw terminal connection ensures a secure and stable electrical connection.

Suitable for

• Office workstations and meeting rooms
• Residential living areas and home offices
• Commercial showrooms and retail spaces
• Conference rooms and training facilities

Key specifications

• Number of Sockets: 1
• Socket Type: Schuko (Type F)
• Cover Material: Stainless Steel (brushed)
• Housing Material: Plastic (PA)
• Protection Class: IP20 (closed and in use)
• Rated Voltage: 250V AC
• Rated Current: 16A
• Frequency: 50/60 Hz
• Connection Type: Screw Terminals
• Cable Entry: 2x M25 knockouts
• Mounting Type: Flush Mount
• Installation Depth: 55 mm
• Cut-out Dimensions: 100 x 100 mm
• Cover Load Capacity: Up to 150 kg (pedestrian traffic)
• Temperature Range: -5°C to +45°C
• Certifications: VDE, CE
• Colour/Finish: Silver / Brushed Stainless Steel

Recommendations

For best results, ensure the cut-out dimensions are precisely 100x100 mm and the installation depth is at least 55 mm. Use appropriate cable glands for the M25 knockouts. This socket is ideal for areas with light pedestrian traffic; for heavy-duty applications, consider a higher load-rated model.
