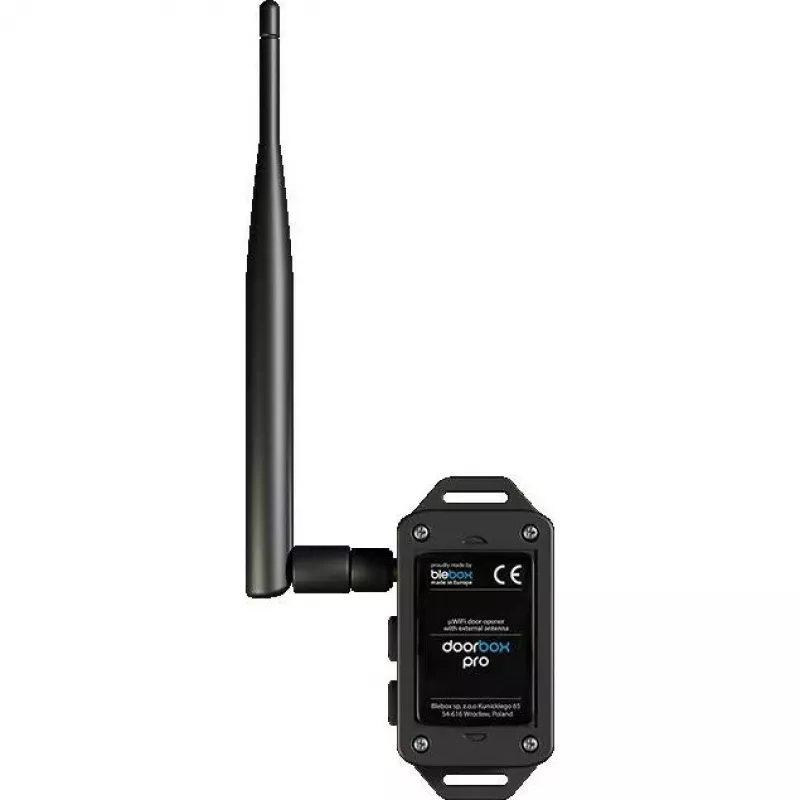

BleBox doorBox PRO Módulo de control de puerta

The BleBox doorBox PRO is a door control module that allows you to control doors and gates via smartphone or computer from anywhere in the world. It provides real-time status monitoring of doors, gates, or locks and can send notifications to your smartphone, such as when a door is opened. The module features a potential-free relay (5-30V DC / 5-230V AC) suitable for electric strikes, locks, and bolts, and includes two additional control inputs (12-24V AC/DC) for devices like an opening button or bell.

Key features

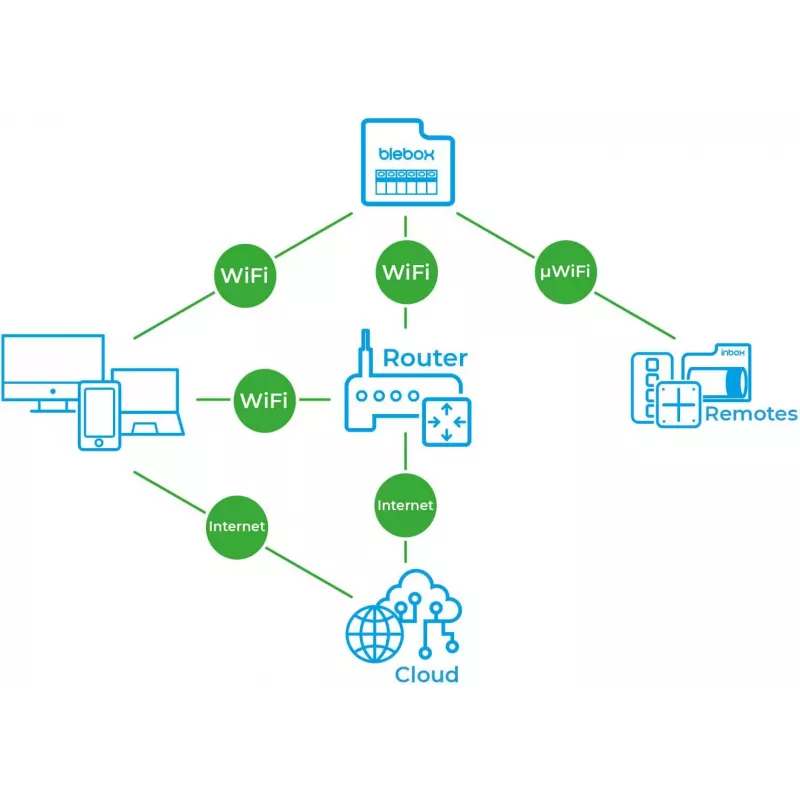

• Control doors and gates via smartphone or computer from anywhere
• Real-time status monitoring of doors, gates, or locks
• Smartphone notifications (e.g., door opened)
• Schedule with astronomical clock (e.g., control at sunrise/sunset)
• Can control other BleBox controllers (e.g., lighting, bell)
• Safe power supply: 12-24V AC/DC
• Potential-free relay (5-30V DC / 5-230V AC) ideal for electric strikes, locks, and bolts
• Two additional control inputs 12-24V AC/DC (e.g., opening button, bell)
• Waterproof housing and external, replaceable WiFi antenna for better range
• Optional control via direct, local connection

Specifications

• Brand: Blebox
• Model: doorBox PRO
• Power supply: 12-24V AC/DC
• Maximum current: 2A
• Connectivity: WiFi 2.4GHz
• Standards: IEEE 802.11b/g/n
• Dimensions: 40x48x20 mm
• Operating temperature: -20°C to +50°C
• Weight: 45g
