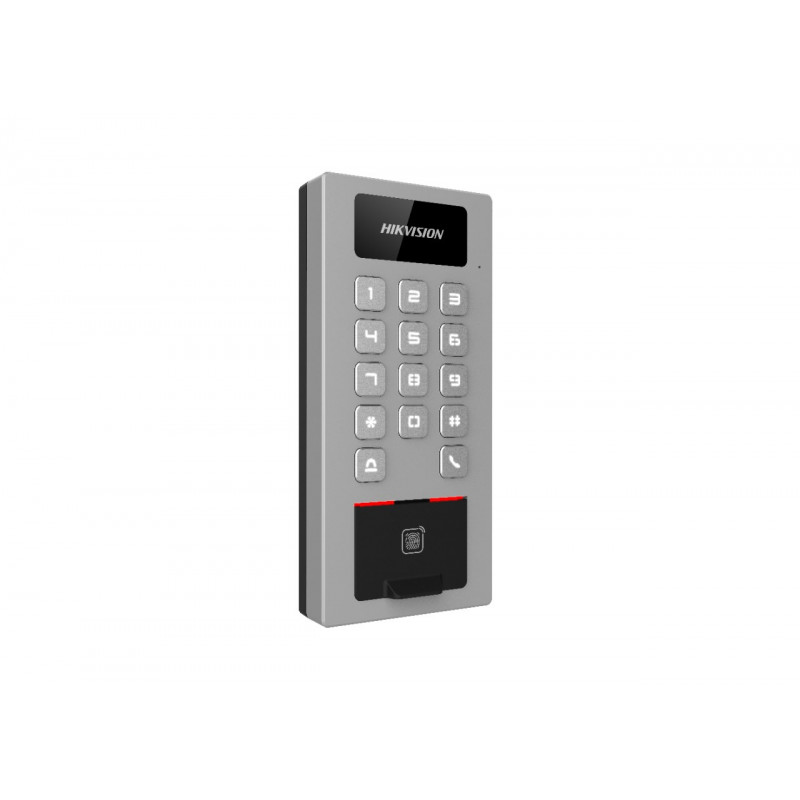

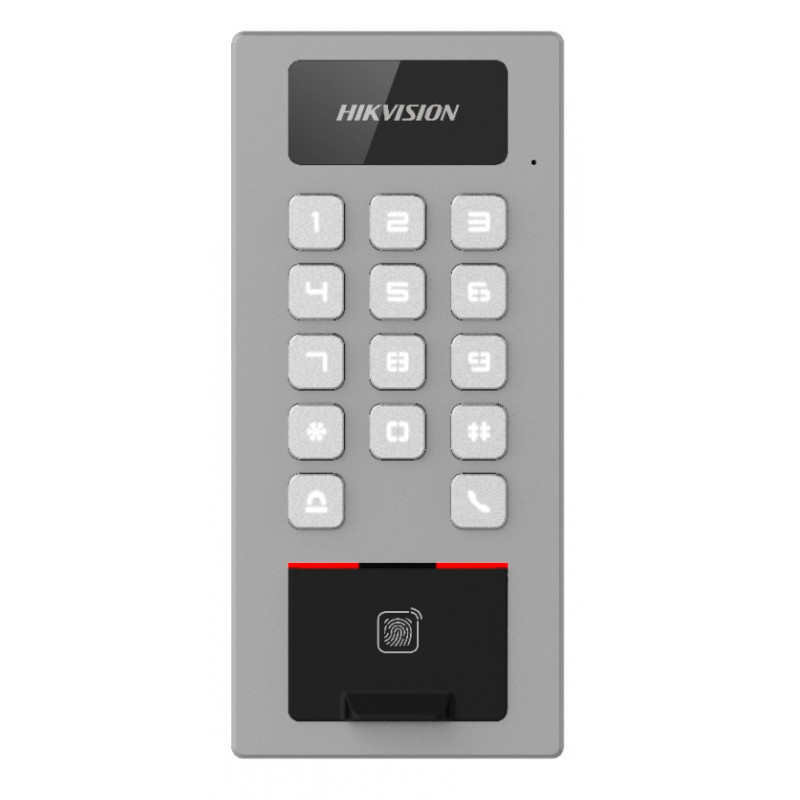

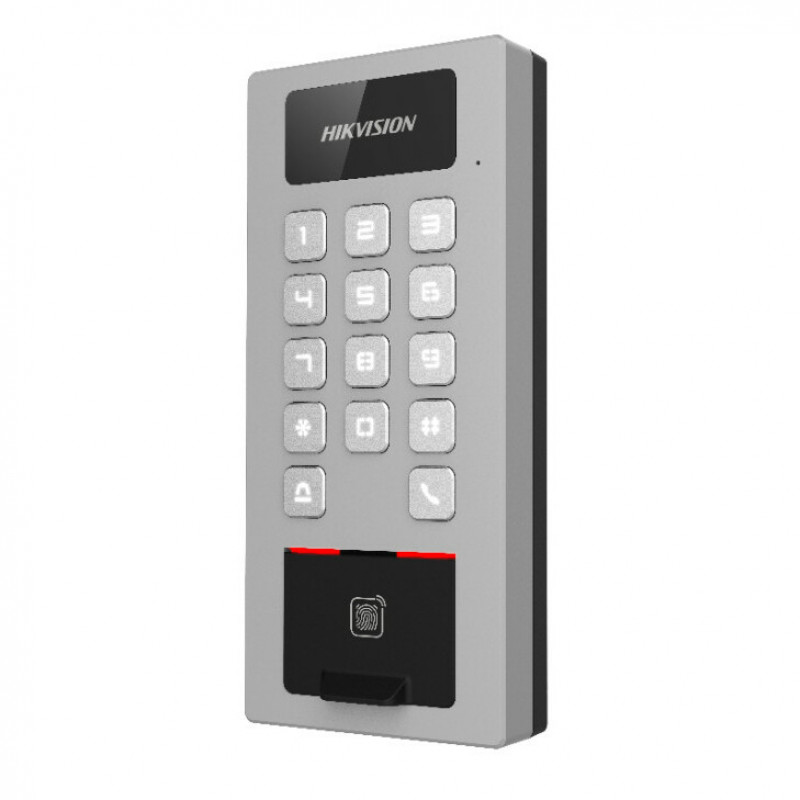

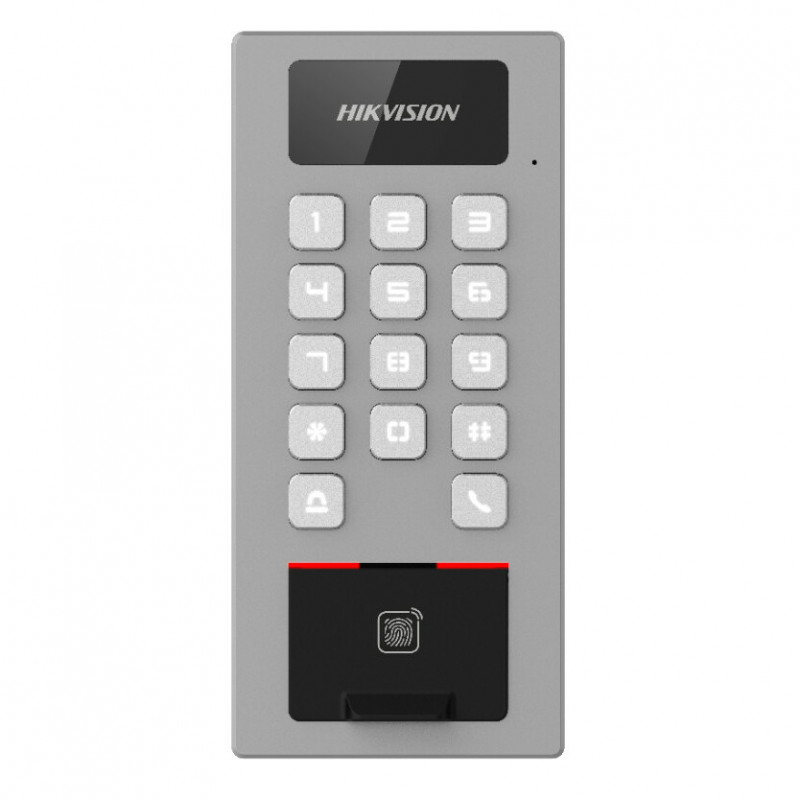

Hikvision DS-K1T502DBFWX Lector de control de accesos gris

The Hikvision DS-K1T502DBFWX is a grey access control terminal designed for secure entry management. It combines multiple authentication methods, including RFID card reading, fingerprint recognition, and a 12-button keypad, making it suitable for a variety of access control applications.

Key features

• Access control terminal with RFID, fingerprint, and keypad authentication
• 12-button keypad (0-9, *, #) plus 2 function buttons
• Built-in microphone and speaker for audio communication
• Supports TCP/IP, Wi-Fi, and Bluetooth communication
• Wiegand protocol (output only)
• SD card slot for local storage
• Durable metal and plastic construction
• Designed for operation in extreme temperatures from -40°C to 70°C

Specifications

• Brand: Hikvision
• MPN: DS-K1T502DBFWX(STD)
• Product colour: Grey
• Product type: Access Control Terminal
• Power supply: 12 ~ 24 VDC
• Power consumption: ≤ 12W
• Protection rating: IK09, IP65
• Card capacity: 100,000 RFID cards
• Event history: 300,000 events
• Operating frequency: 13.56 MHz
• Keypad: 12 buttons (0 to 9, *, #) and 2 function buttons
• Communication: TCP/IP; Wi-Fi; Bluetooth
• Supported protocols: Wiegand (output only)
• Fingerprint reader: Yes
• Card reading distance: up to 30 mm
• Input interface: 1 x exit button, 1 x door contact, 1 x tamper alarm, 1 x alarm input
• Output interface: 1 x lock relay, 1 x alarm output
• RS-485: Yes
• Audio: Built-in microphone and speaker
• SD card slot: Yes
• Operating temperature: -40°C to 70°C
• Operating humidity: 10% to 90%
• Material: Metal + plastic
• Weight: 0.65 kg

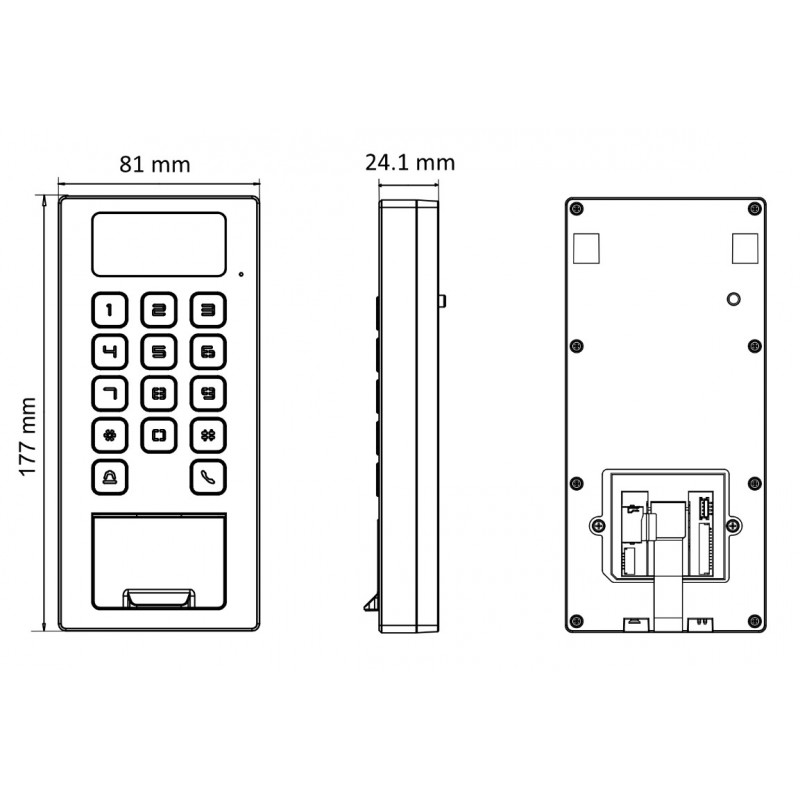

• Dimensions (H x W x D): 177 x 81 x 24.1 mm
