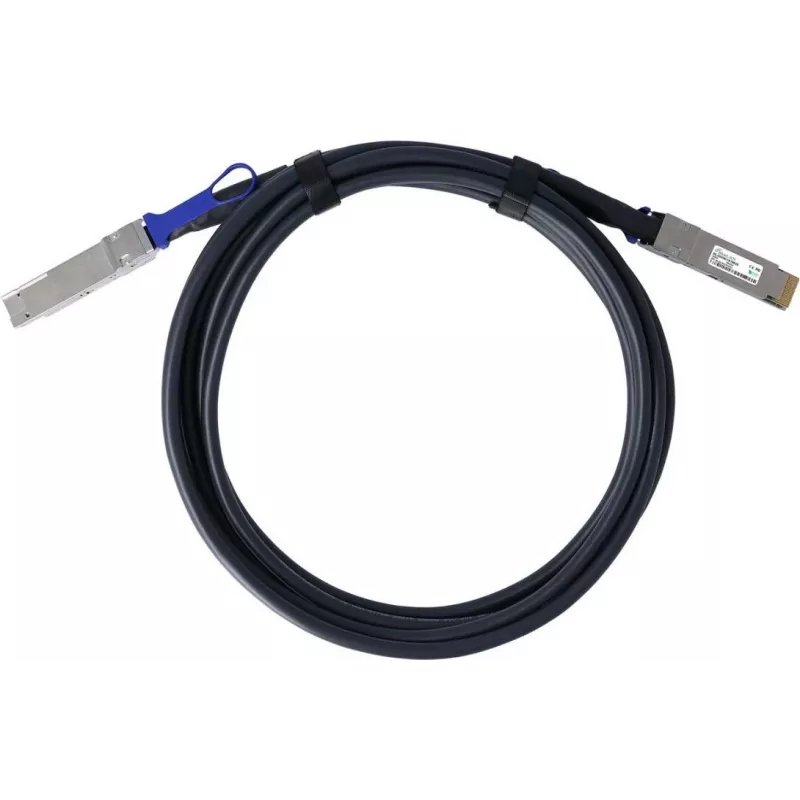

BlueLAN Cable Direct Attach de Cobre QSFP-DD Compatible Extreme Networks 400G-DACP-QSFPDD1M, 400GBASE-CR4, InfiniBand, 26 AWG, 1 metro (400G-DACP-QSFPDD1M-BL)

The BlueLAN 400G-DACP-QSFPDD1M-BL is a high-performance Direct Attach Copper (DAC) cable designed for seamless integration with Extreme Networks equipment. This passive twinax copper cable supports 400GBASE-CR4 and InfiniBand applications, delivering reliable 400 Gbps connectivity over a 1-meter length. Engineered with 26 AWG wire gauge and QSFP-DD connectors on both ends, it ensures low power consumption (<0.5W) and full RoHS compliance.

Advantages

Cost-effective alternative to OEM cables with identical performance and compatibility. Plug-and-play installation eliminates the need for configuration. Passive design ensures zero latency and minimal power draw, ideal for high-density data center environments.

Suitable for

• Data centers requiring high-speed 400G Ethernet or InfiniBand interconnects
• Extreme Networks switches, routers, and network interface cards
• Short-range rack-to-rack or server-to-switch connections

Key specifications

• Product Type: Direct Attach Copper (DAC) Cable
• Data Rate: 400 Gbps
• Protocol Standard: 400GBASE-CR4
• Connector Type: QSFP-DD to QSFP-DD
• Cable Length: 1 Meter
• Wire Gauge: 26 AWG
• Cable Type: Twinax Copper, Passive
• Compatible Vendor: Extreme Networks
• Compatible OEM Part Number: Extreme Networks 400G-DACP-QSFPDD1M
• Power Consumption: <0.5W
• Compliance: RoHS Compliant

Recommendations

For optimal performance, ensure your network equipment supports QSFP-DD form factor and 400GBASE-CR4 standard. This cable is not compatible with QSFP28 or SFP ports without proper adapters.
