BlueLAN Cable directo 100G QSFP28 1 m EQPC1HPC010C0100-BL

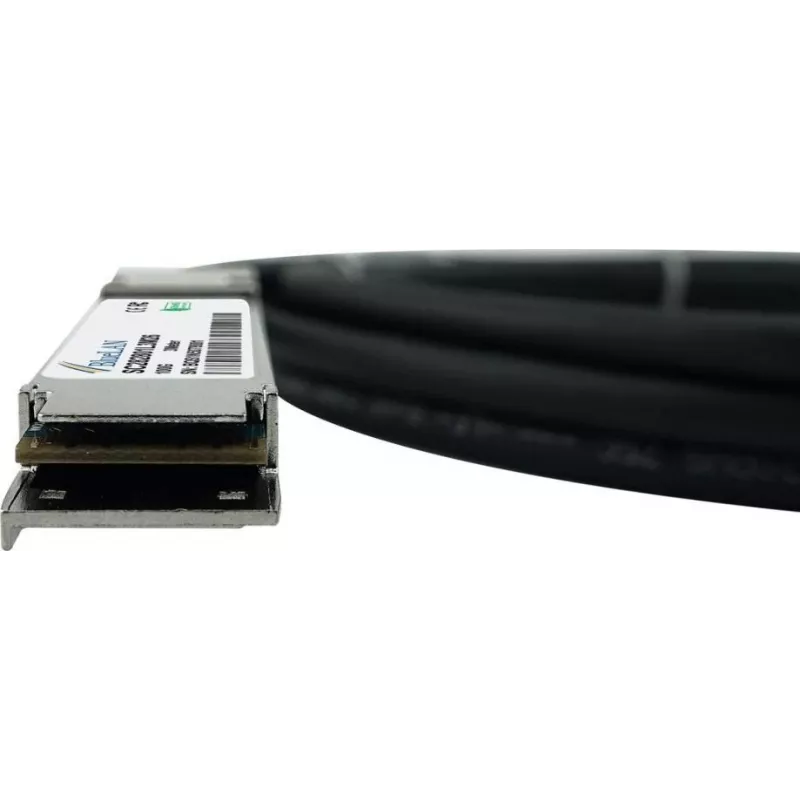

This QSFP28 Direct Attach Cable delivers 100 Gigabit Ethernet connectivity over a 1-meter passive twinax copper assembly. It provides a low-power, low-latency link for high-density data center and enterprise networking environments.

Advantages

Passive twinax design consumes less than 0.1W, reducing operational costs and thermal load. The 30AWG conductors maintain signal integrity while keeping the cable flexible for easy routing. Hot-pluggable QSFP28 connectors enable quick installation without disrupting adjacent ports.

Suitable for

• High-performance computing clusters
• Top-of-rack to server connections
• Spine-leaf data center architectures
• Enterprise core network uplinks

Key specifications

• Connector type: QSFP28 to QSFP28
• Cable length: 1 meter
• Data rate: 100GbE
• Cable type: Twinax copper, passive
• Wire gauge: 30AWG
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C
• Protocol support: IEEE 802.3bj, InfiniBand EDR

Recommendations

Ideal for short-reach 100G links within racks or adjacent racks where optical transceivers would be cost-prohibitive.
